Safety Valves

10 results

Product	Sizes	Maximum Pressure	Compliance	Mounting surface	Ambient temperature	Operating Temperature	Size	Seals	Surface protection	Installation

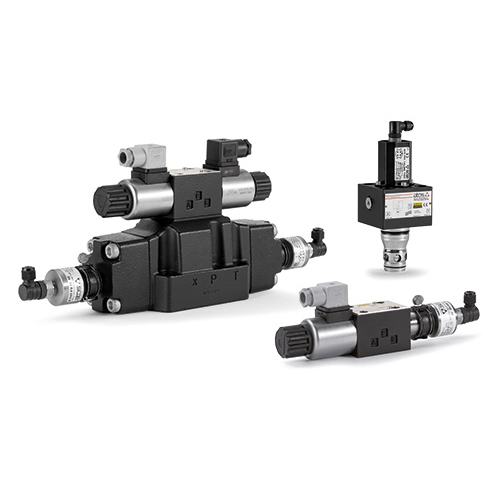

Atos DHE & DKE Type Safety Valves with FV(Inductive Position Switch) or FI(Inductive Proximity Sensor), Spool Position Monitoring, Sizes 06–10, Pmax 350 bar	06, 10	350 bar	Machine Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, RoHS, REACH	ISO 4401, Size 06 and 10	Standard: -30°C to +70°C; /PE: -20°C to +70°C
Atos HF Type Safety Valves with FV(Inductive Position Switch), Spool Position Monitoring, Modular, Size 06, Pmax 350 bar		350 bar	Machine Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, RoHS, REACH	ISO 4401, Size 06	Standard: -30°C to +70°C; /PE: -20°C to +70°C		06
Atos DPHE Type Safety Valves with FV(Inductive Position Switch), Spool Position Monitoring, Piloted, Sizes 10–25, Pmax 350 bar	10, 16, 25	350 bar	Machine Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, RoHS, REACH	ISO 4401, Sizes 10, 16, 25	Standard: -30°C to +70°C; /PE: -20°C to +70°C
Atos JO-DL Type Safety Valves with FV(Inductive Position Switch), Leak-Free Poppet Type, Sizes 3/4" to 1 5/16", Pmax 350 bar	3/4"-16 UNF, 7/8"-14 UNF, 1 5/16"-12 UNF	350 bar	Machine Directive 2006/42/CE, Low Voltage Directive 2014/35/EU, ISO 13849 category 1					NBR (standard), FKM (/PE)
Atos LIFI/LIDA/LIDAS Type Safety Valves with FV(Inductive Position Switch) or FI(Inductive Proximity Sensor), Sizes 16 to 100, Pmax 420 bar	ISO 7368 sizes 16, 25, 32, 40, 50, 63, 80, 100	Up to 420 bar	TÜV Certified, Machine Directive 2006/42/EC					NBR (standard), FKM (/PE option)
Atos CART M/PED & CART ARE/PED Type Safety Pressure Relief Valves, Sizes G1/2" to M35, Pmax 420 bar	G1/2", M14x1, M20x1.5, M33x1.5, M32x1.5, M35x1.5	Up to 420 bar	PED Directive 2014/68/EU, DEKRA certified, RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006			-20°C to +80°C (standard), -40°C to +70°C (/BT option)		NBR (standard), FKM (/PE), HNBR (/BT)	Zinc coating with black passivation, >200 hours salt spray resistance (EN ISO 9227)	Screw-in cavity installation with tamper-proof lead-sealed caps
Atos ARE/PED Type Safety Pressure Relief Valves, Sizes G1/4" to G1/2", Pmax 420 bar	G1/4", G1/2"	420 bar	PED Directive 2014/68/EU, DEKRA certified, RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006			-30°C to +80°C (standard), -40°C to +70°C (/BT option)		NBR (standard), FKM (/PE option), HNBR (/BT option)	Zinc coating with black passivation, salt spray resistance >200 hours (EN ISO 9227)	In-line with threaded ports (G1/4" and G1/2")
Atos ARAM/PED Type Safety Pressure Relief Valves, Sizes G3/4" to G1 1/4", Pmax 420 bar	G3/4", G1 1/4"	420 bar	PED Directive 2014/68/EU, DEKRA certified, RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006			-30°C to +80°C (standard), -40°C to +70°C (/BT option)		NBR (standard), FKM (/PE option), HNBR (/BT option)	Zinc coating with black passivation, >200 hours salt spray resistance (EN ISO 9227)
Atos AGAM/PED Type Safety Pressure Relief Valves, Sizes 10, 20, 32, Pmax 420 bar	10, 20, 32 (ISO 6264)	420 bar	PED Directive 2014/68/EU, DEKRA certified, RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006			-30°C to +80°C (standard), -40°C to +70°C (/BT option)		NBR (standard), FKM (/PE option), HNBR (/BT option)	Zinc coating with black passivation, salt spray resistance >200 hours (EN ISO 9227)
Atos DHE, DKE, DPHE /FV Type Safety Valves for Vertical Presses, Size 06-25, Pmax 350 bar	06, 10, 16, 25 (ISO 4401)	350 bar	Machine Directive 2006/42/EC, CE certified	ISO 4401-03, ISO 4401-05, ISO 4401-07, ISO 4401-08 standards		-20°C to +70°C (standard seals), -20°C to +80°C (/PE seals)		NBR (standard), FKM (/PE option)
