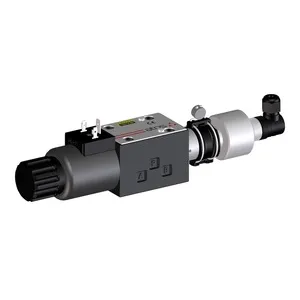

Atos DHE, DKE, DPHE /FV Type Safety Valves for Vertical Presses, Size 06-25, Pmax 350 bar

Brand :
Atos

Directional, direct, and piloted spool position safety valves with inductive position monitoring, certified to Machine Directive 2006/42/EC.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos DHE, DKE, and DPHE /FV safety valves are directional, direct, or piloted safety valves designed for vertical presses and torque bar press brakes. They feature specific spool execution and inductive position switches with double contacts (NC/NO) to ensure safe spool position monitoring. These valves prevent overpressure and enhance safety during the pressing phase by intercepting hydraulic lines to beam cylinders in emergency conditions. They comply with Machine Directive 2006/42/EC and are available in multiple configurations for varied flow and pressure requirements.

Key Features

Directional safety valves for vertical presses. Equipped with spool position monitoring, double-contact inductive switches, and certified to Machine Directive 2006/42/EC.

Applications

Designed for vertical presses and torque bar press brakes requiring precise spool position monitoring and enhanced hydraulic safety.

Downloads

Datasheet Atos DKE_DHE Series for Vertical Presses.pdf

pdf
Download

Specifications

Sizes
06, 10, 16, 25 (ISO 4401)
Maximum flow
50 l/min (Size 06), 150 l/min (Size 10), 300 l/min (Size 16), 700 l/min (Size 25)
Maximum Pressure
350 bar
Compliance
Machine Directive 2006/42/EC, CE certified
Seals
NBR (standard), FKM (/PE option)
Operating Temperature
-20°C to +70°C (standard seals), -20°C to +80°C (/PE seals)
Electrical Characteristics
Voltage: 24 VDC, Duty cycle: 100%, IP65 protection
Fluid compatibility
Mineral oils (DIN 51524), other fluids upon request
Mounting surface
ISO 4401-03, ISO 4401-05, ISO 4401-07, ISO 4401-08 standards
Options
Inductive position switches, external drain configurations, and multiple spool executions
