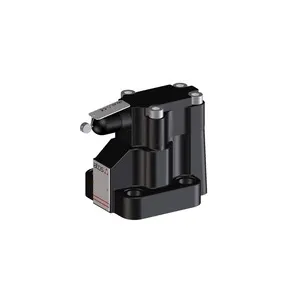

Atos AGAM/PED Type Safety Pressure Relief Valves, Sizes 10, 20, 32, Pmax 420 bar

Brand :
Atos

Piloted pressure relief valves, poppet-type, subplate-mounted, certified under PED Directive 2014/68/EU.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos AGAM/PED safety pressure relief valves are piloted, poppet-type valves designed for subplate mounting. These valves protect hydraulic circuits and accumulators by limiting system pressure and preventing overpressure. Certified by DEKRA under the PED Directive 2014/68/EU, they feature tamper-proof pressure settings and optional pilot solenoid valves for venting or multiple pressure selection. Compact and robust, they provide reliable operation in demanding industrial and mobile applications.

Key Features

Piloted pressure relief valves with poppet design, subplate mounting, PED certified, tamper-proof pressure settings, and optional solenoid valves.

Applications

Designed for industrial and mobile hydraulic systems requiring reliable pressure relief with venting or multiple pressure settings.

Downloads

Datasheet Atos AGAM_PED Series.pdf

pdf
Download

Specifications

Sizes
10, 20, 32 (ISO 6264)
Maximum flow
200 l/min (Size 10), 400 l/min (Size 20), 600 l/min (Size 32)
Maximum Pressure
420 bar
Factory Pressure Setting Range
25 to 420 bar (customer-defined, min step 1 bar)
Compliance
PED Directive 2014/68/EU, DEKRA certified, RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006
Seals
NBR (standard), FKM (/PE option), HNBR (/BT option)
Operating Temperature
-30°C to +80°C (standard), -40°C to +70°C (/BT option)
Surface protection
Zinc coating with black passivation, salt spray resistance >200 hours (EN ISO 9227)
Fluid compatibility
Mineral oils (DIN 51524), HFC fluids with specific seal options
Options
Pilot solenoid for venting or multiple pressure selection, external drain configuration
