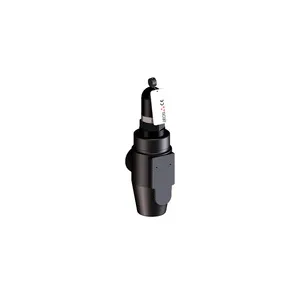

Atos ARE/PED Type Safety Pressure Relief Valves, Sizes G1/4" to G1/2", Pmax 420 bar

Brand :
Atos

Pressure relief, direct-operated, poppet-type, in-line valves, certified to PED Directive 2014/68/EU.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos ARE/PED safety pressure relief valves are direct-operated, poppet-type valves designed for in-line mounting. These valves limit system pressure and protect hydraulic components and accumulators from overpressure. Certified by DEKRA under the PED Directive 2014/68/EU, they feature tamper-proof factory-set pressure levels with lead-sealed plastic caps. Compact and reliable, they suit both industrial and mobile hydraulic systems.

Key Features

Direct-operated, poppet-type safety valves for in-line mounting. PED certified, factory pressure settings with tamper-proof seals.

Applications

Suitable for hydraulic systems requiring compact and reliable in-line pressure relief.

Downloads

Datasheet Atos ARE_PED Series.pdf

pdf
Download

Specifications

Sizes
G1/4", G1/2"
Maximum flow
60 l/min (G1/4"), 100 l/min (G1/2")
Maximum Pressure
420 bar
Factory Pressure Setting Range
25 to 420 bar (customer-defined, min step 1 bar)
Compliance
PED Directive 2014/68/EU, DEKRA certified, RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006
Seals
NBR (standard), FKM (/PE option), HNBR (/BT option)
Operating Temperature
-30°C to +80°C (standard), -40°C to +70°C (/BT option)
Surface protection
Zinc coating with black passivation, salt spray resistance >200 hours (EN ISO 9227)
Fluid compatibility
Mineral oils (DIN 51524), HFC fluids with specific seal options
Installation
In-line with threaded ports (G1/4" and G1/2")
