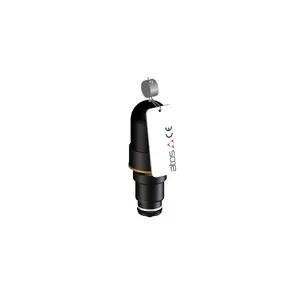

Atos CART M/PED & CART ARE/PED Type Safety Pressure Relief Valves, Sizes G1/2" to M35, Pmax 420 bar

Brand :
Atos

Pressure relief, direct-operated, poppet-type, screw-in valves, certified to PED Directive 2014/68/EU.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos CART M/PED and CART ARE/PED safety pressure relief valves are direct-operated, screw-in poppet valves designed to limit maximum system pressure and protect hydraulic circuits from overpressure. Certified by DEKRA according to the PED Directive 2014/68/EU, these valves feature factory-set pressure levels and tamper-proof lead-sealed plastic caps. The compact screw-in design reduces block dimensions while maintaining high reliability in safety-critical applications.

Key Features

Direct-operated, poppet-type safety relief valves. Screw-in design, PED certified, and factory pressure settings.

Applications

Suitable for hydraulic systems in industrial and mobile applications requiring compact, reliable pressure relief.

Downloads

Datasheet Atos CART_PED Series.pdf

pdf
Download

Specifications

Sizes
G1/2", M14x1, M20x1.5, M33x1.5, M32x1.5, M35x1.5
Maximum flow
2.5 to 150 l/min (depending on size)
Maximum Pressure
Up to 420 bar
Factory Pressure Setting Range
25 to 420 bar
Compliance
PED Directive 2014/68/EU, DEKRA certified, RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006
Seals
NBR (standard), FKM (/PE), HNBR (/BT)
Operating Temperature
-20°C to +80°C (standard), -40°C to +70°C (/BT option)
Surface protection
Zinc coating with black passivation, >200 hours salt spray resistance (EN ISO 9227)
Fluid compatibility
Mineral oils (DIN 51524), HFC fluids with specific seal options
Installation
Screw-in cavity installation with tamper-proof lead-sealed caps
