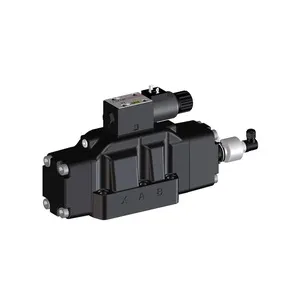

Atos DPHE Type Safety Valves with FV(Inductive Position Switch), Spool Position Monitoring, Piloted, Sizes 10–25, Pmax 350 bar

Brand :
Atos

Directional, piloted safety valves with spool position monitoring, subplate mounting, AC/DC solenoids, cURus certified.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos DPHE/FV safety valves are pilot-operated directional valves equipped with inductive position switches for spool position monitoring. Designed for compliance with Machine Directive 2006/42/EC, these valves ensure reliable operation in safety-critical hydraulic systems. Available in sizes 10, 16, and 25, they provide high flow rates and are certified by TÜV and cURus for industrial and mobile applications.

Key Features

Piloted directional safety valves with spool position monitoring. Sizes 10–25, AC/DC solenoids, ISO 4401 mounting.

Applications

Suitable for hydraulic systems in presses, press brakes, and other safety-critical industrial applications.

Downloads

Datasheet Atos DPHE Series.pdf

pdf
Download

Specifications

Sizes
10, 16, 25
Maximum flow
160 l/min (size 10), 300 l/min (size 16), 700 l/min (size 25)
Maximum Pressure
350 bar
Monitoring Options
FV: Inductive position switch (double contact, NO and NC wiring)
Solenoid Options
AC or DC supply
Compliance
Machine Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, RoHS, REACH
Mounting surface
ISO 4401, Sizes 10, 16, 25
Ambient temperature
Standard: -30°C to +70°C; /PE: -20°C to +70°C
Fluid compatibility
Mineral oils (DIN 51524) and synthetic hydraulic fluids
Weight
DPHE-10: 7.2–7.9 kg, DPHE-16: 10.1–10.9 kg, DPHE-25: 17.7–18.4 kg
