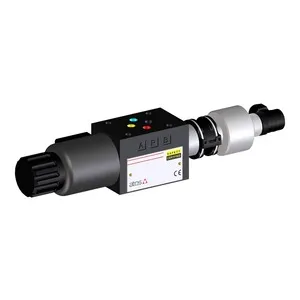

Atos HF Type Safety Valves with FV(Inductive Position Switch), Spool Position Monitoring, Modular, Size 06, Pmax 350 bar

Brand :
Atos

Directional, direct-operated safety valves with spool position monitoring, modular design, AC/DC solenoids, cURus certified.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos HF/FV safety valves are direct-operated, modular directional valves designed to ensure hydraulic system safety. Equipped with inductive position switches for spool position monitoring, these valves comply with Machine Directive 2006/42/EC. Available in size 06, they support compact stack mounting for functional circuits. Certified by TÜV and cURus, HF/FV valves are reliable for safety-critical applications.

Key Features

Modular directional safety valves with spool position monitoring. Size 06, AC/DC solenoids, ISO 4401 mounting.

Applications

Suitable for hydraulic systems in press brakes, presses, and safety-critical industrial applications.

Downloads

Datasheet Atos HF Series.pdf

pdf
Download

Specifications

Size
06
Maximum flow
60 l/min
Maximum Pressure
350 bar
Monitoring Options
FV: Inductive position switch
Solenoid Options
AC or DC supply
Compliance
Machine Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, RoHS, REACH
Mounting surface
ISO 4401, Size 06
Ambient temperature
Standard: -30°C to +70°C; /PE: -20°C to +70°C
Fluid compatibility
Mineral oils (DIN 51524) and synthetic hydraulic fluids
Weight
2.5–3.2 kg (depending on solenoid configuration)
