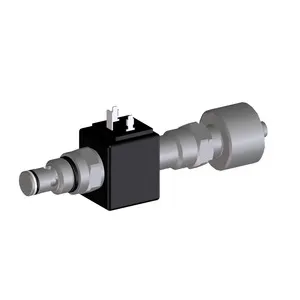

Atos JO-DL Type Safety Valves with FV(Inductive Position Switch), Leak-Free Poppet Type, Sizes 3/4" to 1 5/16", Pmax 350 bar

Brand :
Atos

Directional, piloted safety valves with leak-free poppet position monitoring, screw-in type, DC solenoids, TÜV certified.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos JO-DL/FV safety valves are directional, piloted, and leak-free poppet-type valves for hydraulic systems. These screw-in cartridge valves come with inductive position switches to monitor poppet position, ensuring reliable operation in safety-critical applications. They comply with Machine Directive 2006/42/CE and are certified by TÜV for use in industrial and mobile hydraulics.

Key Features

Leak-free, screw-in directional safety valves with poppet position monitoring. Sizes 3/4" to 1 5/16", DC solenoids, TÜV certified.

Applications

Suitable for hydraulic systems in safety-critical applications requiring leak-free directional valves.

Downloads

Datasheet Atos JO-DL Series.pdf

pdf
Download

Specifications

Sizes
3/4"-16 UNF, 7/8"-14 UNF, 1 5/16"-12 UNF
Maximum flow
40 l/min (size 3/4"), 75 l/min (size 7/8"), 300 l/min (size 1 5/16")
Maximum Pressure
350 bar
Monitoring Options
FV: Inductive position switch (NC/NO double contact)
Solenoid Options
12 VDC, 24 VDC
Compliance
Machine Directive 2006/42/CE, Low Voltage Directive 2014/35/EU, ISO 13849 category 1
Leakage
Less than 5 drops/min at 350 bar
Fluid compatibility
Mineral oils (DIN 51524), HFC fluids with NBR seals
Seals
NBR (standard), FKM (/PE)
Weight
JO-DL-4: 0.5 kg, JO-DL-6: 0.5 kg, JO-DL-10: 0.7 kg
