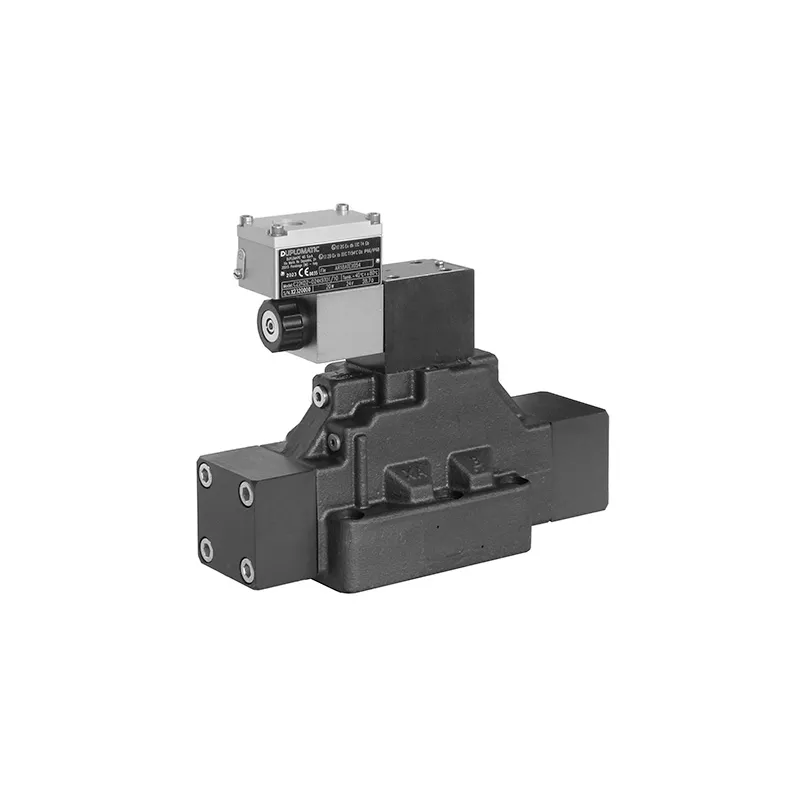

Duplomatic Explosion Proof Proportional 3-Port Pressure Reducing Valve, Pilot Operated Compliant With ATEX, IECEx, INMETRO, PESO, Type DZCE*K*

Brand :
Duplomatic

Explosion proof proportional 3-port pressure reducing valves, pilot operated compliant with ATEX, IECEx, INMETRO, PESO

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The DZCEK series are pilot-operated, three-port pressure-reducing proportional valves, designed for subplate mounting. This explosion-proof version is certified in accordance with ATEX, IECEx, INMETRO, or PESO standards, making it suitable for use in potentially explosive atmospheres, both in surface plants and underground mining environments. A version for low ambient temperatures, down to –40 °C, is also available, ensuring dependable operation even in extreme environmental conditions. These three-port valves reduce pressure from pressure port P to actuator port A, and allow return flow from A to T when the downstream pressure (at port A) exceeds the set value — ensuring overpressure protection. Valves are available with 12 V or 24 V supply, and can be equipped with either metric or NPT threaded ports. Cable glands are sold separately. The valve can be driven by a current-controlled power supply or via an electronic amplifier card, which must be ordered separately and installed in a separate cabinet outside the hazardous area.

Downloads

Datasheet_DZCE_K_.pdf

pdf
Download

Specifications

Type
Explosion-proof proportional 3-port pressure reducing valve, pilot operated
Series
DZCE*K*
Mounting
Subplate, ISO 4401-05, 07, 08 (CETOP)
Operating principle
Pilot operated, 3-port pressure reduction, proportional control
Maximum operating pressure
350 bar
Max flow
150 l/min (P05), 300 l/min (05), 500 l/min (07/08)
Pressure Reduction
Port P to actuator A; overpressure protection by A to T
Step Response
See datasheet point 5
Hysteresis
<6% of p max (PWM 200 Hz)
Repeatability
<±2% of p max
Fluid Viscosity Range
10 ÷ 400 cSt
Fluid Contamination
ISO 4406:1999 class 18/16/13
Recommended viscosity
25 cSt
Temperature Range
See data sheet 02 500
Certification
ATEX, IECEx, INMETRO, PESO
Seals
N = NBR, V = FPM, NL = low temp
Voltage
Choose the voltage require to operate the valve.AC stands for alternating current, DC for direct current.
12V DC, 24V DC
Cable gland
Metric or NPT, ordered separately
