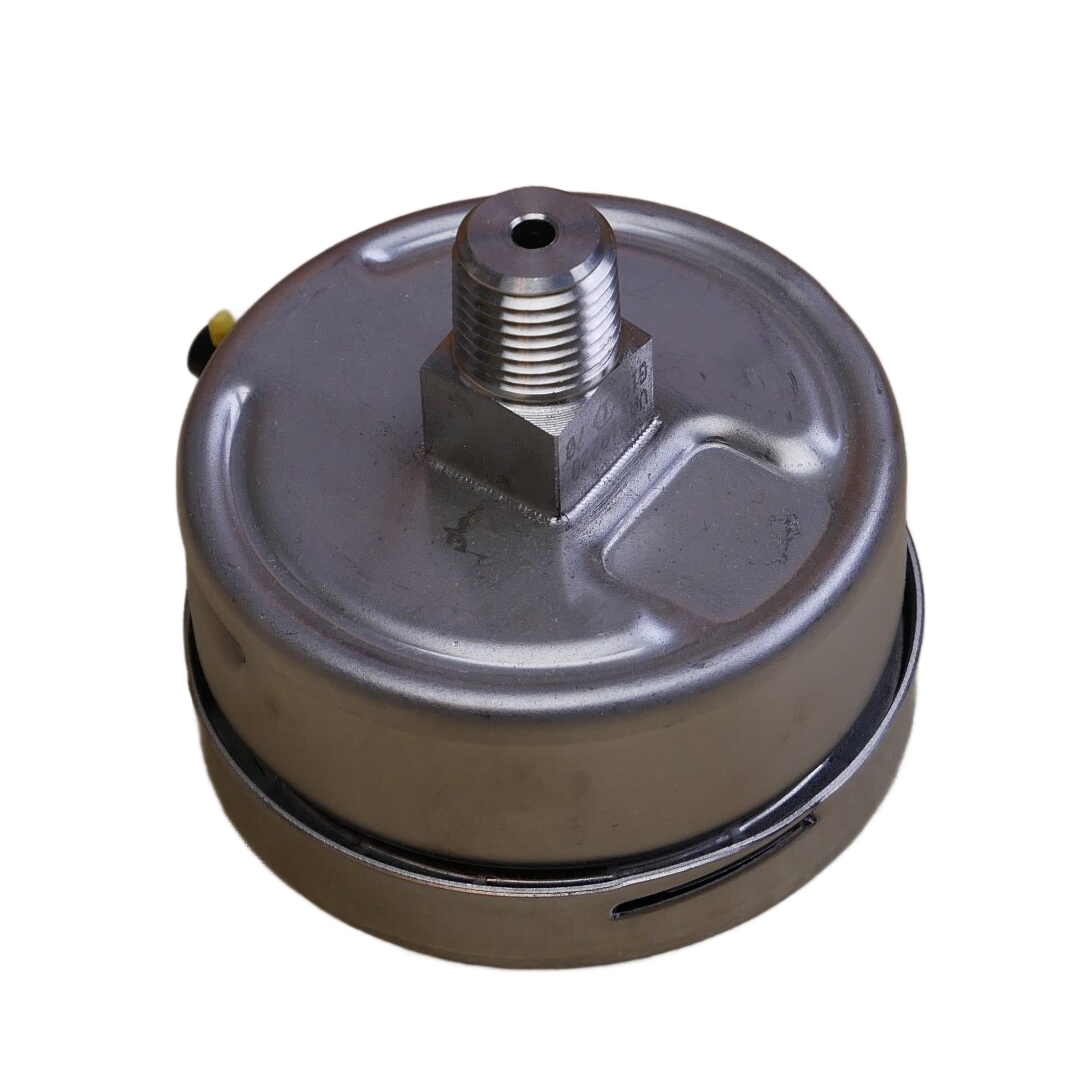

Wika Bourdon Tube Pressure Gauge Model 233.50, 0…6 Bar with Glycerine Case Filling, 63mm(2.5")Dial, 1/4" NPT Connection, Center Back Mount, Stainless Steel Built, Class 1.6 Accuracy, 316 SS Pressure Element, Polycarbonate Window, 9166784

Part Number : 9166784

Brand :
WIKA

WIKA Model 233.50 Bourdon Tube Pressure Gauge offers rugged 316 stainless steel construction, IP65/NEMA 4X weather protection, and glycerine filling for enhanced durability in dynamic conditions. Suitable for pressures up to 1,600 bar with multiple mounting and connection options.

View all

KWD 13.000

Quantity
Description
Specifications
Downloads
Related products

Description

The WIKA Model 233.50 is a high-performance Bourdon tube pressure gauge engineered for process industries operating in aggressive and demanding environments. Featuring a stainless steel case and 316 stainless steel pressure elements, it ensures long-term reliability for both gaseous and liquid media. With scale ranges up to 1,600 bar (20,000 psi) and pressure elements designed as helical or C-shaped depending on the range, it provides precise measurement across applications. This model supports ¼" or ½" NPT connections and offers flexible mounting options including lower, lower back, and center back mounts. Its glycerine-filled case ensures vibration damping, while IP65 / NEMA 4X-rated weather protection makes it ideal for both indoor and outdoor use. Integrated QR codes on the dial allow easy access to technical documentation and traceability data

Key Features

• Excellent load cycle stability and shock resistance

• With case filling (model 233.50) for applications with high dynamic pressure loads and vibrations

• Completely from stainless steel

• Scale ranges from 0 ... 0.6 to 0 ... 1,600 bar or 0 ... 10 to 0 ... 20,000 psi

• QR code on dial links to instrument-specific information

Applications

• For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

• Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology

• Machine building and general plant construction

Downloads

Datasheet Wika-9166784.pdf

pdf
Download

Datasheet Bourdon tube pressure gauge 233.50.pdf

pdf
Download

Wika Limit indicator option for models 232.50_233.50.pdf

pdf
Download

Wika Operating Instruction model 233.50-1.pdf

pdf
Download

Wika Operating Instruction model 233.50-2.pdf

pdf
Download

Specifications

Series
233.50
Measuring System
stainless steel
Case filling
with
Nominal size
063 mm
Scale range
0...6 bar
Process Connection
1/4 NPT
Connector location
center back mount
Window
polycarbonate
Pointer
standard pointer
Accuracy class
class 1.6
Material pressure element
Measuring System 316 SS
Case filling fluid
glycerine
Ingress Protection
IP 65
Permissible medium temperature
+ 100 °C
Permissible ambient temperature
-20 … +60 °C
Pressure Gauge Standard
International (standard Europe)
Stop pin
at zero
