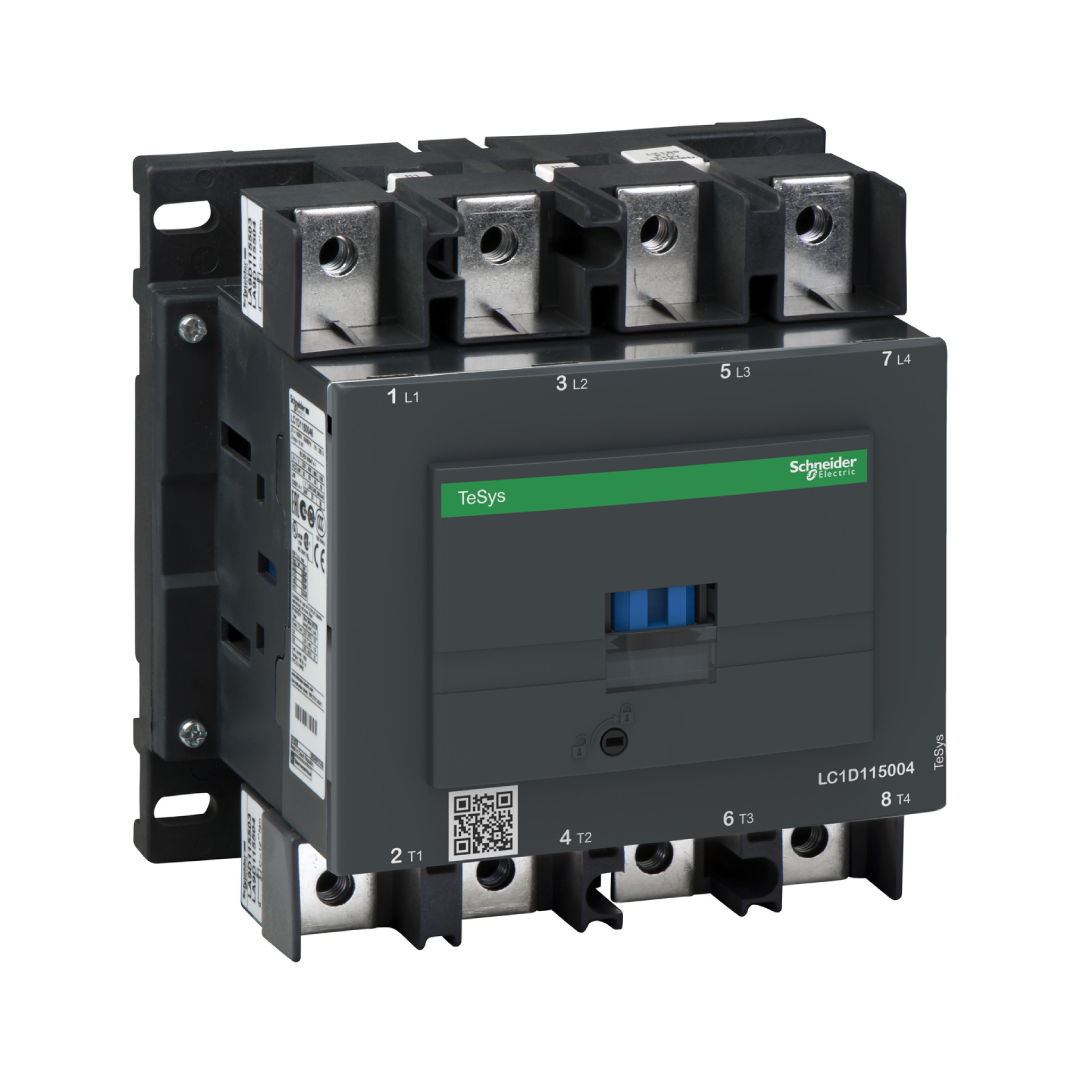

Schneider Electric TeSys D Contactor, 4P(4 No), 440V, 200A - 230V AC 50/60 Hz Coil, LC1D115004P7

Part Number : LC1D115004P7

Brand :
Schneider Electric

Schneider electric, coil voltage 230 v,ac contact configuration 4no, contact rating 200 a, dimensions 6.22 in h x 5.91 in w x 5.20 in d, enclosure type ip20. This Schneider Electric TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 230 V AC 50/60 Hz coil, LC1D115004P7 ensures optimal functionality, durability, and ease of use, making it a preferred choice in industrial settings.

View all

KWD 533.000

Quantity
Description
Specifications
Downloads
Related products

Description

Schneider electric lc1d115004p7, contactor, lc1d series, 230 vac coil, 200 a maximum load current, 4 pole, 50/60 hz frequency, 24 w wattage, 4no contact configuration, 200 a contact, power factor: 280 to 350, screw clamp connection, 6.22 in h x 5.91 in w x 5.20 in d size, screw clamp terminal, ip20 enclosure, 2400 cycles operating cycles, -40 to 140 deg f operating, front/plate rail mounting, 6.22 in h x 5.91 in w x 5.20 in d dimensions. This Schneider Electric TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 230 V AC 50/60 Hz coil, LC1D115004P7 ensures optimal functionality, durability, and ease of use, making it a preferred choice in industrial settings.

Features

- The TeSys D contactors and overload relays are the largest selling line of contactors and starters in the world

- They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry

- TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps

- Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications

- New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil

- TeSys D Green contactor simplify your maintenance services with 90% less references needed.TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50

- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR

- Three levels of ratings: Available at 100 kA on systems with fuses, up to 600 volts

- Available at 65 kA on systems with circuit breakers, up to 480 volts and up to 32 amps

- Available at 100 kA on systems with circuit breakers, up to 480 volts and greater than 32 amps

- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets

- Simple to select the right product

- 3-pole and 4-pole contactor versions available

- All contactors include built-in auxiliary contacts

- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings

- TeSys D contactors can be panel mounted with screws or DIN rail mounted

- Easily installed accessories

- Auxiliary contact blocks with serrated wiping action

- Front mount dust tight auxiliary contact blocks

- Pneumatic time delay blocks

Downloads

Datasheet LC1D1150046P7.pdf

pdf
Download

TeSys Instruction Sheet.pdf

pdf
Download

Product Environmental Profile.pdf

pdf
Download

Specifications

Coil Voltage
230 VAC
Contact Configuration
4NO
Contact Rating
200 A
Dimensions
6.22 in H x 5.91 in W x 5.20 in D
Enclosure Type
IP20
Frequency Rating
50/60 Hz
Number of Poles
4
Operating Cycles
2400 Cycles
Operating Temperature
-40 to 140 deg F
Series
LC1D Series
Size
6.22 in H x 5.91 in W x 5.20 in D
Terminal Type
Screw Clamp
Type
Contactor
Wattage
24 W
Connection type
Types of connection used for the valve ports.
Screw Clamp
Country of origin
CZ
Mounting Type
Front/Plate Rail
Power factor
280 to 350 VA
Manufacturer Name
Schneider Electric
UNSPSC
39121529
UPC
3389110053074
