Rexnord Thomas Disc Couplings

Part Number : XTSR52, XTSR71, XTSRLS, XTSRS, XTSRGA, AMR, CMR, Series54RD, Series54RDG, DBZ, DBZ-A, DBZ-B, Series52, Series71

Brand :
Rexnord

Thomas Disc Couplings are torsionally rigid, all-metal flexible couplings that require no regular maintenance or lubrication. Angular, parallel, and axial misalignment are accommodated through flexible disc packs which can be visually inspected without disconnecting equipment. Thomas couplings are engineered for infinite life and optimized for motor, engine, and turbine-driven applications. With over 100 years of coupling manufacturing history and Rexnord’s dedication to conservative design practices, the Thomas brand is trusted for its reliability on the most critical power train systems.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Rexnord's Thomas Disc Couplings are engineered for infinite life and optimized for motor, engine, and turbine-driven applications. They feature an all-metal construction providing minimal backlash and low restoring forces, require no lubrication, and allow for visual inspection of disc packs without disconnecting equipment. These couplings compensate for angular, parallel (radial), and axial misalignment. The Thomas series offers more than 25 standard sizes with close-coupled, spacer, and floating shaft designs. Rexnord Thomas Disc Couplings include models such as Series 52 (Non-adapter style spacer), Series 71 (Adapter-style spacer, 4- and 6-bolt versions), and Series 71-8 (8-bolt version). Applications include general-purpose and critical ANSI/API process pumps, compressors, and fans. Additional models include XTSR52, XTSR71, XTSRLS (Long span/floating shaft), and XTSRGA (Gear coupling replacement). Suitable for motor, engine, and turbine-driven applications, offering compliance with API 610 and API 671 standards.

Features & Benefits

• All-metal construction providing minimal backlash and low restoring forces • Require no lubrication • Visual inspection of disc packs without need to disconnect equipment • Inherently balanced as manufactured, delivering low vibration even at maximum allowable speeds • Compensate for angular, parallel (radial), and axial misalignment • Application flexibility – More than 25 standard sizes with close-coupled, spacer, and floating shaft designs • API 610 / ISO 14691 & API 671 / ISO 10441 compliant designs • Engineered-to-order capabilities for custom features or special requirements

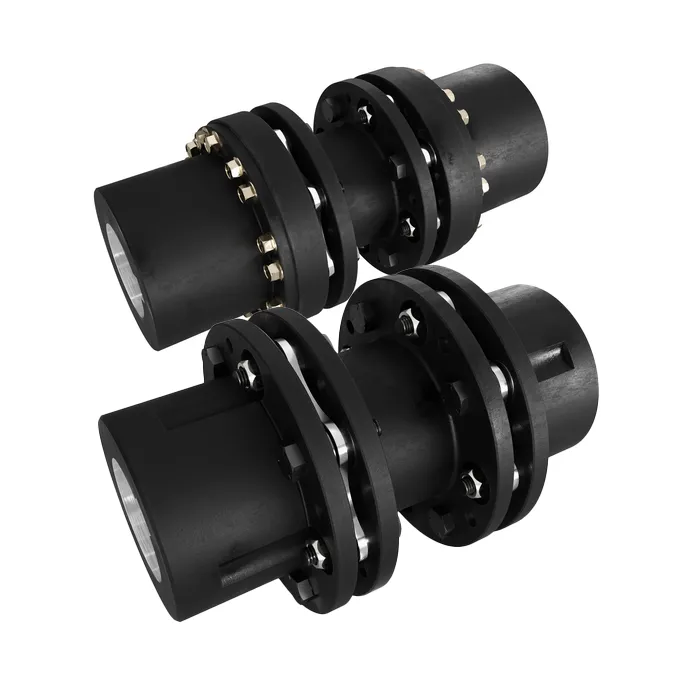

Thomas Series XTSR Couplings

Optimized coupling design delivering low weight and high torque density for general purpose and critical ANSI/API process pump, fan, and compressor drive applications. The modularity of XTSR platform extends across various models to offer broad application coverage: • XTSR52: Non-adapter style spacer model enhances legacy Series 52 • XTSR71: Adapter-style spacer model enhances legacy Series 71 • XTSRLS: Long span / floating shaft • XTSRS: Single flexing • XTSRGA: Long span gear coupling replacement

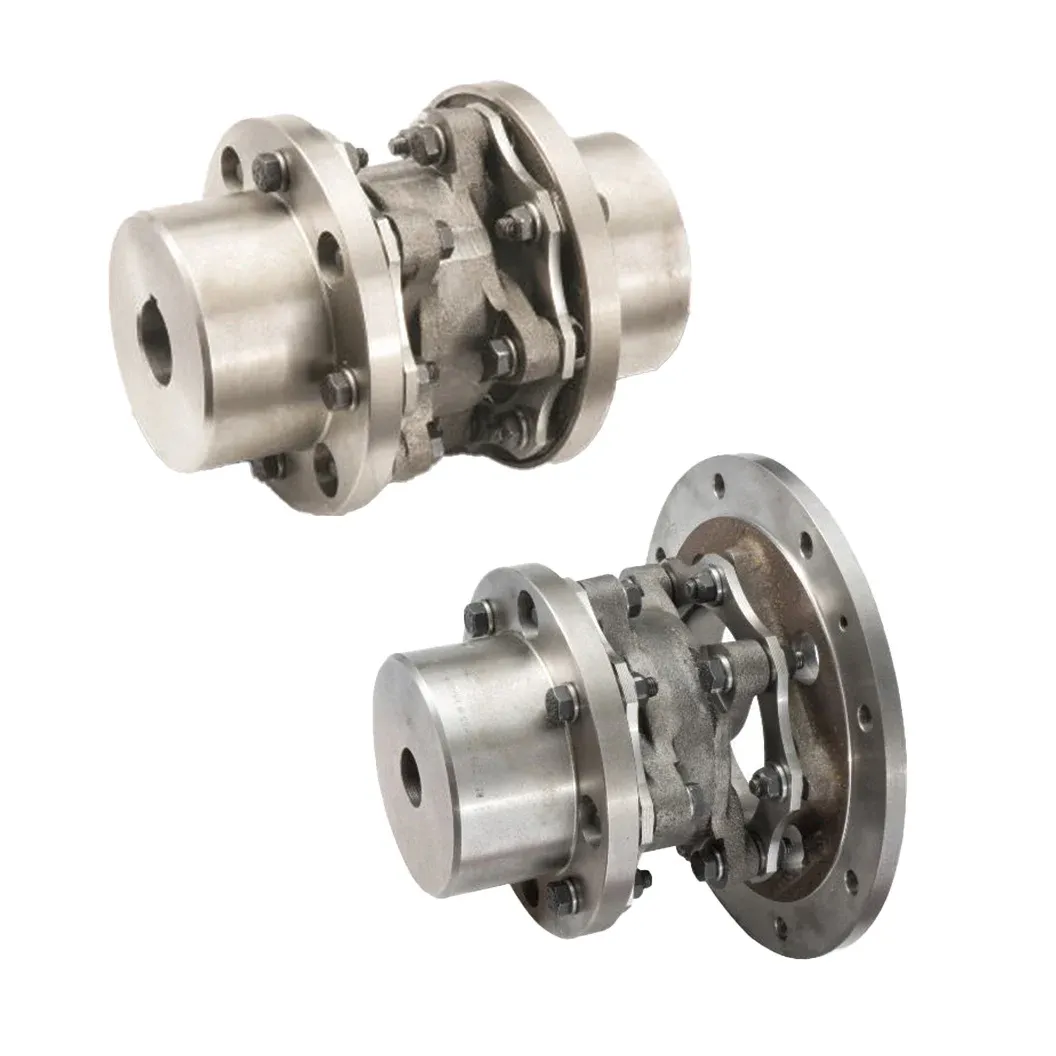

Thomas AMR & CMR Heavy-Duty Couplings

Ideal solution for applications with high starting torque, shock loads, and torque reversals. Typically used with engine or motor-driven reciprocating gas compressors. • AMR: Shaft-to-shaft connection • CMR: Shaft-to-flywheel connection

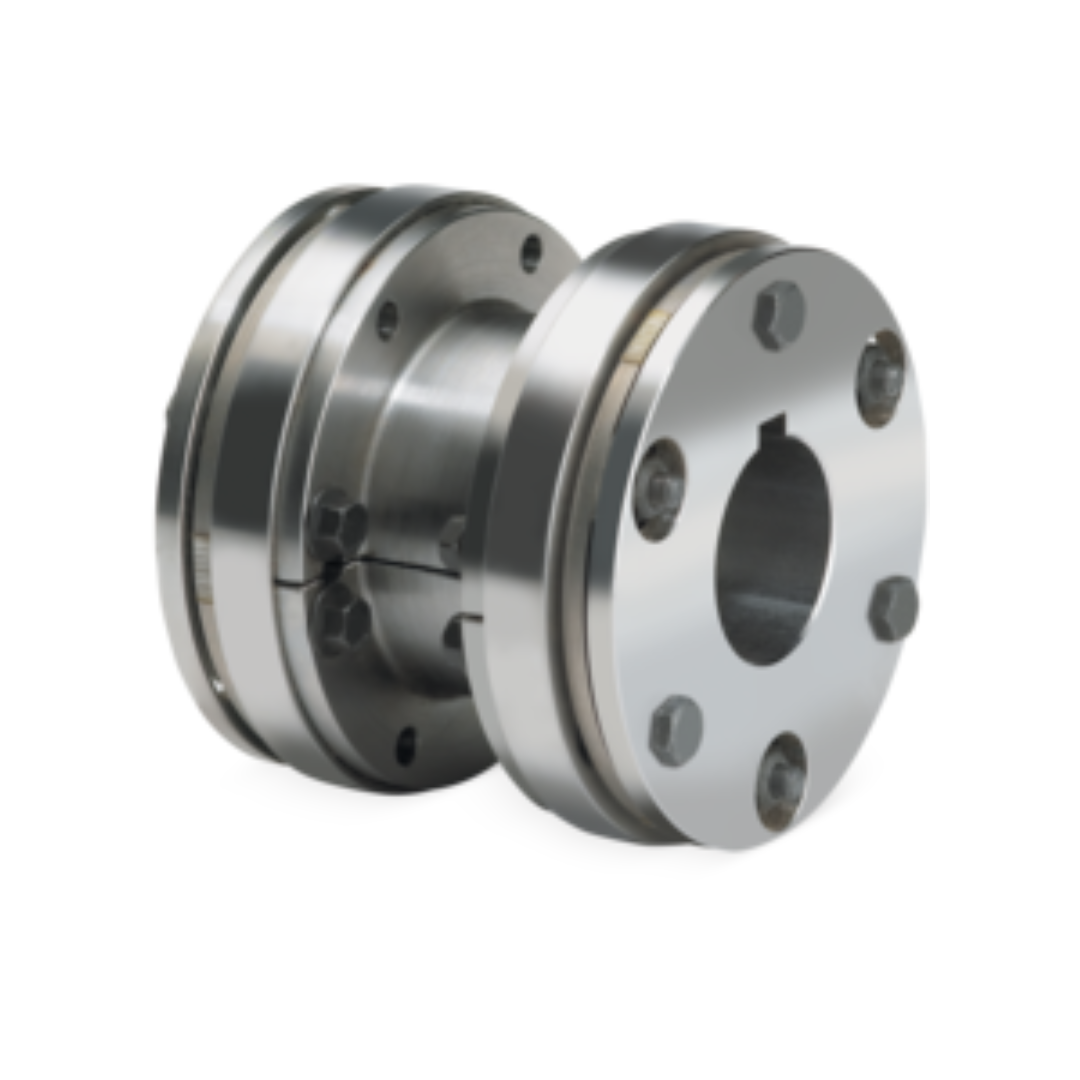

Thomas Series 54 Close-Coupled Couplings

Maintenance-free solution for close-coupled applications where gear and grid style couplings are commonly used. • Series 54RD: Axially-split center spacer permits “replace-in-place” functionality • Series 54RDG: Axially-split center spacer with piloted adapter feature

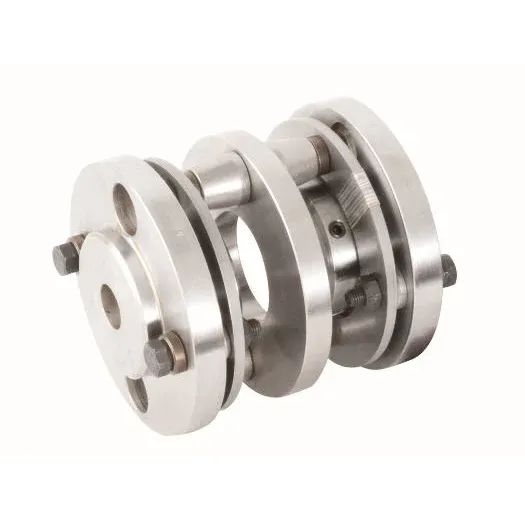

Thomas DBZ Couplings

General purpose couplings used when shaft-to-shaft spacing is minimal. • DBZ: Two inverted hubs for minimal shaft-to-shaft spacing • DBZ-A: One extended hub to accommodate tapered bores • DBZ-B: Two extended hubs for larger shaft gaps

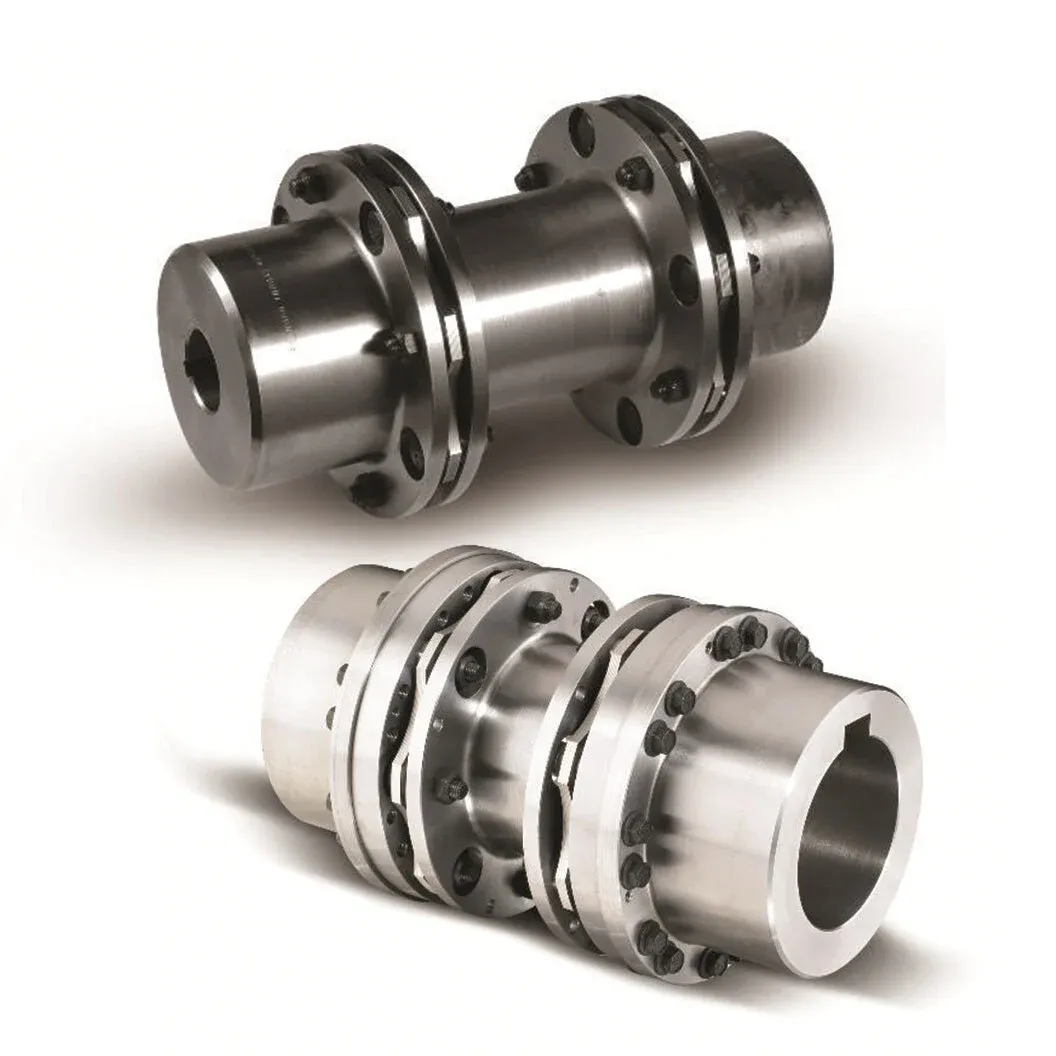

Thomas Legacy Series Spacer Couplings

Industry-proven spacer coupling solutions for general purpose and critical ANSI/API process pump & compressor drive applications. • Series 52: Non-adapter style spacer model • Series 71: Adapter-style spacer model, 4- & 6-bolt versions • Series 71-8: Adapter-style spacer model, 8-bolt version

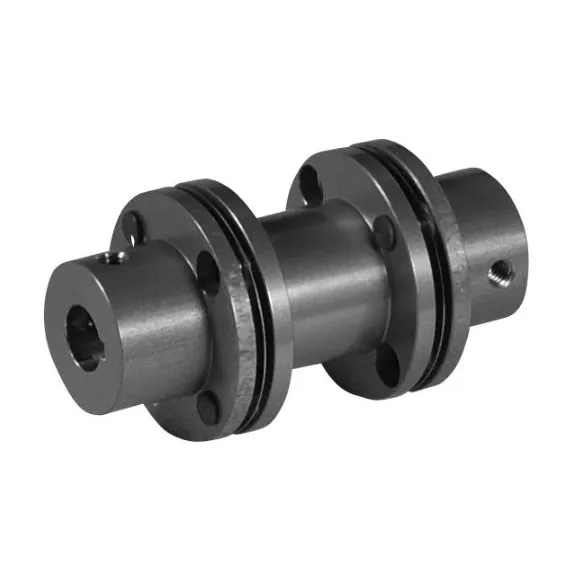

Thomas C-Style Miniature Couplings

Range of high precision couplings for low torque applications.

Downloads

538-120_Thomas-Type-54-RDG,Sizes-125-925-Disc-Couplings_Manual.pdf

pdf
Download

538-210_Thomas-Series-52,Sizes-125-925-Disc-Couplings_Installation-Manual.pdf

pdf
Download

538-220_manual.pdf

pdf
Download

CP1-007-G_MA4-XTSRLS-Coupling-Brochure_Web.pdf

pdf
Download

CPE5-014_MA4_ProductSheet.pdf

pdf
Download

Specifications

Certifications
API 610, API 671
Torque Capacity
Up to 17 million in-lbs (1,924,000 Nm)
Speed Capacity
Suitable for speeds exceeding 30,000 RPM
Compliance Standards
Meets API 610, API 671, and ISO 10441 specifications
Misalignment Accommodation
Handles angular, parallel (radial), and axial misalignments
Design Variants
Available in close-coupled, spacer, and floating shaft designs
