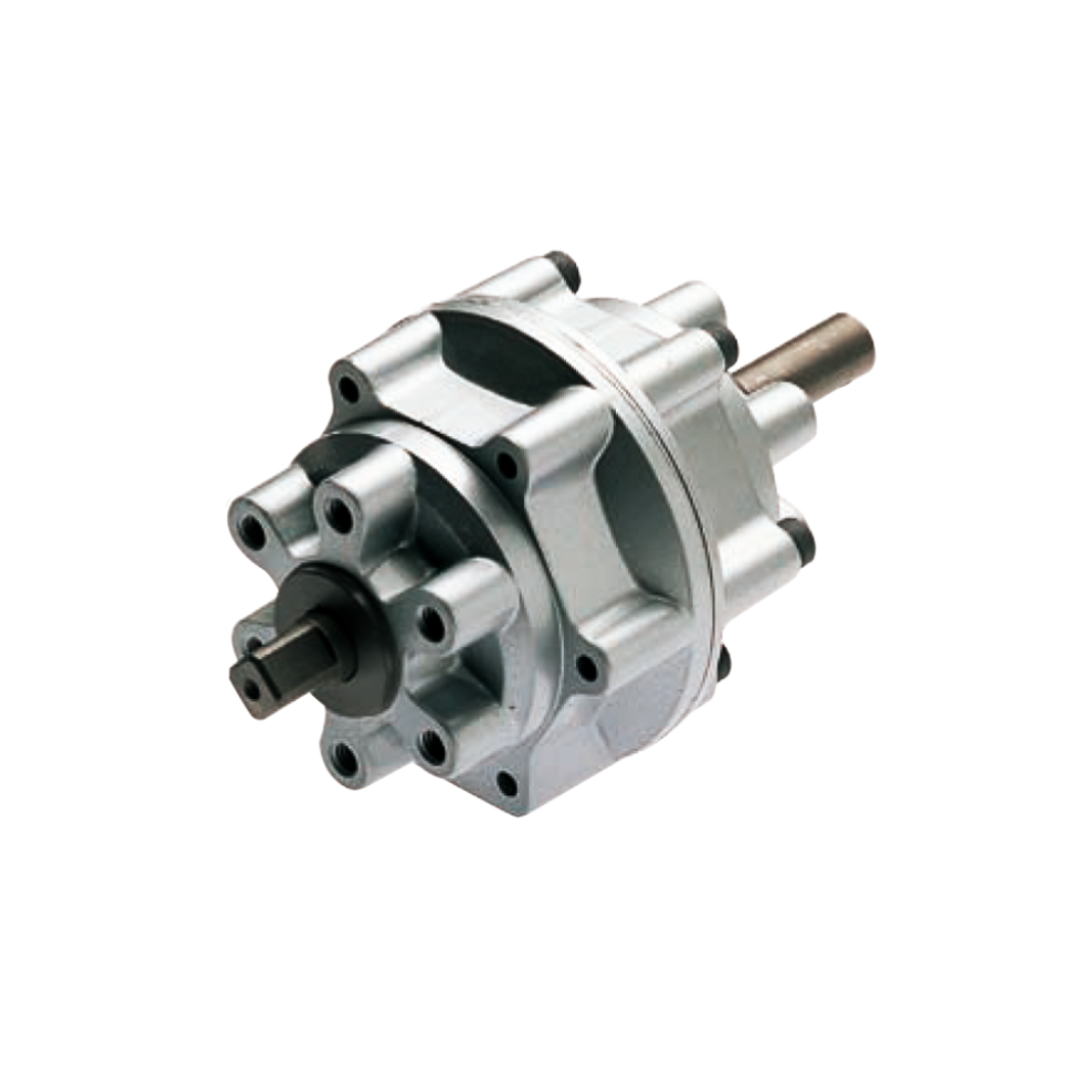

IMI Norgren Rotary Vane Double Acting Actuator, Fixed Angle, 34.5 Nm Torque, 180° Rotation, M/60287/180

Part Number : M/60287/180

Brand :
IMI Norgren

The IMI Norgren rotary actuator M/60287/180 delivers 34.5 Nm torque with 180° rotation. Compact, double-acting and equipped with buffer cushioning, it is built with a durable aluminium alloy body.

View all
Quantity



Description
Specifications
Downloads
Related products

Description

The IMI Norgren M/60287/180 rotary vane actuator is designed for efficient rotary motion control in pneumatic systems. It provides a fixed 180° rotation angle with a high torque of 34.5 Nm, ensuring precise and powerful actuation. Built with a robust aluminium alloy body and NBR seals, it operates reliably within pressures of 2–10 bar and temperatures ranging from -5°C to 60°C. The M/60287/180 model features a double-acting mechanism with buffer cushioning, making it ideal for demanding industrial environments requiring controlled, high-torque rotary movement.

Downloads

Datasheet IMI Norgren M_60285_180.pdf

pdf

Specifications

Operation
The operating principle of the solenoid valve.
Double Acting
Rotation Angle
180°
Torque at 6 bar
34.5 Nm
Port Size
G3/8
Operating pressure
2 – 10 bar (29 – 145 psi)
Operating Temperature
-5°C to +60°C
Body Material
Aluminium Alloy
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR
Cushioning
Buffer Cushioning
Weight
3.7 kg
Rotation Tolerance
0° to +3°
Shaft Material
Steel
Shaft Bearing
Sintered Bronze
