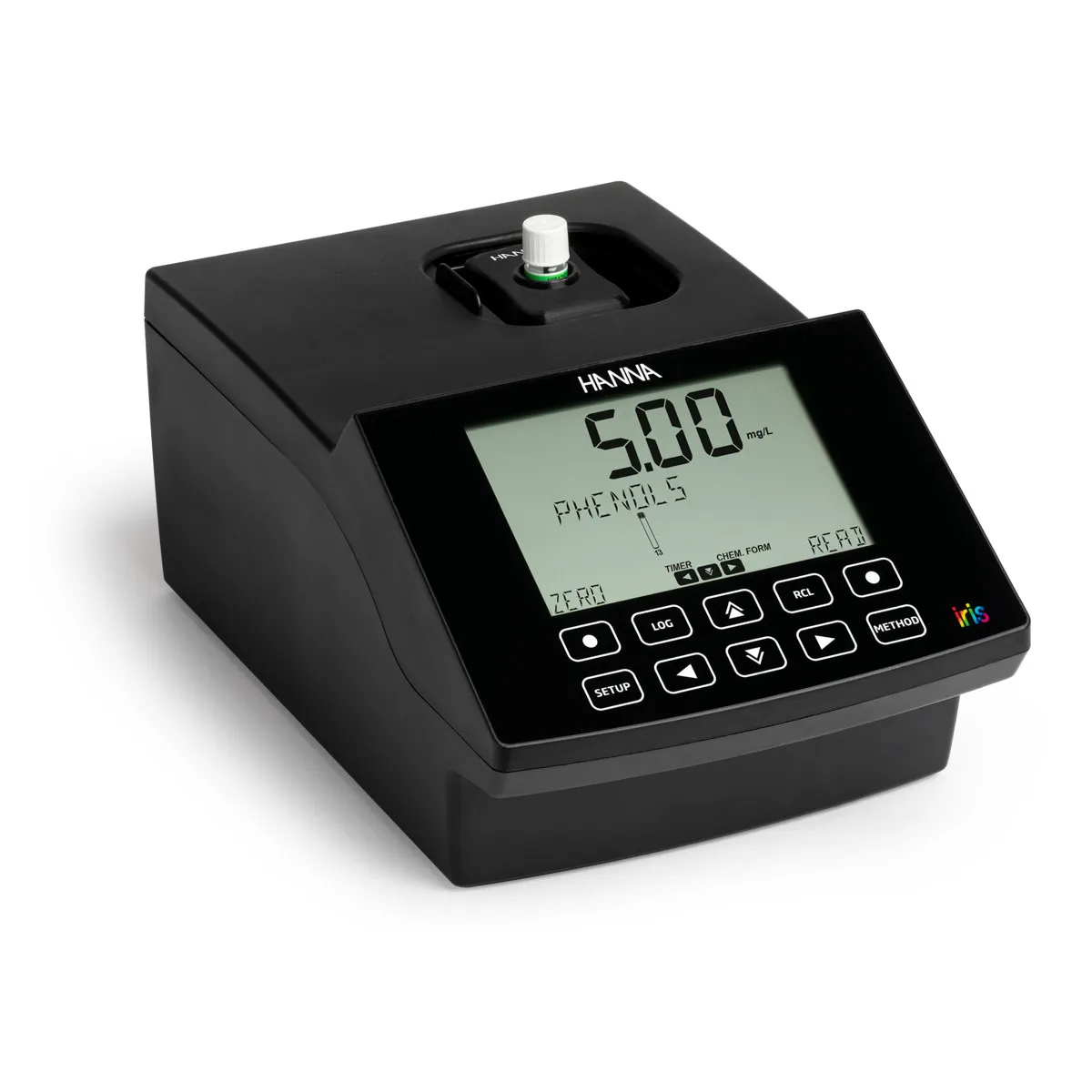

Hanna Instruments Iris visible Spectrophotometer with Barcode Reader, HI802

Part Number : HI802

Brand :
Hanna Instruments

Our iris® visible spectrophotometer HI802 quickly identifies methods by scanning the barcode on reagent vials. It supports single-zero measurements and offers versatility with a removable barcode reader and cuvette adapters. Portable and capable of measuring all visible light wavelengths, this compact meter combines high performance with customize your methods, take a wide range of measurements, and feel confident in your testing accuracy with iris.

View all

KWD 1,113.000

Quantity
Description
Specifications
Downloads
Related products

Description

Our iris® visible spectrophotometer HI802 quickly identifies methods by scanning the barcode on reagent vials. It supports single-zero measurements and offers versatility with a removable barcode reader and cuvette adapters. Portable and capable of measuring all visible light wavelengths, this compact meter combines high performance with customize your methods, take a wide range of measurements, and feel confident in your testing accuracy with iris. Automatic Method Identification: Saves time and reduces errors by automatically applying methods to vial samples. 103 Factory & 100 Custom Methods: Provides immediate options and flexibility with pre-set and customizable methods. Vial Barcode Reader: Increases accuracy and efficiency with automatic vial scanning and identification.

Vial rotation

Vial rotation during measurement enables method identification and multiple absorbance readings, which are converted to concentration units and displayed on the LCD. This rotational averaging improves method accuracy.

Spectral range

The meter features a spectral range of 340nm to 900nm allowing for a wide selection of analytical methods. The flexibility of this range permits compliance with many methods from regulatory organizations and associations for a variety of applications.

The convenience of pre-programmed methods with the option to expand.

The HI802 comes with over 100 pre-programmed methods for chemical analysis. Methods can be updated via computer or flash drive, and up to 150 can be saved. It also provides reagent codes for easy ordering.

Universal cuvette hold

The cuvette holder accommodates 22 mm round and 5 cm path length rectangular cuvettes, with adapters for 13 mm, 16 mm, and 10 mm cuvettes, including a 13 mm vial adapter with a barcode reader. It allows selection of cuvette size in custom methods and displays the size on screen for accurate measurements.

Downloads

HI802 MANUAL.pdf

pdf
Download

Specifications

SKU
HI802
Wavelength Range
340 to 900 nm
Wavelength Resolution
1 nm
Wavelength Accuracy
±1.5 nm
Measurement Modes
Transmittance (% T), absorbance (abs), concentration with choice of units (ppm, mg/L, ppt, ºf, ºe, ppb, meq/L, μg/L, PCU, Pfund, pH, dKH, ºdH, meq/kg or no measurement unit)
Wavelength Selection
automatic, based on the selected method (editable for user methods only)
Light source
tungsten halogen lamp
Optical System
split beam sample and reference light detectors
Wavelength Calibration
internal, automatic at power-on, visual feedback
Stray Light
<0.1 % T at 340 nm with NaNO2
Spectral bandwidth
5 nm (full width at half maximum)
Sample Cell
16 mm round, 22 mm round, 13 mm vial, 10 mm square, 50 mm rectangular (with automatic detection)
Programs (Factory/User)
up to 150 factory (85 pre-loaded); up to 100 user developed
Data points stored
9999 measured values
Export Capability
.csv file format, .pdf file format
Connectivity
(1) USB - A (mass storage host); (1) USB - B (mass storage device)
Battery Type / Life
3000 measurements or 8 hours
Power Supply
15 VDC power adapter; 10.8 VDC Li-Ion rechargeable battery
Environment
0 to 50 °C (32 to 122 °F); 0 to 95% RH
Dimensions
155 x 205 x 322 mm (6.1 x 8.0 x 12.6")
Weight
3 kg (6.6 lbs)
Ordering Information
HI802-01 (115V) and HI802-02 (230V) is supplied with sample cuvette and cap, 22 mm (4 pcs.), cuvette adapter (3 pcs.), vial adapter with barcode reading feature , cloth for wiping cuvettes, scissors, USB cable, 15 VDC power adapter, USB flash drive, instrument quality certificate, and instruction manual.
Warranty
2 years
Note
*excluding vial rotation
