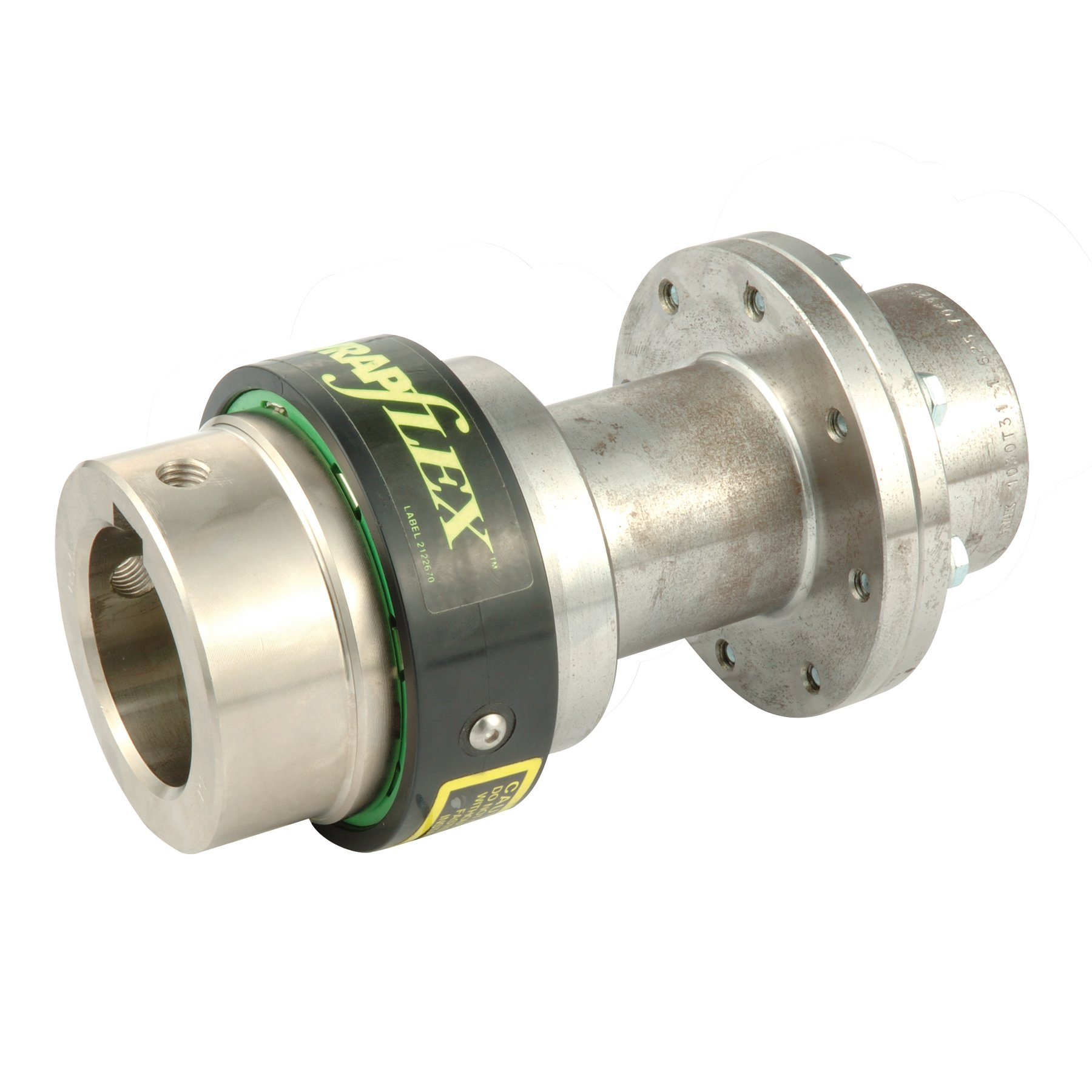

Falk Wrapflex R35 Half Spacer Elastomeric Couplings

Brand :
Falk

The Wrapflex R35 is a half spacer elastomeric coupling offering an economical solution for quick and reliable maintenance. Its simplified design provides ease of service while ensuring robust performance in various applications.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Falk Wrapflex R35 half spacer elastomeric coupling features an economical spacer design for easy service of connected equipment and also an innovative "replace-in-place" element that allows quick, easy installation and replacement without moving or realigning equipment. The non-lubricated design features a tough polyurethane element with excellent wear and chemical resistance. Available in 9 sizes ranging from 5R through 80R, the Wrapflex R35 coupling accommodates torque loads up to 133,000 lb-in (15,000 Nm) and shaft diameters up to 7.25 inches (190 mm). The optional high torque 70D black element can increase standard catalogue torque ratings by 25%. Standard covers are nylon for sizes 5R - 50R and black epoxy-coated steel for sizes 60R - 80R. Optional black epoxy-coated steel covers are available for highly corrosive, severe-duty applications. Electroless nickel plated carbon steel hubs are optional for moderately corrosive applications. Hubs are available in rough bore, custom bore and bushed designs.

Features & Benefits

•Polyurethane element provides excellent wear and chemical resistance •Offers an operating temperature range of -40 to 200 F (-40 to 93 C) •Patented hub and flex element design ensure long life •ATEX certified •Up to 133,000 in-lb (15,027 Nm) torque capacity •Up to 7.25 inches (184 mm) bore capacity •Up to 4,500 rpm •Close-coupled and spacer designs available to accommodate shaft spacing

Downloads

CP5-023_ProductSheet.pdf

pdf
Download

081-000_Falk-Wrapflex-Elastomeric-Couplings-Part-Number-Guide_Brochure.pdf

pdf
Download

Specifications

Torque Capacity
Up to 133,000 lb-in
Bore Capacity
Up to 7.25 inches
Temperature
-40 to 200°F
Element Material
Polyurethane
Design
Economical spacer
Certification
ATEX certified
