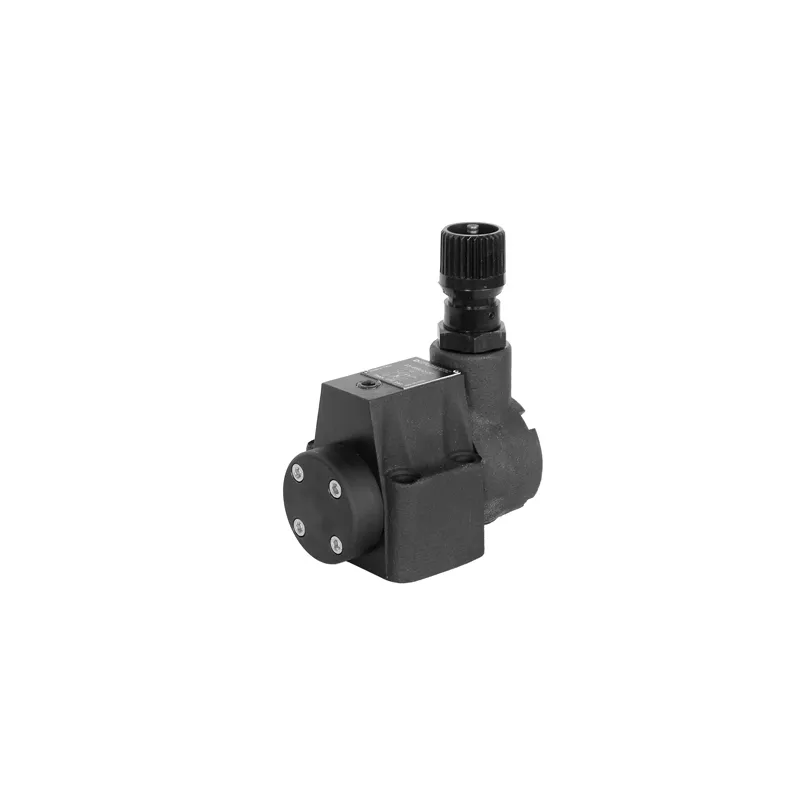

Duplomatic Pressure Reducing Valves, Two-Port, Type Z*P

Brand :
Duplomatic

Duplomatic Pressure Reducing Valves, Two-Port, Type Z*P - Pressure reducing valves, two-port

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Z3-P and Z5-P are pressure reducing valves for subplate mounting. They are used to reduce pressure for secondary circuits branches. The adjustable pressure control range is from 5 to 210 bar. The drainage port must be connected directly to the tank. Version with check valve for free reverse flow is available.

Key Features

• Valve Type is Pressure Reducing Valve • Series is 22 • Mounting Type is Subplate Mounting • Mounting Interface is Z3-P: ISO 5781-06, Z5-P: ISO 5781-08 • Maximum Operating Pressure is 250 bar • Maximum Flow Rate is Z3-P: 40 l/min, Z5-P: 110 l/min

Downloads

Datasheet_Z_P.pdf

pdf
Download

Specifications

Valve Type
Pressure Reducing Valve
Series
22
Mounting Type
Subplate Mounting
Mounting Interface
Z3-P: ISO 5781-06, Z5-P: ISO 5781-08
Maximum operating pressure
250 bar
Maximum Flow Rate
Z3-P: 40 l/min, Z5-P: 110 l/min
Drain Flow Rate
0.8 l/min (0.4 l/min reduced)
Ambient temperature range
-20°C to +60°C
Fluid Temperature Range
-20°C to +80°C
Fluid Viscosity Range
10 to 400 cSt
Recommended viscosity
25 cSt
Fluid Contamination
ISO 4406:1999 Class 20/18/15
