Pressure Valves

6 results

Product	Max pressure setting [bar] [STANDARD (CART M-3)]	Max pressure setting [bar] [STANDARD (CART M-4)]	Max pressure setting [bar] [R (CART M-4)]	Max pressure setting [bar] [RS (CART M-4)]	Max pressure setting [bar] [STANDARD (CART M-5)]	Compliance	Ambient temperature	Storage Temperature Range	Corrosion Resistance	Ambient temperature range

Atos Cartridge Pressure Relief Valves Type CART M, CART ARE, Screw-In Mounting, Direct Operated, Poppet Type	50, 100, 210, 350, 420	100, 210, 350, 420	100, 210, 350, 420	220, 270, 350	50, 100, 210, 250, 350	RoHS Directive 2011/65/EU as last update by 2015/65/EU REACH Regulation (EC) n°1907/2006	Standard execution = -30°C ÷ +70°C /PE option = -20°C ÷ +70°C /BT option = -40°C ÷ +70°C
Atos Pressure Relief Valves Type ARE, Direct Operated, In Line Mounting, Poppet Type						RoHS Directive 2011/65/EU as last update by 2015/863/EU REACH Regulation (EC) n°1907/2006	Standard execution = -30°C ÷ +70°C /PE option = -20°C ÷ +70°C /BT option = -40°C ÷ +70°C
Atos Pressure Relief Valves Type ARAM, Two Stage, In Line Mounting - G 3/4" And G 11/4" Threaded Ports, Poppet Type						CE to Low Voltage Directive 2014/35/EU RoHS Directive 2011/65/EU as last update by 2015/65/EU REACH Regulation (EC) n°1907/2006	Standard execution = -30°C ÷ +70°C /PE option = -20°C ÷ +70°C /BT option = -40°C ÷ +70°C	Standard = -30°C ÷ +80°C /PE option = -20°C ÷ +80°C /BT option = -40°C ÷ +80°C	Salt spray test (EN ISO 9227) > 200 h	Standard = -30°C ÷ +70°C /PE option = -20°C ÷ +70°C /BT option = -40°C ÷ +70°C
Atos Pressure Relief Valves Type AGAM, Two Stage, Subplate Mounting - ISO 6264, Poppet Type						CE to Low Voltage Directive 2014/35/EU RoHS Directive 2011/65/EU as last update by 2015/65/EU REACH Regulation (EC) n°1907/2006		Standard = -30°C ÷ +80°C /PE option = -20°C ÷ +80°C /BT option = -40°C ÷ +80°C	Salt spray test (EN ISO 9227) > 200 h	Standard = -30°C ÷ +70°C /PE option = -20°C ÷ +70°C /BT option = -40°C ÷ +70°C
Atos Pressure Relief Valves Type REM, Two Stage, Flange Mounting SAE 3/4”, 1”, 1-1/4”, Poppet Type						CE to Low Voltage Directive 2014/35/EU RoHS Directive 2011/65/EU as last update by 2015/65/EU REACH Regulation (EC) n°1907/2006		Standard = -30°C ÷ +80°C /PE option = -20°C ÷ +80°C /BT option = -40°C ÷ +80°C	Salt spray test (EN ISO 9227) > 200 h	Standard = -30°C ÷ +70°C /PE option = -20°C ÷ +70°C /BT option = -40°C ÷ +70°C
Atos Pressure Control Valves Type AGIR, AGIS, AGIU, Two Stage, Subplate Mounting, ISO 5781, Spool or Poppet Types						CE to Low Voltage Directive 2014/35/EU RoHS Directive 2011/65/EU as last update by 2015/65/EU REACH Regulation (EC) n°1907/2006		Standard = -30°C ÷ +80°C /PE option = -20°C ÷ +80°C /BT option = -40°C ÷ +80°C	Salt spray test (EN ISO 9227) > 200 h	Standard = -30°C ÷ +70°C /PE option = -20°C ÷ +70°C /BT option = -40°C ÷ +70°C

4154645On-Off Pressure Valves (1).webp

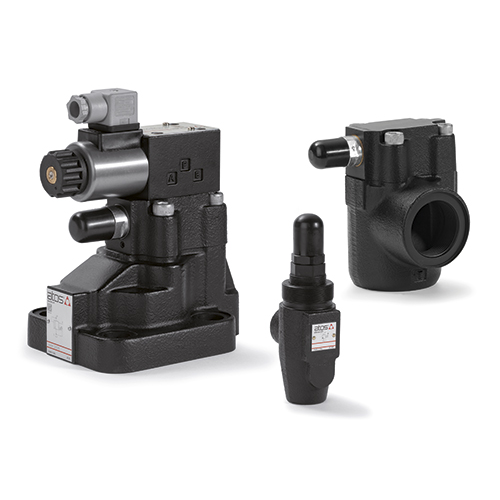

Pressure Valves

Pressure Valves from Atos are a perfect blend of advanced engineering and reliability, tailored for a wide range of industrial applications. The product line includes cartridge pressure relief valves, two-stage pressure relief valves, and pressure control valves, designed for seamless integration into hydraulic systems. Notable features include screw-in or inline mounting, high precision in pressure regulation, and robust designs to withstand extreme temperature ranges from -30°C to +80°C. These valves are compliant with critical safety and environmental directives like RoHS and CE certifications, ensuring adherence to global standards. Known for their durable construction and exceptional performance, Atos Pressure Valves cater to industries such as manufacturing, energy, and heavy machinery, offering unmatched control and operational efficiency.
