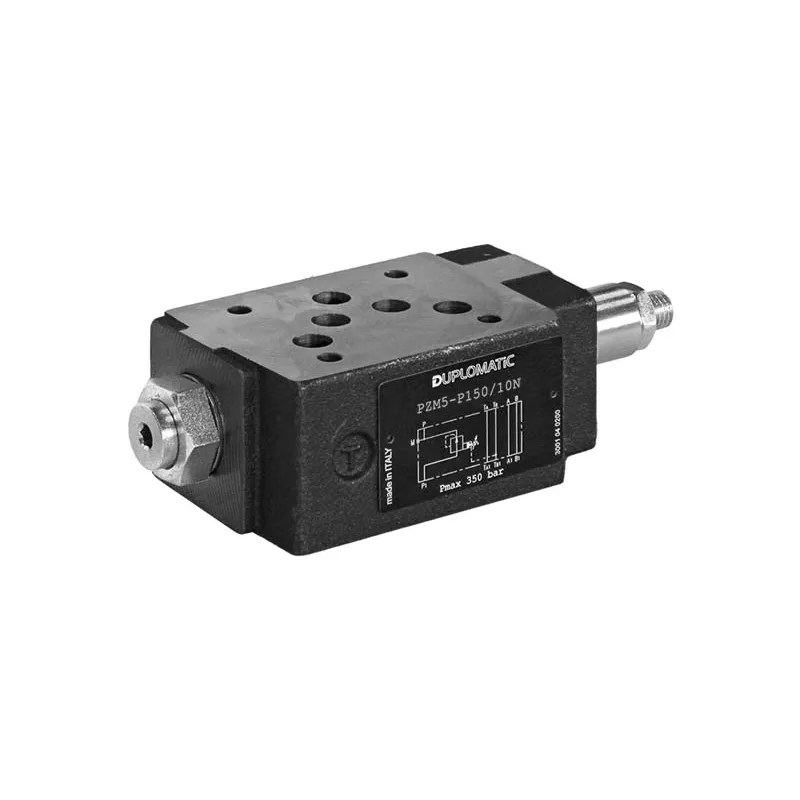

Duplomatic Pilot Operated Pressure Reducing Valve, Type PZM5

Brand :
Duplomatic

Duplomatic Pilot Operated Pressure Reducing Valve, Type PZM5 - Pilot operated pressure reducing valve

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The PZM5 is a stackable pilot operated pressure reducing valve. It operates reducing the pressure on secondary circuit branches and ensuring the stability of the regulated pressure, even when the flow rate passing through the valve varies. It is available in three pressure adjustment ranges, up to 350 bar. It can be supplied with a hexagon socket adjustment screw with locking nut or with adjustment knob.

Key Features

• Valve Type is Pilot Operated Pressure Reducing Valve • Mounting Type is Subplate Mounting • Standard is ISO 4401-05 • Max Operating Pressure is 250 bar • Flow Rate is 120 l/min • Adjustment Range is 25 to 210 bar

Downloads

Datasheet_PZM5.pdf

pdf
Download

Specifications

Valve Type
Pilot Operated Pressure Reducing Valve
Mounting Type
Subplate Mounting
Standard
Meet the requirements of an ISO or DIN Standard
ISO 4401-05
Max Operating Pressure
250 bar
Flow Rate
120 l/min
Adjustment Range
25 to 210 bar
Temperature Range
-20°C to +80°C
Viscosity Range
10 to 400 cSt
Contamination Level
ISO 4406:1999 class 20/18/15
Seals
NBR / FPM
Mass
3.8 kg
Recommended viscosity
25 cSt
