Camozzi MC Series Filter Regulator Lubricator (FRL) Assembly with Pressure Gauge, G 1/2" Port Size, MC202-D00/MC202-L00

Part Number : MC202-D00/MC202-L00

Brand :
Camozzi

Camozzi MC Series FRL Assembly with G1/2" ports includes a filter-regulator and lubricator unit, ensuring clean, regulated, and lubricated compressed air for industrial pneumatic systems.

View all

KWD 47.500

Quantity
Description
Specifications
Downloads
Related products

Description

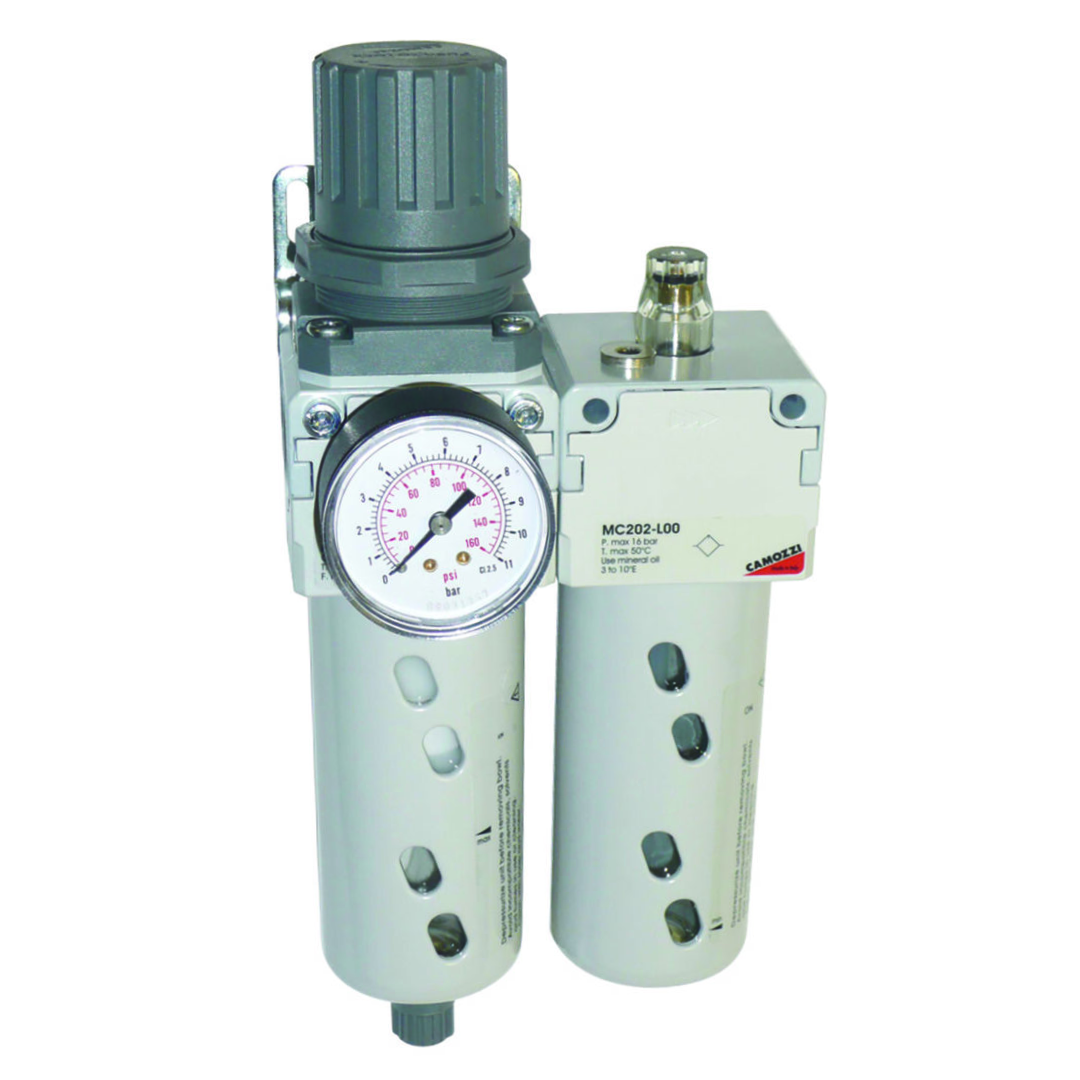

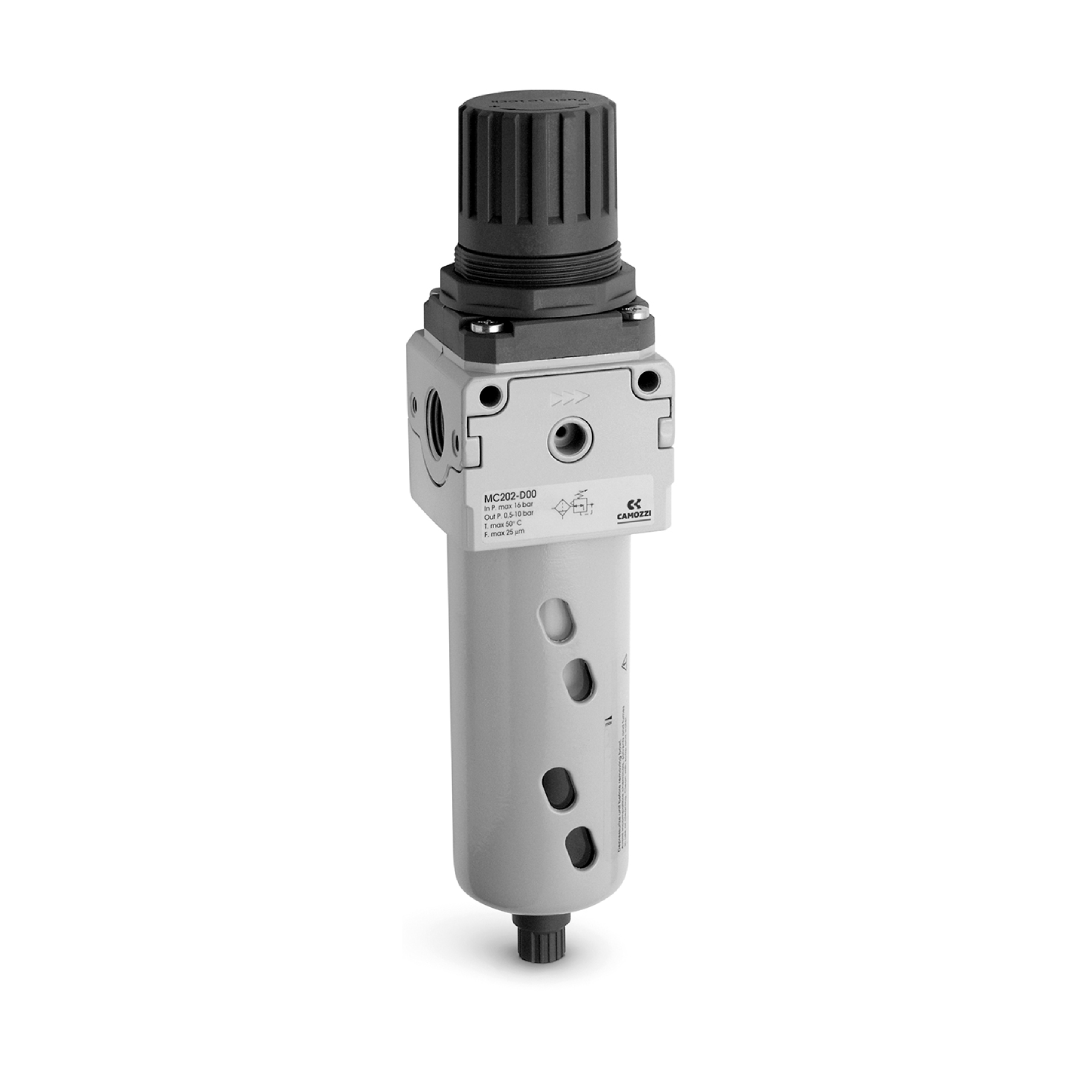

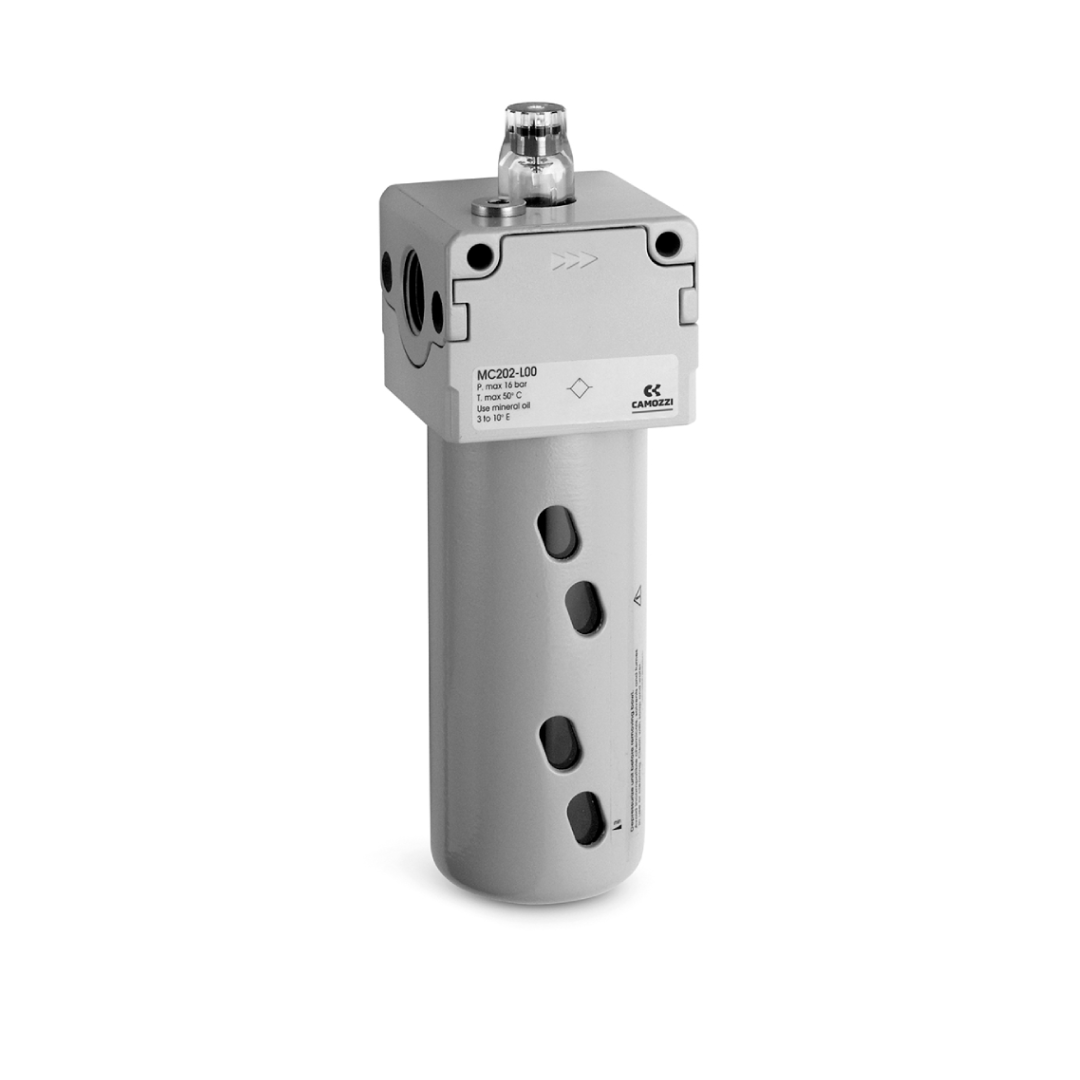

The Camozzi MC Series Filter-Regulator-Lubricator (FRL) Assembly is a modular air treatment unit engineered to deliver clean, pressure-controlled, and lubricated air to pneumatic equipment. It features the MC202-D00 filter-regulator with a 25µm filter element, manual semi-automatic condensate drain, and adjustable outlet pressure from 0.5 to 10 bar. The MC202-L00 lubricator ensures efficient atomized oil delivery with visual oil level indicators and flow adjustment via a built-in screw. Designed with metal bowls and G1/2" threaded ports, this assembly is ideal for medium to heavy-duty industrial applications, enhancing equipment performance, reducing wear, and extending service life. The compact and vertical inline mounting design simplifies installation while maintaining high reliability.

Downloads

Datasheet Camozzi MC202-D00.pdf

pdf
Download

Datasheet Camozzi MC202-L00.pdf

pdf
Download

Camozzi MC-FILTER-REGULATOR-Catalog.pdf

pdf
Download

Camozzi MC-LUBRICATOR-Catalog.pdf

pdf
Download

Specifications

Fluid
Compressed Air
Series
MC Series
Port Size
G1/2
Filter Element
25 µm (standard)
Regulator Type
Without by-pass valve
Operating Pressure Range
0.5 – 10 bar
Lubricator Design
Atomized oil
Condensate drain
Manual semiautomatic, self-relieving
Oil for Lubrication
ISO VG32 oil recommended
Construction
Modular compact with metal bowl
Mounting
Vertical in-line or wall-mounted
Oil Capacity
170 cm³ (lubricator)
Condensate Capacity
72 cm³ (filter-regulator)
Weight
0.674 kg (lubricator), 0.928 kg (filter-regulator)
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Zamak, technopolymer, NBR
Temperature Range
-5°C to +50°C at 10 bar max (dew point >2°C below ambient)
Function
The circuit function of a solenoid valve specifies how fluid will flow between the valve's ports when it is energized de-energized.
Filter, regulator, and lubricator (FRL) combined
Pressure gauge
Included
