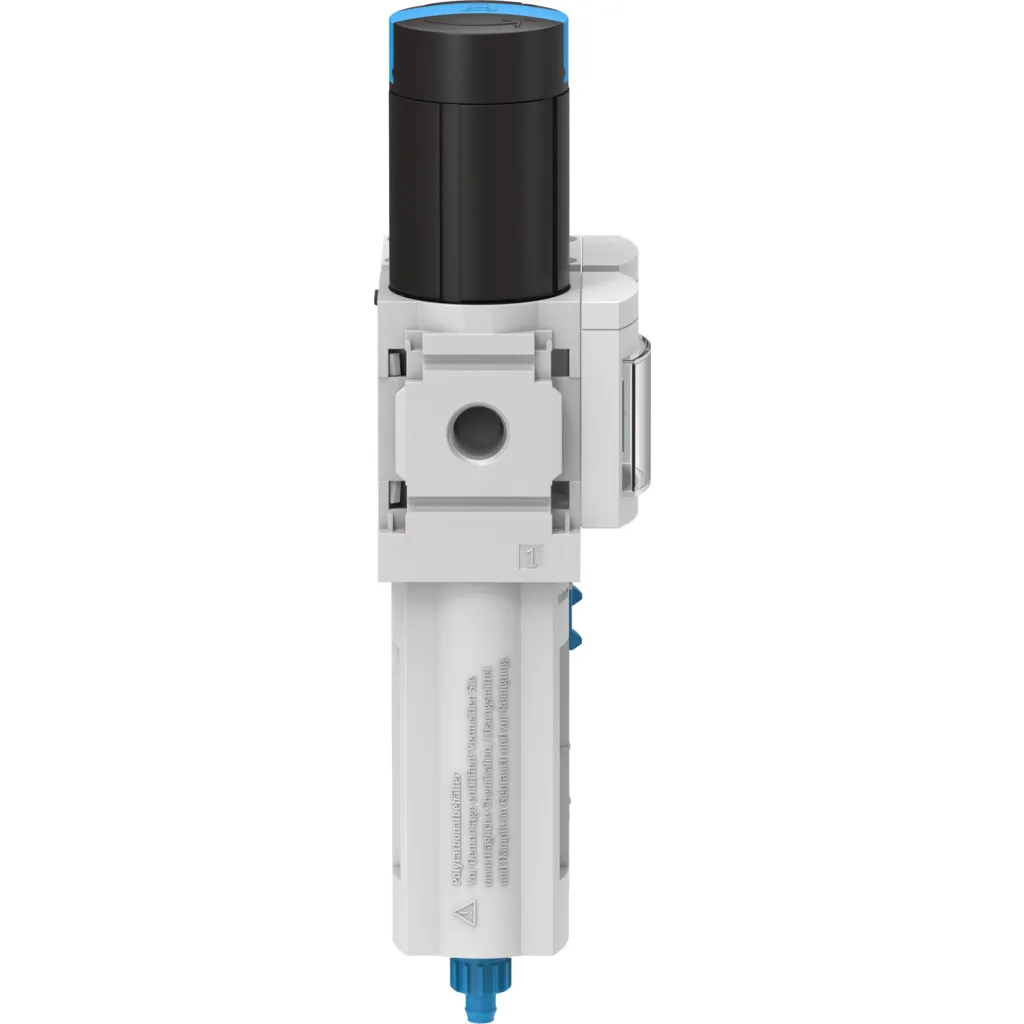

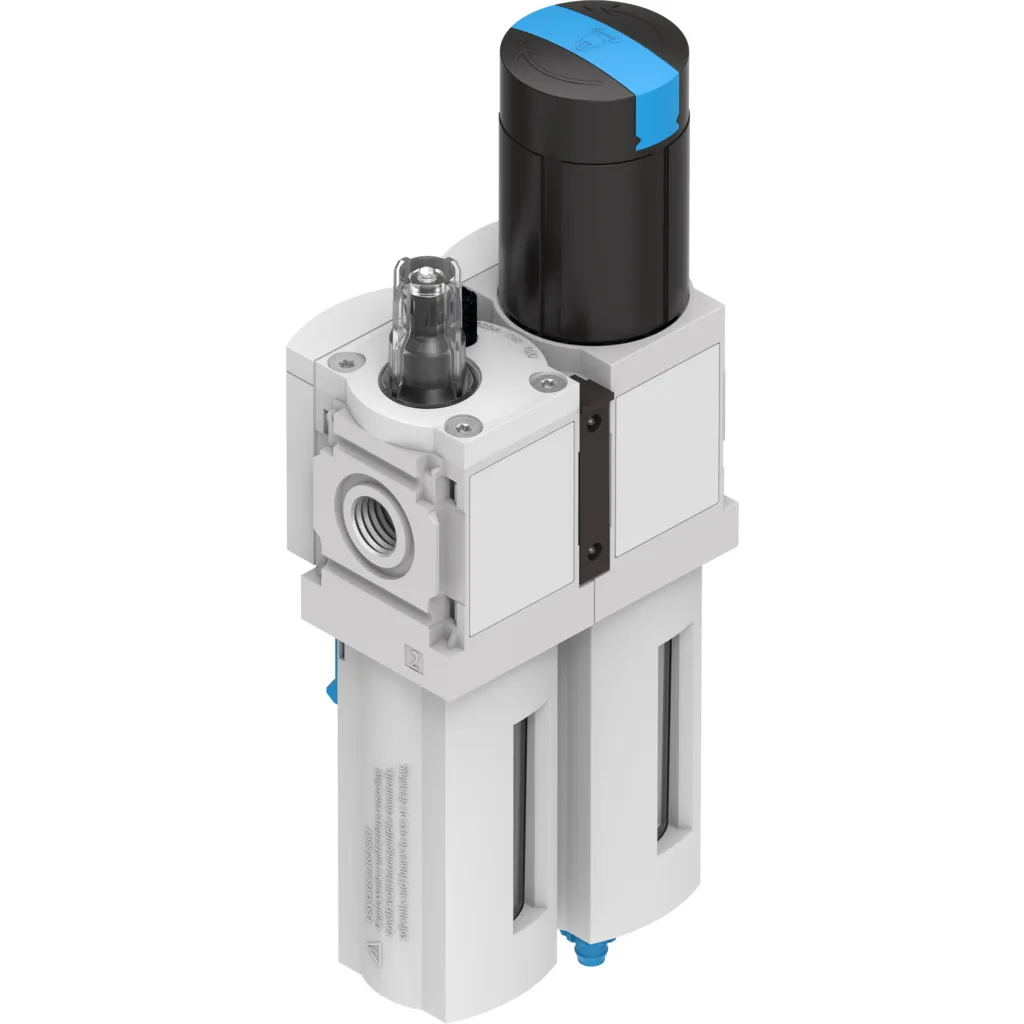

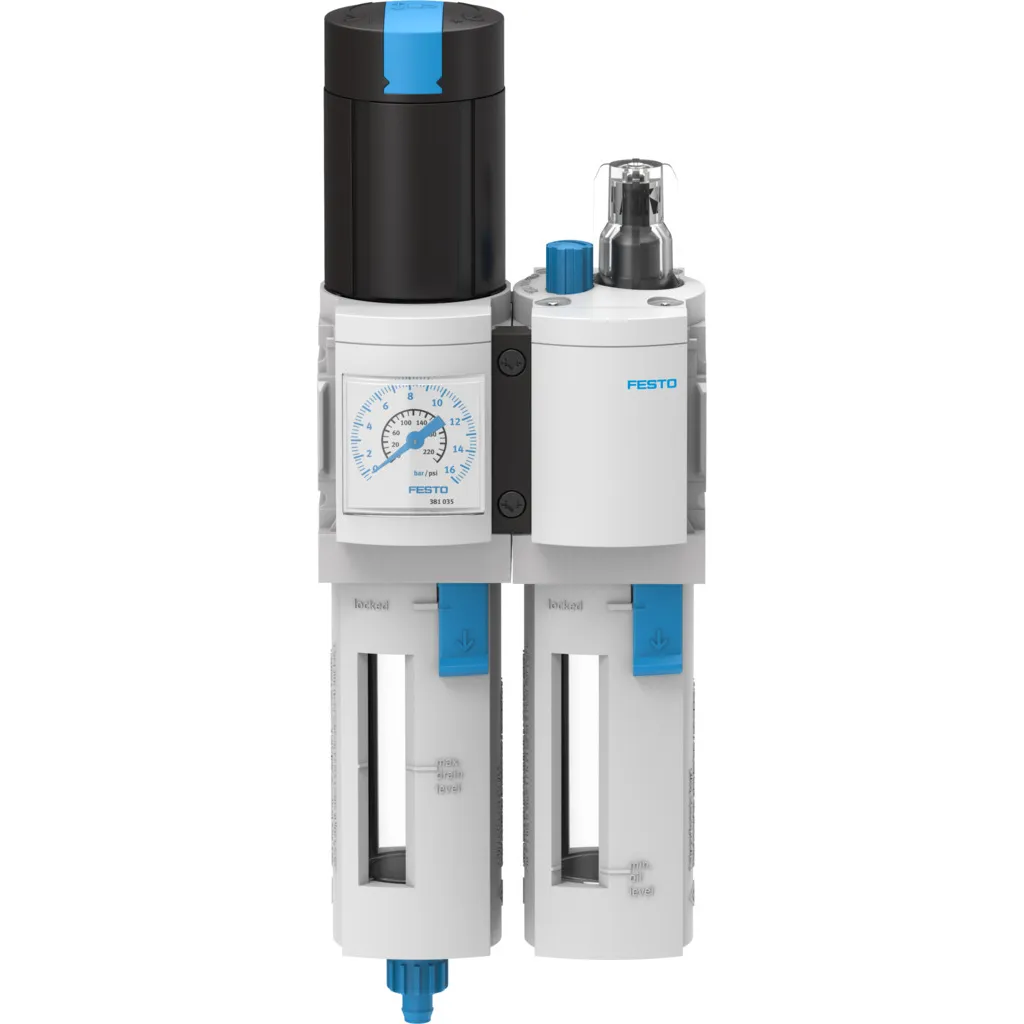

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/4", 0.5 to 12 bar Pressure Range, MSB4-1/4-FRC7:J3M1

Part Number : MSB4-1/4-FRC7:J3M1

Brand :
Festo

A high-efficiency air preparation unit combining advanced filtering, regulating, and lubricating capabilities. Featuring a 1/4" female thread, it provides exceptional air quality with 5 ?m filtration for demanding pneumatic systems.

View all

KWD 44.600

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB4-1/4-FRC7:J3M1 provides superior air preparation with advanced 5 ?m filtration. Capable of delivering a flow rate of 1900 l/min and regulating pressure between 0.5 to 12 bar, this unit is designed for high-precision pneumatic systems.

Key Features

• Compact unit combining filter, regulator, and lubricator functions. • Provides 5 ?m filtration for enhanced air purity.

Technical Specifications

• Connection Type: 1/4" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 5 ?m • Maximum Flow Rate: 1900 l/min

Applications

• Suitable for pneumatic systems requiring high air purity and precise pressure control. • Ideal for industrial applications, automation systems, and compressed air tools.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB4 1-4 FRC7 J3M1 Technical data.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent can be closed with accessories
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge Proportional standard mist lubricator
Grade of filtration
5 µm
Controller function
Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Bowl guard
Plastic bowl guard

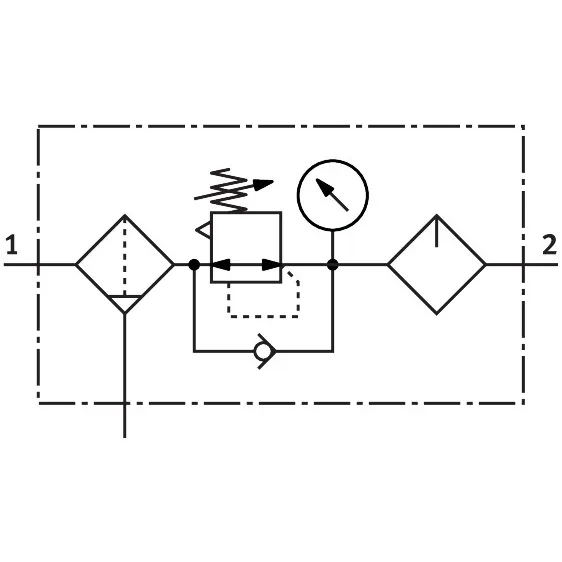

Symbol
991761
Pressure gauge
With pressure gauge
Operating pressure
1.5 bar ... 14 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
850 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
500 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Material housing
Die-cast aluminium
Material bowl
PC
