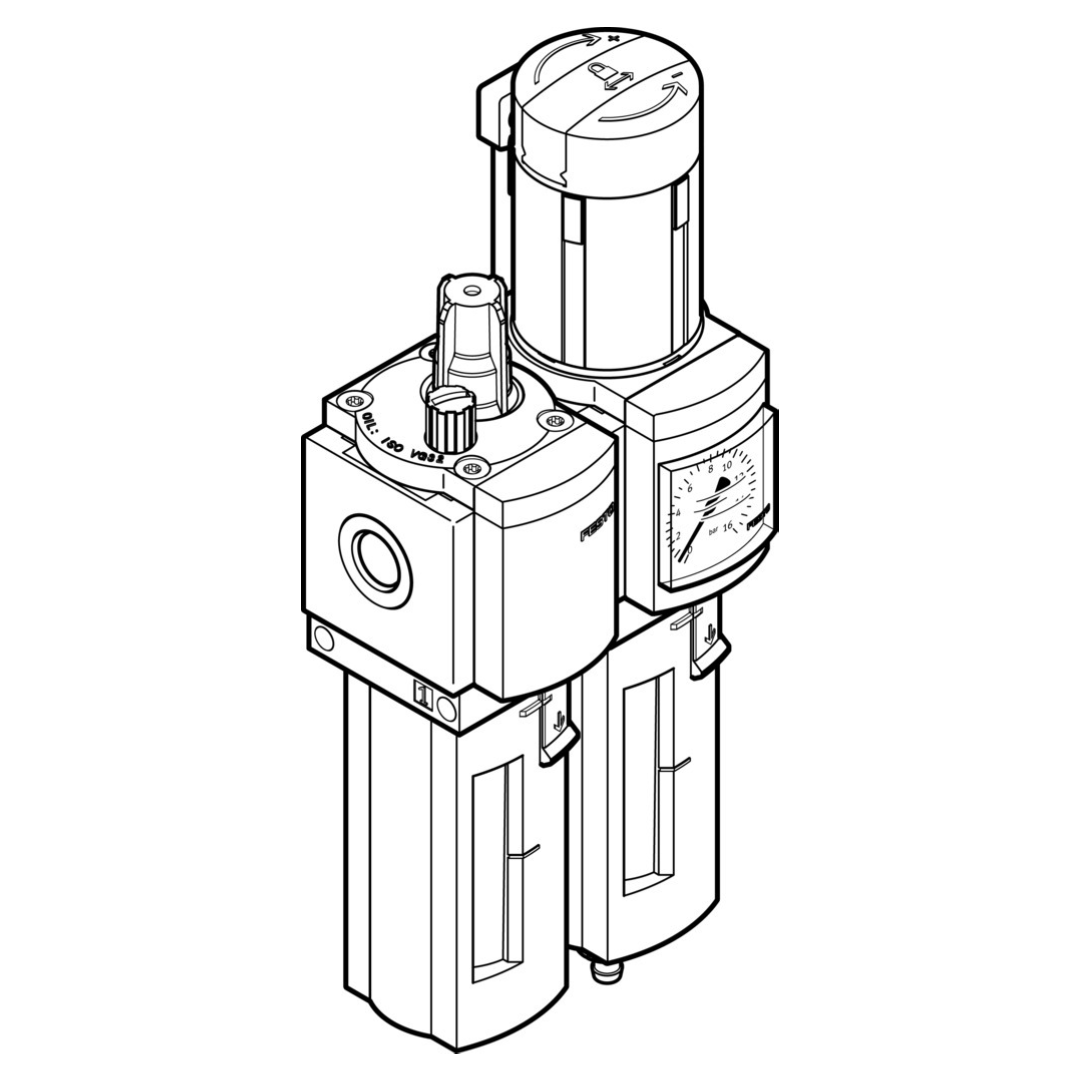

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/4", 0.5 to 12 bar Pressure Range, MSB4-1/4-FRC5:J1M1-Z

Part Number : MSB4-1/4-FRC5:J1M1-Z

Brand :
Festo

A versatile air preparation solution integrating filtering, regulating, and lubricating in a compact design. This 1/4" unit is equipped with a manual condensate drain and ensures consistent air management for small and medium-sized setups.

View all

KWD 44.600

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB4-1/4-FRC5:J1M1-Z offers reliable air preparation in a compact design. With a flow rate of 900 l/min and a pressure regulation range of 0.5 to 12 bar, it is ideal for small to medium-sized pneumatic systems, ensuring consistent performance.

Key Features

• Compact design integrating filtering, regulating, and lubricating functions. • Supports a flow rate of 900 l/min.

Technical Specifications

• Connection Type: 1/4" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 900 l/min

Applications

• Suitable for compact pneumatic systems requiring reliable air quality management. • Ideal for automation systems and pneumatic tools.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB4 1-4 FRC5 J1M1-Z Technical data.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent can be closed with accessories
Mounting position
Vertical +/-5°
Condensate drain
Manually rotating
Design
Filter regulator with pressure gauge Proportional standard mist lubricator
Grade of filtration
40 µm
Controller function
Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Bowl guard
Plastic bowl guard

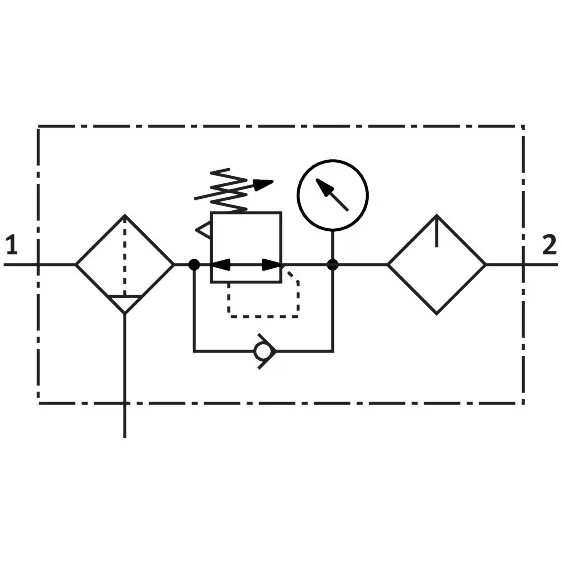

Symbol
991761
Pressure gauge
With pressure gauge
Operating pressure
1.5 bar ... 14 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
900 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:4:-] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
500 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Material housing
Die-cast aluminium
Material bowl
PC
