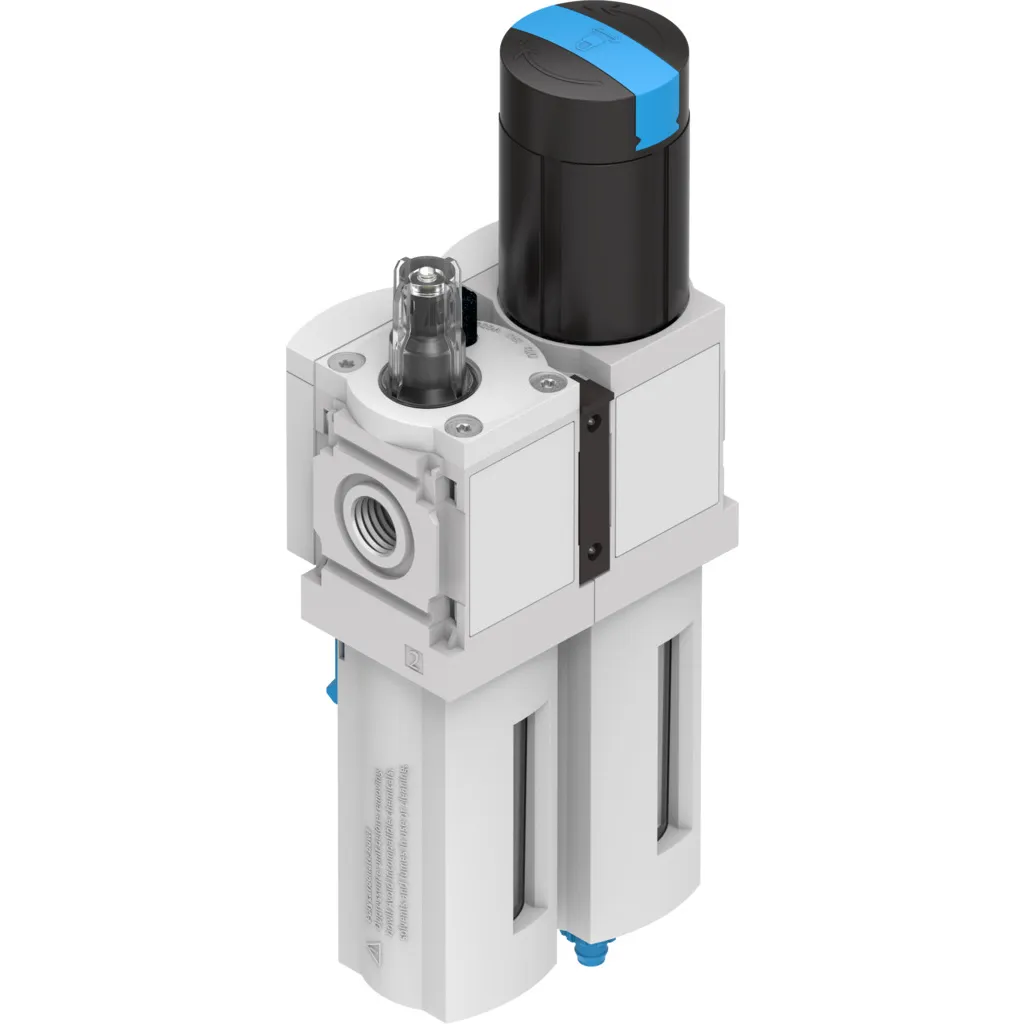

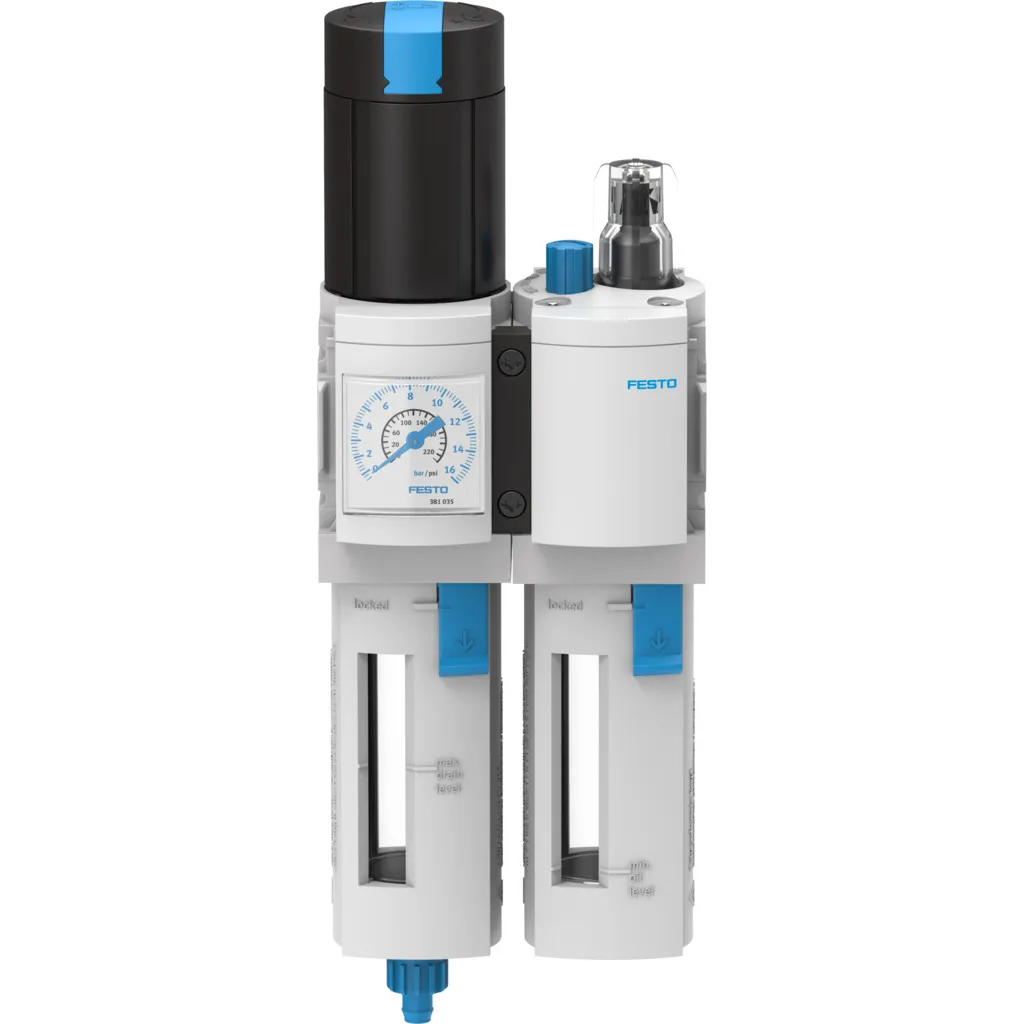

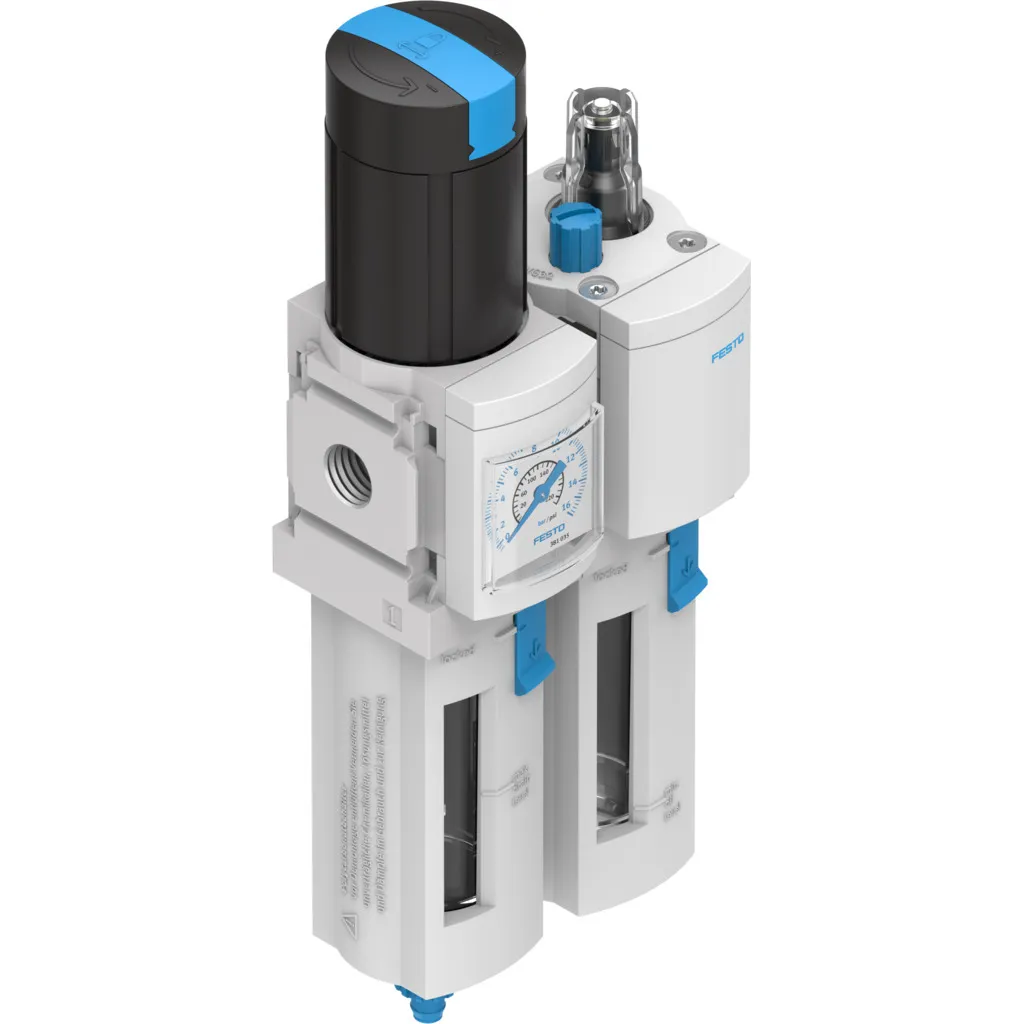

Festo Compressed Air Filter Regulator Lubricator (FRL) Unit, 1/4", 0.5 to 12 bar Pressure Range, MSB4-1/4-FRC6:J2M1

Part Number : MSB4-1/4-FRC6:J2M1

Brand :
Festo

An efficient air preparation unit offering filtering, regulating, and lubricating functions. It includes a 1/4" female thread and an automatic condensate drain for maintenance-free operation in industrial environments.

View all

KWD 56.500

Quantity
Description
Specifications
Downloads
Related products

Description

The Festo MSB4-1/4-FRC6:J2M1 delivers efficient air preparation with automatic condensate drainage. Its flow rate of 900 l/min and pressure regulation range of 0.5 to 12 bar make it perfect for systems requiring low-maintenance and high-efficiency air management.

Key Features

• Integrated design for filtering, regulating, and lubricating compressed air. • Fully automatic condensate drain for continuous operation.

Technical Specifications

• Connection Type: 1/4" Female Thread • Pressure Regulation Range: 0.5 to 12 bar • Filtration Grade: 40 ?m • Maximum Flow Rate: 900 l/min

Applications

• Ideal for pneumatic systems in industrial automation and machinery. • Suitable for setups requiring continuous air preparation and filtration.

Downloads

Service unit combinations MSB-FRC.pdf

pdf
Download

MSB4 1-4 FRC6 J2M1 Technical data.pdf

pdf
Download

Specifications

Size
4
Series
MS
Actuator lock
Rotary knob with detent can be closed with accessories
Mounting position
Vertical +/-5°
Condensate drain
Fully automatic
Design
Filter regulator with pressure gauge Proportional standard mist lubricator
Grade of filtration
40 µm
Controller function
Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Bowl guard
Plastic bowl guard
Symbol
991599
Pressure gauge
With pressure gauge
Operating pressure
1.5 bar ... 12 bar
Pressure regulation range
0.5 bar ... 12 bar
Standard nominal flow rate
900 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class
CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Air purity class at output
Compressed air to ISO 8573-1:2010 [7:4:-]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
500 g
Type of mounting
With accessories
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
G1/4
Material housing
Die-cast aluminium
Material bowl
PC
