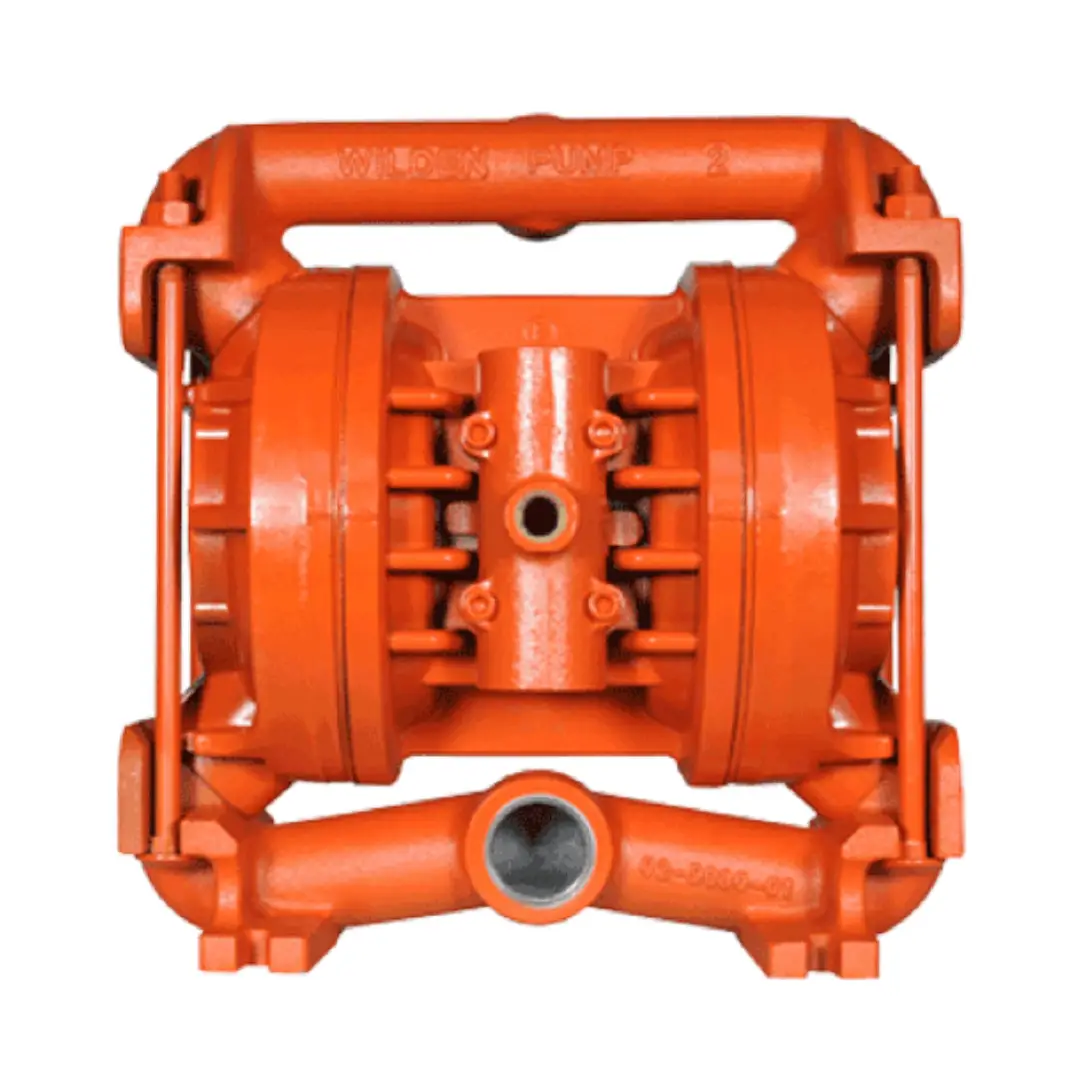

Wilden T2 Model Turbo-Flo™ Series 1″ (25 mm) Aluminum AODD Pump, Clamped Metal, BSPT 1″ × 3/4″ Ports, Buna-N Diaphragms & Balls, Aluminum Seats (Buna-N O-rings), Brass Air Valve, T2/AAAAB/BNS/BN/ABN/0014

Part Number : T2/AAAAB/BNS/BN/ABN/0014

Brand :
Wilden

Turbo-Flo™ Series 1″ (25 mm) aluminum clamped-metal AODD pump with BSPT 1″ inlet / 3/4″ discharge, Buna-N diaphragms & balls, aluminum seats with Buna-N O-rings, and a brass air valve—compact and service-friendly for general transfer

View all

KWD 220.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Wilden Original™ T2 (the 1″/25 mm model) in the Turbo-Flo™ Series uses the Turbo-Flo air-distribution system for smooth cycling and simple maintenance. Your code T2/AAAAB/BNS/BN/ABN/0014 decodes to aluminum wetted path, aluminum center/air chamber, brass air valve, Buna-N diaphragms and balls, and aluminum valve seats with Buna-N seat O-rings; specialty code 0014 designates BSPT process connections (1″ suction / 3/4″ discharge).

Key Features

• Turbo-Flo™ air system with a simple, robust design and minimal moving parts; tolerant of dirty air and easy to maintain.

• Clamped-metal construction for fast teardown and reassembly, reducing service time and downtime.

• Self-priming design with strong dry/wet suction-lift capability; can be throttled on the air side for precise flow/pressure control.

• Gentle, low-shear pumping action suitable for a wide range of fluids; sealless diaphragm design minimizes leak paths.

• Solids handling up to 3.2 mm within the stated envelope; compact footprint and lightweight aluminum build for portability.

• BSPT process threads (your 0014 specialty code) for regional piping compatibility; standard 1/4 air inlet and single-point exhaust.

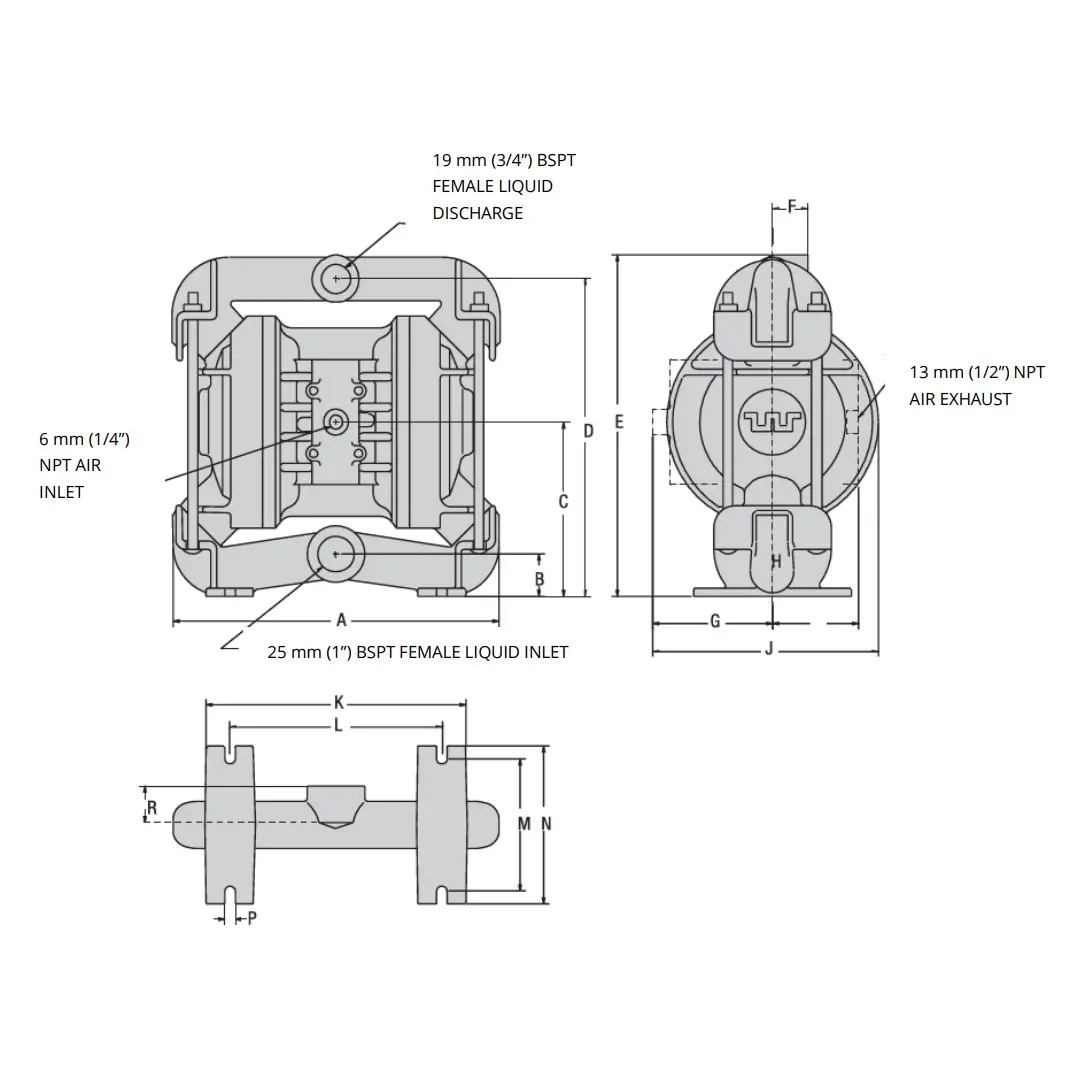

• Clear dimensional drawing and performance/suction-lift curves available in the factory PDF for engineering checks.

Applications

• Transfer of oils, diesel, kerosene, lubricants, and other light hydrocarbons compatible with aluminum/Buna-N.

• Plant utilities: drum/IBC decanting, day-tank feed, line/filtration feed, general maintenance and utility pumping.

• Sump/waste collection with small soft solids ( 3.2 mm), spill recovery, and intermittent transfer where self-priming is required.

• General chemical and process fluids where non-electrical, air-driven operation and low-shear handling are advantageous (verify compatibility with the chemical guide).

Downloads

Wilden T2 Turbo Flo Series Datasheet.pdf

pdf
Download

Specifications

Series
Turbo-Flo™ Series
Port size (process)
1″ BSPT inlet / 3/4″ BSPT discharge
Air inlet / exhaust
1/4″ FNPT / 1/2″ FNPT
Port size (Inlet / Outlet)
1″ / 3/4″ (NPT)
Max flow
132 L/min (35 GPM)
Max air supply pressure
8.6 bar (125 psi)
Max solids size
3.2 mm (1/8″)
Suction lift
5.18 m (dry) / 9.45 m (wet)
Dimensions (H × W × D)
279 × 267 × 185 mm (11.0″ × 10.5″ × 7.3″)
Construction
Aluminum wetted parts; aluminum center block; aluminum air chamber; bronze air valve
Elastomers
Buna-N diaphragms and balls; aluminum seats with Buna-N O-ring
