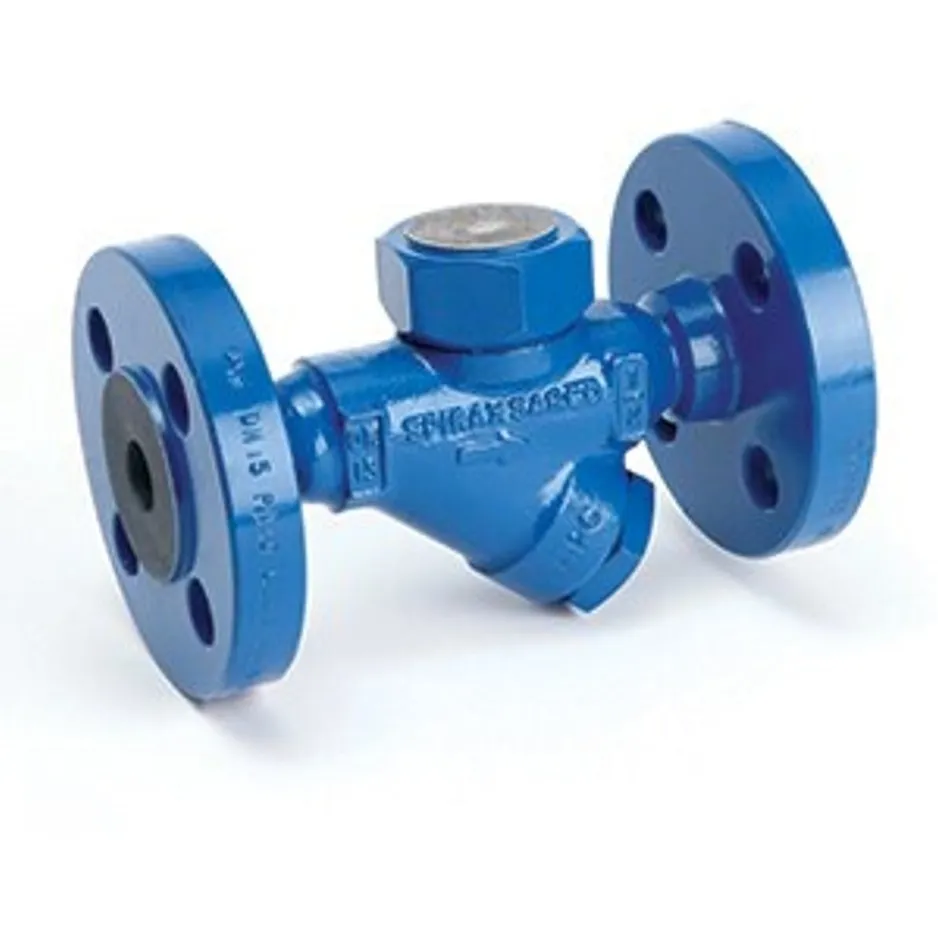

Spirax Sarco Thermodynamic Steam Trap,Flanged, made with Stainless Steel, TD32F

Part Number : TD32F

Brand :
Spirax Sarco

The TD32F is a maintainable medium pressure flanged thermodynamic steam trap with an integral strainer screen.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The TD32F thermodynamic steam trap features a stainless steel body and is ideal for steam mains drainage applications. Optional insulating covers are available. The trap is designed for medium pressure applications up to 32 bar g and temperatures up to 400°C. The TD32F is a maintainable medium pressure flanged thermodynamic steam trap which has an integral strainer screen fitted to protect the internals from dirt. The TD32FLC is designed specifically for low load applications such as steam mains drainage applications. The TD32FA and TD32FALC are fitted with an anti-air-binding disc to ensure prompt removal of air on start-up. Sizes includes DN15, DN15LC, DN20, DN20LC, DN25 and DN25LC, Flanged ASME (ANSI) B 16.5 Class 150 and 300, DIN 2501 PN40 and JIS/KS 10, 16 and 20.

Features

Maintainable design, integral strainer screen, stainless steel construction, optional insulating cover.

Downloads

TD32F-TI-P068-17-EN.pdf

pdf
Download

TD32F-IM-P068-26-EN.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel ASTM A743 CA-40
Standards
Complies with Pressure Equipment Directive (PED)
Certifications
Certification to EN 10204 3.1 available
Sizes and Connections
DN15, DN20, DN25 flanged ASME (ANSI) Class 150 and 300
Pressure/Temperature Limits
PMA: 40 bar g @ 100°C, TMA: 400°C @ 32 bar g
Applications
Steam mains drainage and medium pressure applications
