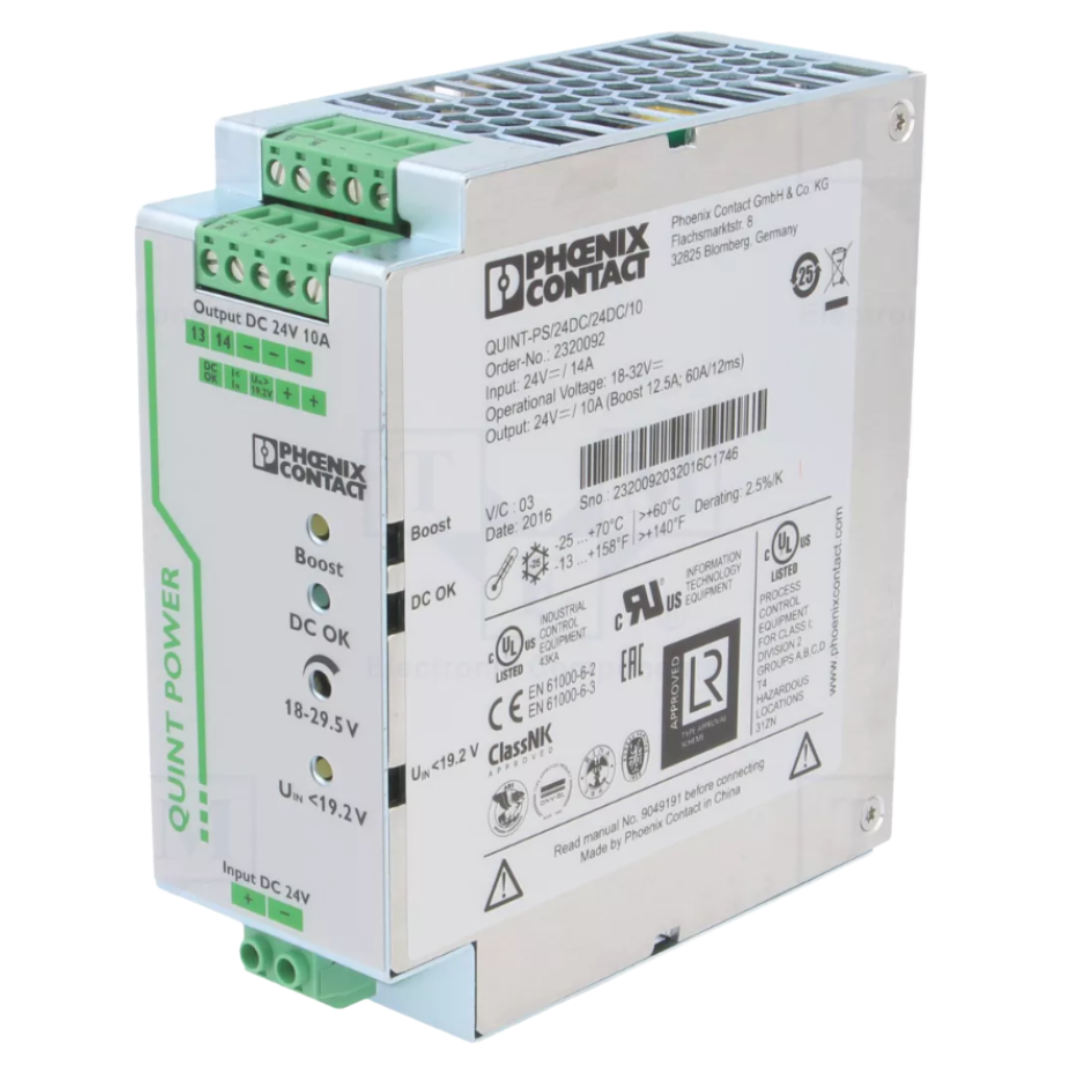

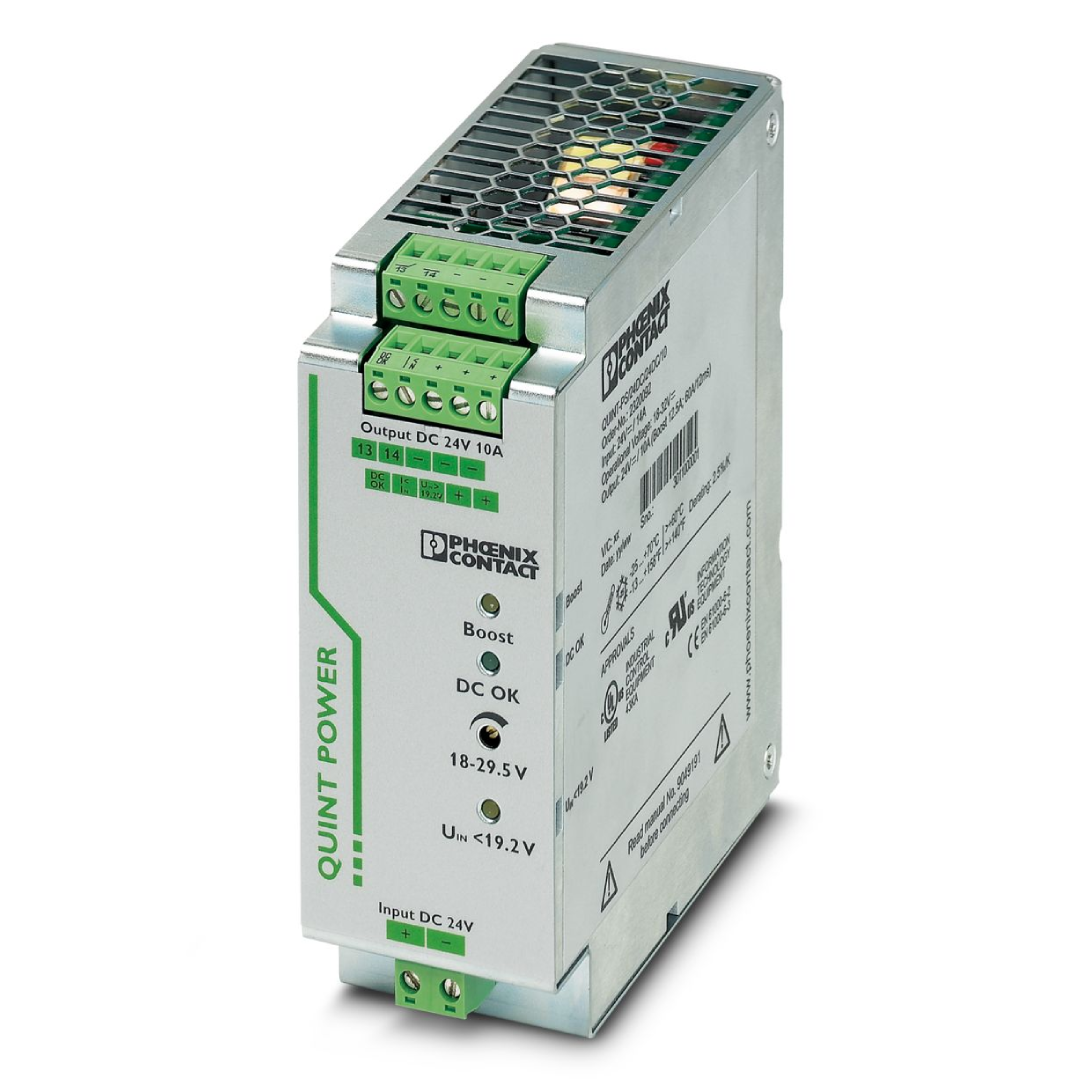

Phoenix Contact QUINT-PS/24DC/24DC/10 DC-DC Converter, 24V dc/ 10A Output, 18 → 32 V dc Input, 240W, DIN Rail Mounting, SFB Technology, 2320092
Part Number : 2320092
Brand :
![Phoenix Contact]()
Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 24 V DC/10 A
View all
KWD 79.000
Description
The Phoenix Contact QUINT-PS/24DC/24DC/10 is a top-tier DC/DC converter designed for demanding industrial applications. Operating with an input range of 18–32 V DC and delivering a stabilized 24 V DC output at 10 A, this converter ensures consistent and isolated power delivery across control systems. It integrates advanced SFB (Selective Fuse Breaking) technology that can trip standard circuit breakers quickly by supplying up to six times the nominal current, ensuring enhanced system protection. With 240 W power output, 92% efficiency, and a robust IP20-rated housing, it supports safe operation in challenging environments. Preventive function monitoring helps detect critical operating states before failures occur, maximizing system uptime. Its compact body (130 x 48 x 125 mm) allows space-saving DIN rail mounting, making it suitable for control cabinets, automation setups, and long-distance DC power distribution. The wide output voltage adjustment range of 18–29.5 V DC and high insulation voltage of 1.5 kV further enhance its reliability in industrial-grade installations.
Key Features
• Wide-range voltage input
• Galvanic isolation
• Reverse polarity protection
• Preventive function monitoring
• Reliable starting of difficult loads with POWER BOOST static power reserve
• Fast tripping of standard circuit breakers with dynamic SFB technology power reserve
• High MTBF > 763000 h (40 °C)
Flexible Use
• Adjustable output voltage
• Can be used in Class I, Division 2, Groups A, B, C, D (Hazardous Location) ANSI-ISA 12.12
Applications
• Changing the voltage level
• Refreshing the output voltage for constant voltage at the end of long cables
• Setup of independent supply systems by electrical isolation
