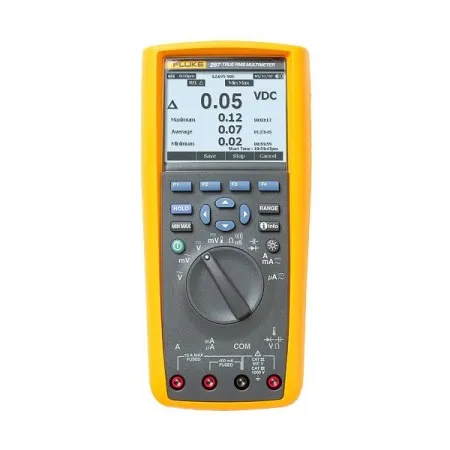

Fluke 287 True RMS Electronics Data Logging Multimeter with TrendCapture

Part Number : 287

Brand :
Fluke

Measure AC/DC voltage and current, resistance, capacitance, frequency, and temperature with this electronics data logging multimeter. TrendCapture quickly graphically displays logged data sessions to determine whether anomalies may have occurred. Additionally, zoom on trend gives the ability to view and analyze TrendCapture data.

View all

KWD 190.830

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 287 OffersFeatures TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times Selectable ac filter (Smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event Large 50,000 count, ¼ VGA display with white backlight Multiple sets of measurement information can be simultaneously displayed at the same time Logging function with expanded memory for unattended monitoring of signals over time Using on-board TrendCapture users can graphically review logged readings without needing a PC stores up to 15,000 recorded events On board help screens for measurement functions Saved measurements allow you to name and recall measurements made in the field Multi-lingual interface Multiple logging sessions possible without download 0.025% basic DC accuracy 100 kHz AC bandwidth Real time clock for automatic time stamping of saved readings True RMS AC voltage and current for accurate measurements on complex signals or non linear loads AC bandwidth specified to 100 kHz Measure up to 10 A (20 A for 30 seconds) 100 mF capacitance range Temperature function Relative mode to remove test lead resistance from low ohms or capacitance measurements Peak capture to record transients as fast as 250 µs

Downloads

Fluke_Multimeter_Datasheet_12.pdf

pdf
Download

Specifications

Range/Resolution
  • 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
  • 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
  • -328 to 2462°F (-200 to 1350°C)
  • 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
  • 1.000 n, 10.00 nF, 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100 mF
  • 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Basic Accuracy
  • 0.025%
  • 0.4% (True RMS)
  • 0.05%
  • 0.6% (True RMS)
  • 1.0%
  • 0.005%
Maximum Voltage Between any Terminal and Earth Ground
1000 V
Battery Type
6 x AA alkaline batteries, NEDA 15A IECLR6
Battery Life
100 hours minimum, 200 hours in logging mode
Operating Temperature
-4 to 131°F (-20 to 55°C)
Storage Temperature
-40 to 140°F (-40 to 60°C)
Relative Humidity
0 to 90% at 32 to 98.6°F (0 to 37°C) 0 to 65% at 98.6 to 113°F (37 to 45°C) 0 to 45% at 113 to 131°F (45 to 55°C)
Electromagnetic compatibility
EMC EN61326–1
Vibration
Random vibration per MIL-PRF-28800F Class 2
Shock
1 meter drop per IEC/EN 61010–1 3rd Edition
Multiple on Screen Displays
Yes
True RMS AC Bandwidth
100 kHz
dBV/dBm
Yes
DC mV Resolution
1 µV
Megohm Range
Up to 500 MΩ
Conductance
50.00 nS
Continuity Beeper
Yes
Battery/Fuse Access
Yes/Yes
Elapse Time Clock
Yes
Time of Day Clock
Yes
Min-max-avg
Yes
Peak
250 µs
Duty Cycle
0.01 to 99.99%
Pulse Width
0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Hold
Yes
Isolated Optical Interface
Yes
Auto/Touch Hold
Yes
Reading Memory
Yes
Log to PC
Yes
Interval/Event Logging
Yes
Logging Memory
Up to 10,000 readings
Dimensions
8.75 x 4.03 x 2.38" (22.2 x 10.2 x 6 cm)
Weight
1.9 lbs (870.9 g)
