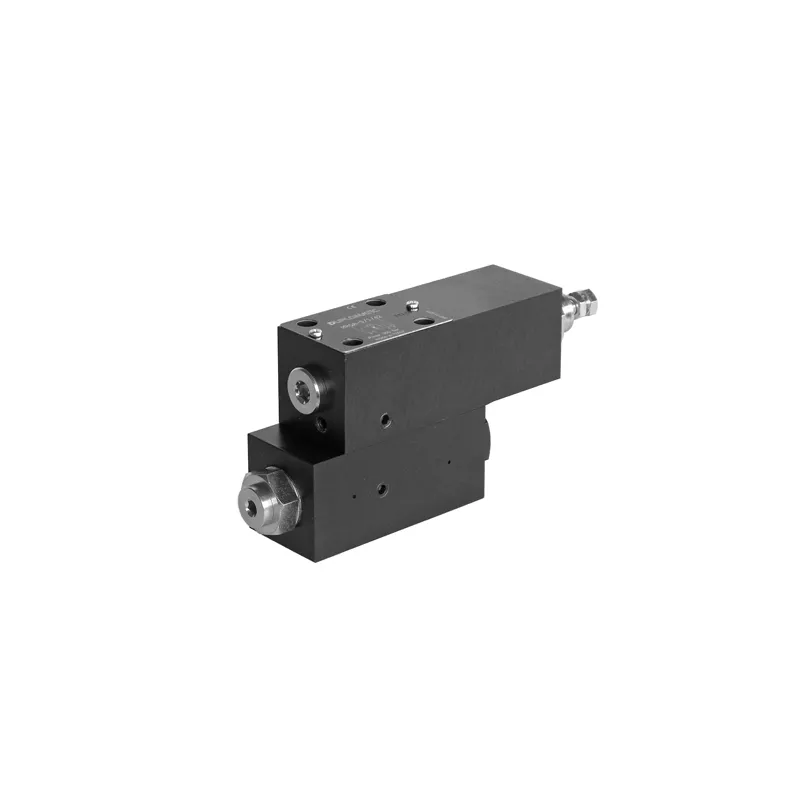

Duplomatic Unloading Valve For Circuit With Accumulator, Type MRQA

Brand :
Duplomatic

Duplomatic Unloading Valve For Circuit With Accumulator, Type MRQA - Unloading valve for circuit with accumulator

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The MRQA is an automatic unloading valve for subplate mounting. This valve is specific for circuits with accumulator, to optimize the energy consumption of the pump when the accumulator has reached the expected pressure level. The MRQA valve acts deviating all the pump flow to the tank when the pressure value adjusted by screw is reached, until the pressure in the working line B drops to a percentage (63% or 75%, depending by the version) of the set pressure. Then, the pump flow to the circuit is restored by means of the check valve until set pressure is reached again. A version for remote check valve (to be ordered separately) is available. The absence of the accumulator, an incorrect pre-charge value or the incorrect calibration of the pressure value on the valve cause valve to switch continuously creating sudden pressure surges in the circuit.

Key Features

• Max Working Pressure is 350 bar • Max Flow Rate is 40 l/min • Adjustment Type is Hex screw or SICBLOC knob • Pressure Adjustment Range is 25 to 280 bar • Mounting Type is Subplate ISO 4401-03 • Accumulator Use is Yes (automatic unloading)

Downloads

Datasheet_MRQA.pdf

pdf
Download

Specifications

Max Working Pressure
350 bar
Max Flow Rate
40 l/min
Adjustment Type
Hex screw or SICBLOC knob
Pressure Adjustment Range
25 to 280 bar
Mounting Type
Subplate ISO 4401-03
Accumulator Use
Yes (automatic unloading)
Mass
MRQA: 3.3 kg, MRQA/C: 4.2 kg
Fluid Temperature Range
-20°C to +80°C
Ambient temperature range
-20°C to +60°C
Fluid Viscosity Range
10 ÷ 400 cSt
Recommended viscosity
25 cSt
Contamination Class
ISO 4406:1999 class 21/19/16
