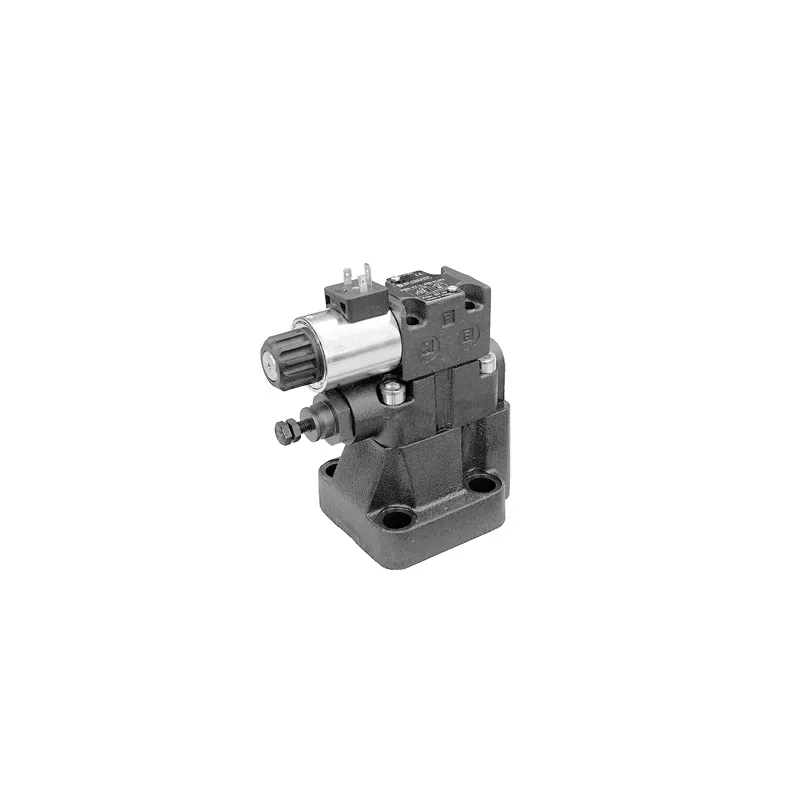

Duplomatic Solenoid Operated Pressure Relief Valves With Unloading And Pressure Selection, Type RQM*-P

Brand :
Duplomatic

Duplomatic Solenoid Operated Pressure Relief Valves With Unloading And Pressure Selection, Type RQM*-P - Solenoid operated pressure relief valves with unloading and pressure selection

View all
Quantity
Description
Specifications
Downloads
Related products

Description

RQM3-P, RQM5-P and RQM7-P are pressure relief valves with solenoid actuated unloading and pressure selection, for subplate mounting, for flowrates up to 500 l/min. Five versions that allow the discharge of the entire flow by a solenoid valve or the selection of up to 3 pressure values are available. The selection of the second and third pressure value is obtained by means of a pressure relief valve placed between the main stage and the solenoid valve. Ports for remote pilot of the valve and for pressure gauge are present. The valves are available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built-in rectifier bridge. Those valves are available in three pressure control ranges up to 350 bar. They are supplied with adjustment screw. Upon request, they can be equipped with a SICBLOC adjustment knob on the main pressure stage. The boot protected manual override is available as option.

Key Features

• Max Working Pressure is 350 bar • Max Flow Rate is RQM3: 200 l/min, RQM5: 400 l/min, RQM7: 500 l/min • Adjustment Type is Hex screw or SICBLOC knob (main pressure) • Solenoid Control is For unloading and selection up to 3 pressure settings • Mounting Type is Subplate ISO 6264 • Fluid Temperature Range is -20°C to +80°C

Downloads

Datasheet_RQM_-P.pdf

pdf
Download

Specifications

Max Working Pressure
350 bar
Max Flow Rate
RQM3: 200 l/min, RQM5: 400 l/min, RQM7: 500 l/min
Adjustment Type
Hex screw or SICBLOC knob (main pressure)
Solenoid Control
For unloading and selection up to 3 pressure settings
Mounting Type
Subplate ISO 6264
Fluid Temperature Range
-20°C to +80°C
Ambient temperature range
-20°C to +50°C
Fluid Viscosity Range
10 ÷ 400 cSt
Recommended viscosity
25 cSt
Contamination Class
ISO 4406:1999 class 20/18/15
Mass
RQM3: 3.3 kg, RQM5: 4.2 kg, RQM7: 5.0 kg
