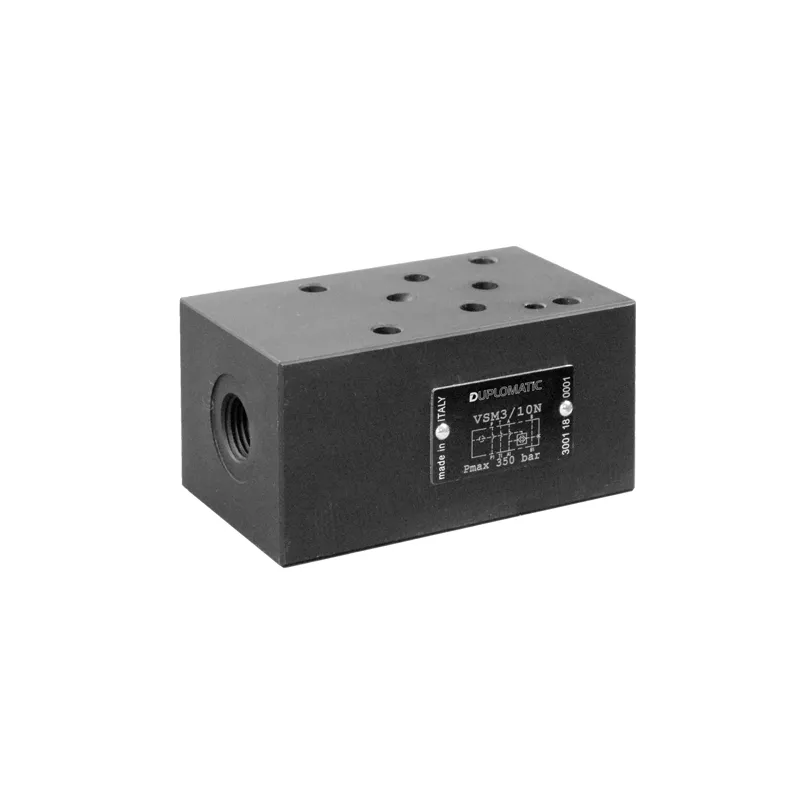

Duplomatic Shuttle Valve, Max flow 40 l/min, Mounting style stackable, Type VSM3
Brand :
![Duplomatic]()
Shuttle valve. The VSM3 pressure shuttle valve by Duplomatic is designed to automatically divert the pilot signal from path A or B — selecting the one with the higher pressure — to the 1/4” BSP outlet located on the side of the body.
View all
Description
The VSM3 pressure shuttle valve by Duplomatic is designed to automatically divert the pilot signal from path A or B — selecting the one with the higher pressure — to the 1/4” BSP outlet located on the side of the body. Thanks to its stackable design, it integrates easily into hydraulic systems and is ideal for applications requiring accurate and reliable pressure management within control circuits.
Key Features
• Valve type is Double Pilot Operated Check Valve • Series is DFP • Mounting is ISO 4401-03 Subplate Mounting • Flow direction is Flow in one direction, blocks reverse • Pressure release is External pilot pressure opens the valve • Max operating pressure is 320 barDownloads
Specifications
