Duplomatic Proportional Pressure Relief Valve, Direct Operated, With On-Board Electronics For Open Loop, Type PDE3G*
Brand :
![Duplomatic]()
Proportional pressure relief valves, direct operated, with on-board electronics for open loop
View all
Description

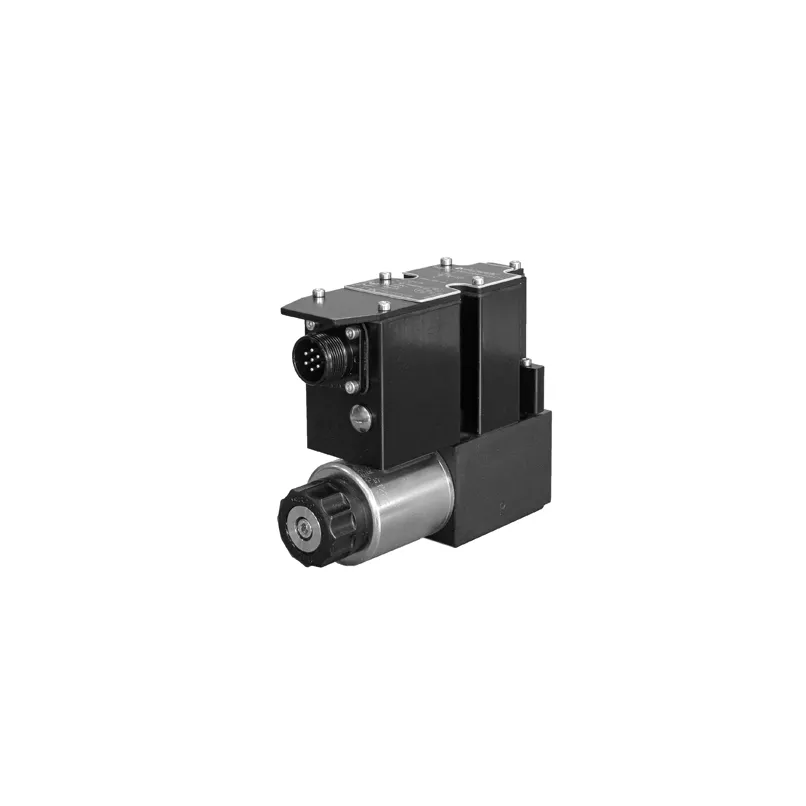

DESCRIPTION The PDE3G, PDE3GL, PDE3GH are proportional pressure control valves, direct operated, with on-board electronics, for subplate mounting. They are suitable to pilot two-stage valves, for pressure control in hydraulic circuits. Five pressure regulation ranges are available, up to 350 bar. On-Board Electronics Options for open loop: G Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control. GL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity. GH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.
Key Features
• Integrated electronics with closed-loop control • High accuracy with < ±1% repeatability • Fieldbus signal compatibility (0–10 V, 4–20 mA) • Rugged construction with IP67 protection • Multiple pressure range configurationsDownloads
