Duplomatic Proportional Directional Valve, Pilot Operated, With On-Board Electronics And Feedback In Closed Loop, Type DDPE*J, DDPE*JL, AND DDPE*JH

Brand :
Duplomatic

Proportional directional valve, pilot operated, with on-board electronics and feedback in closed loop

View all
Quantity
Description
Specifications
Downloads
Related products

Description

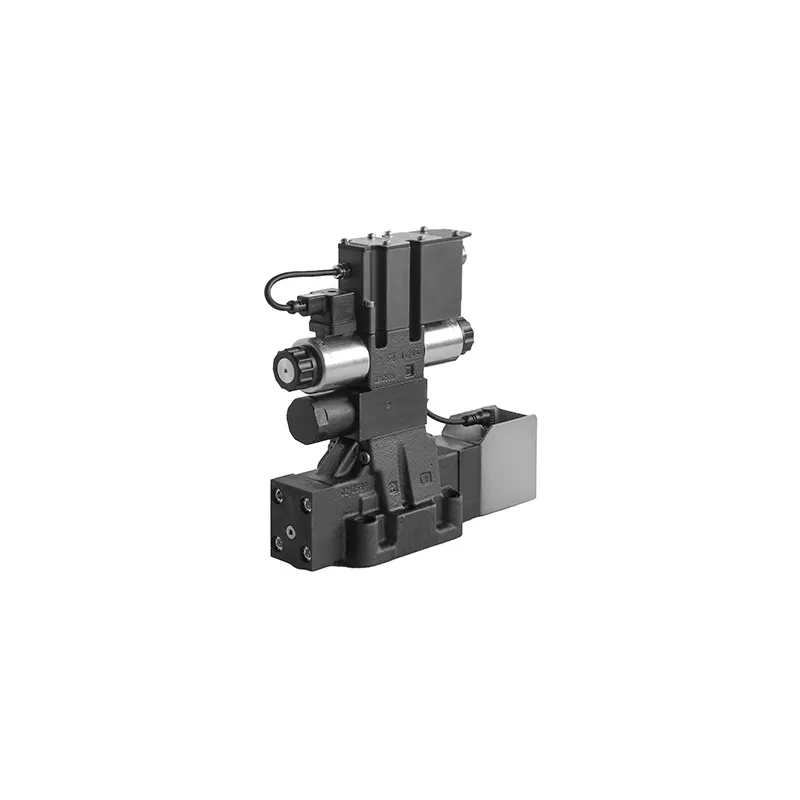

The DDPE*J, DDPE*JL, and DDPE*JH are proportional directional valves with directional pilot control in closed-loop. These valves are equipped with on-board electronics and position feedback, providing precise control for a variety of industrial systems. They are designed for mounting on a plate and are available in sizes from ISO 4401-05 to ISO 4401-10, with oversized ports for increased flow capacity. Specific Configurations for Plastic Molding Applications: In addition to the classic configurations with closed center and open center, the DDPE*J* valves offer specific spools for injection cycles and other plastic processing applications, such as regenerative circuits and alternate p/Q controls, which are crucial for precise and efficient operation in molding cycles. Whether for high-speed cycles or complex molding processes, the DDPE*J series ensures reliable and accurate control in these demanding applications. The DDPE*J valves are always equipped with a pressure-reducing valve set to 30 bar for the pilot. Drainage can be either internal or external, with the external drainage option offering greater tolerance to return pressure on the T-line for optimized performance. On-Board Electronics Options: J Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control. JL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity. JH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.

Downloads

Datasheet_DDPE_J_ DDPE_JL_ AND DDPE_JH.pdf

pdf
Download

Specifications

Control Style
Closed-loop with LVDT feedback and on-board electronics
Reproducibility
≤ 5%, Hysteresis < 0.2%, Repeatability < ±0.1%
Nominal Flow
50–75 l/min at Δp 10 bar
Protection
IP65/IP67 with proper connectors
Temp Range
-20°C to +60°C ambient, -20°C to +80°C fluid
Electrical Input
±10 V or 4–20 mA command, 24 V DC supply
Communication
LIN-bus diagnostics interface
Mounting
ISO 4401-05 CETOP 05 standard
Spool Center Options
Closed, open, zero overlap, regenerative
Spool Center Types
Available C, A, Z, R for application tuning
Safety Features
Integrated power shutdown on fault
LED Monitoring
Multi-color diagnostic LED status
Electronics Design
Closed-loop with internal EEPROM config memory
