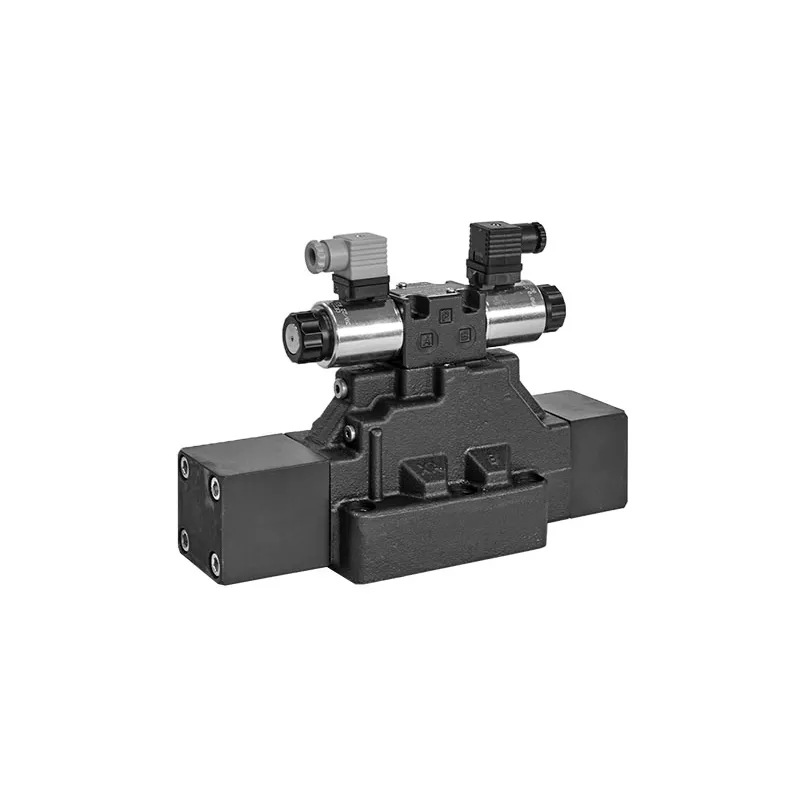

Duplomatic Proportional Directional Valve, Pilot Operated, Type DSPE*

Brand :
Duplomatic

Proportional directional valve, pilot operated

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The DSPE5, DSPE5R, DSPE7, DSPE8, DSPE10 and DSPE11 are proportional directional valves, pilot operated, for subplate mounting. They are used to control position and speed of hydraulic actuators. Spools with open center, closed center and for regenerative circuits are available for each size. Pilot suppy can be internal, internal with built-in pressure reducing valve, or external. The drain can be Internal or external. These valves can be controlled directly by a current-controlled power supply, or by an electronic card, to be order separately. The DSPE5 valve is interchangeable with the older E4E Duplomatic models.

Downloads

Datasheet_DSPE_.pdf

pdf
Download

Specifications

Actuation type
Direct operated with feedback and digital electronics
Mounting Interface
ISO 4401-03
Nominal Flow
6 l/min
Voltage Supply
24 V DC ±25%
Electrical Features
Command ±10 V or 4–20 mA, LVDT feedback
Monitoring
Spool position feedback on pin F
Protection Class
IP65 / IP67
Valve Weight
1.6 kg (single solenoid), 2.1 kg (double solenoid)
Sealing Options
NBR or FPM for aggressive fluids
Feedback Control
Built-in LVDT with spool control loop
LED Diagnostics
Visual LED error status and operation signal
Manual override
Boot-protected mechanical override standard
Spool Design
Precision machined for fine metering applications
