Duplomatic Proportional Directional Valve, Direct Operated, Type DSE3

Brand :
Duplomatic

Proportional directional valve, direct operated

View all
Quantity
Description
Specifications
Downloads
Related products

Description

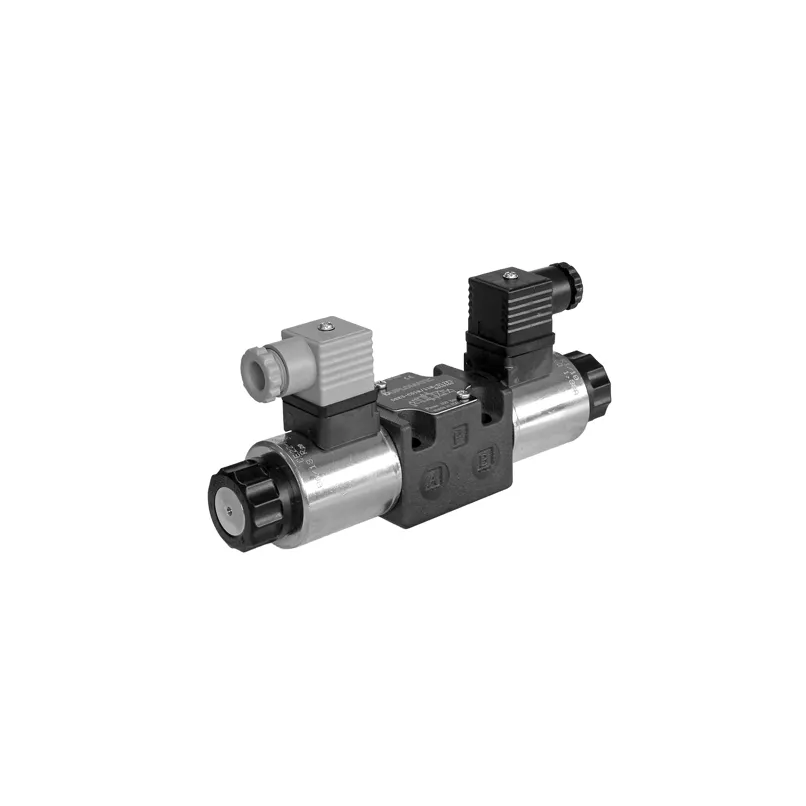

The DSE3 is a proportional directional valve, direct operated, for subplate mounting. It is used to control the position and speed of the hydraulic actuators. Spools with open or closed center are available for several nominal flow rates. DSE3 valves range also includes versions for high IP degree and corrosion resistance. It can be controlled directly by a current-controlled power supply, or by an electronic card, to be order separately.

Downloads

Datasheet_DSE3.pdf

pdf
Download

Specifications

Valve Type
Direct Operated Proportional Directional Valve
Mounting Standard
ISO 4401-03, CETOP 4.2-4-03-350
Control Method
Current-controlled with optional external electronic card
Manual Override Options
Multiple styles including knob, screw, lever
Pressure Ratings
P/A/B: 350 bar, T: 210 bar
Flow Capacity
1 to 26 l/min (depending on spool)
Flow Tuning
Continuously variable via solenoid current
Response Time
40–50 ms depending on direction
Seal type
NBR (optional FPM for special fluids)
Electrical Connections
EN 175301-803 (K1), DEUTSCH DT04 (K7)
Recommended viscosity
25 cSt
Contamination Degree
ISO 4406:1999 class 18/16/13
Mass (Single Solenoid Valve)
1.5 kg
Mass (Double Solenoid Valve)
2.0 kg
Electrical Protection (K1)
IP65
Electrical Protection (K7)
IP65/67
Nominal Voltage
12 V DC / 24 V DC
Nominal Current
1.88 A / 0.86 A
Duty Cycle
100%
Class of Protection
Class H (coil), Class F (impregnation)
