Duplomatic Proportional 3- Port Pressure Reducing Valve, With Onboard Electronics In Open Loop, Type DZCE*G
Brand :
![Duplomatic]()
Description

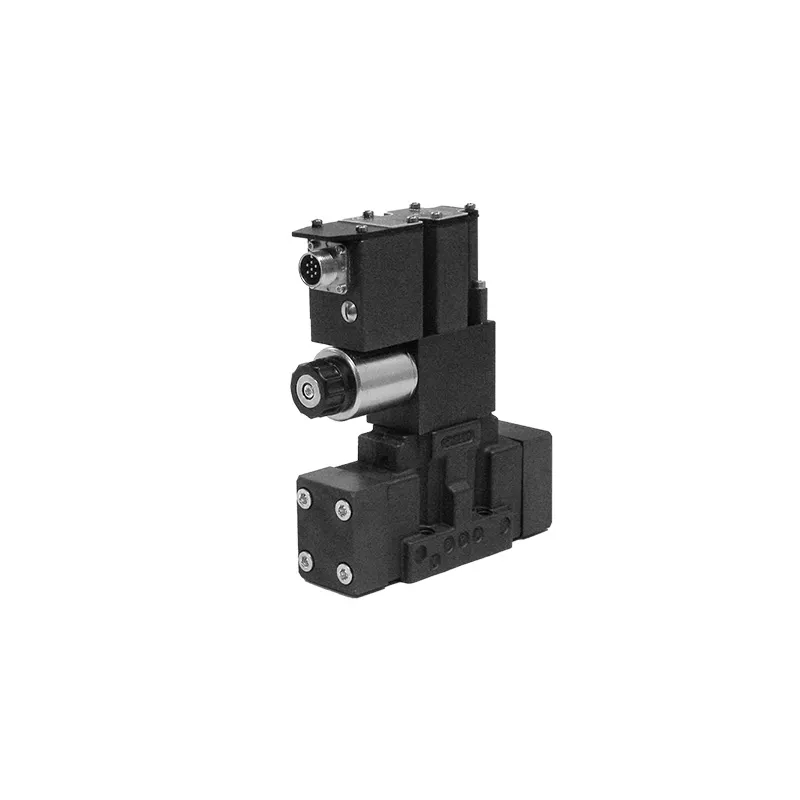

DESCRIPTION The DZCE5G, DZCE5RG, DZCE7G and DZCE8G are 3-port proportional pressure reducing valves with integrated electronics, pilot operated, for subplate mounting. These valves act as pressure reducing valves that, besides reducing the pressure from line P to working line A, allow the flow to return from working line A to discharge T when a pressure greater than the set value is generated in the downstream circuit. The on-board electronics has analogue interface with current or voltage reference signal with connection 6 pin + PE. The valves are easy to install. The digital card manages the setting directly.
Key Features
• Smart proportional relief valve with integrated electronics • Fast response under 150 ms • Robust enclosure for industrial environments • Coil insulation for high heat resistance • Wide flow and pressure compatibilityDownloads
Specifications
