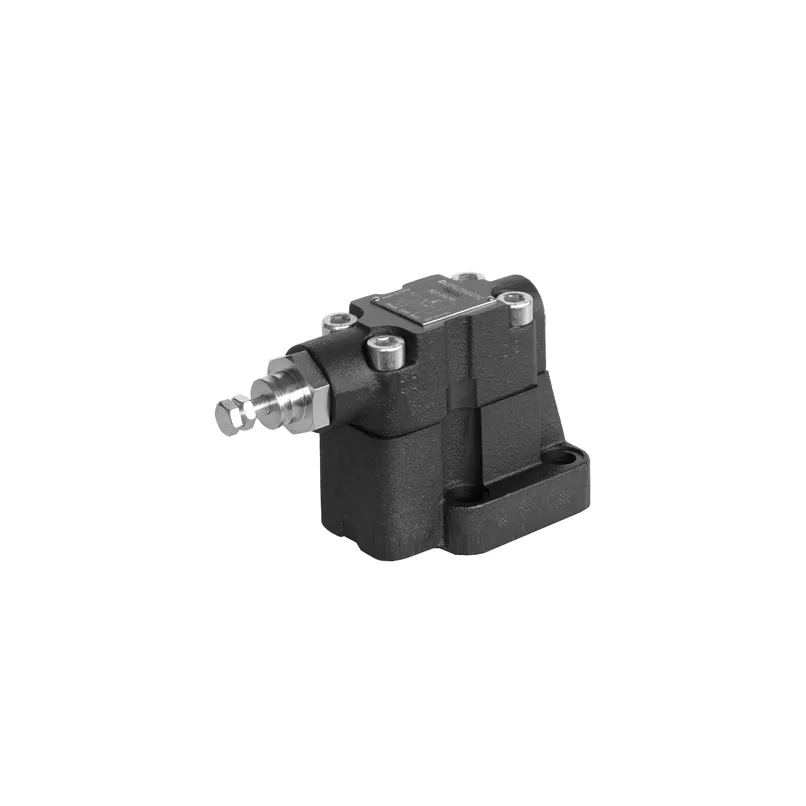

Duplomatic Pressure Relief Valves, Type RQ*P

Brand :
Duplomatic

Duplomatic Pressure Relief Valves, Type RQ*P - Pressure relief valves

View all
Quantity
Description
Specifications
Downloads
Related products

Description

RQ3-P, RQ5-P and RQ7-P are pilot operated pressure relief valves for subplate mounting. The main stage is with shutter and cone seal. Ports for remote pilot of the valve and for pressure gauge are present. Those valves are available in three pressure control ranges up to 350 bar. They are supplied with a hexagonal head adjustment screw. Upon request, they can be equipped with a SICBLOC adjustment knob.

Key Features

• Max Working Pressure is 350 bar • Max Flow Rate is RQ3-P: 200 l/min, RQ5-P: 400 l/min, RQ7-P: 500 l/min • Adjustment Type is Hex screw or SICBLOC knob • Pressure Adjustment Range is Up to 350 bar • Mounting Type is Subplate mounting ISO 6264 • Mass is RQ3: 3.5 kg, RQ5: 4.3 kg, RQ7: 6.5 kg

Downloads

Datasheet_RQ_P.pdf

pdf
Download

Specifications

Max Working Pressure
350 bar
Max Flow Rate
RQ3-P: 200 l/min, RQ5-P: 400 l/min, RQ7-P: 500 l/min
Adjustment Type
Hex screw or SICBLOC knob
Pressure Adjustment Range
Up to 350 bar
Mounting Type
Subplate mounting ISO 6264
Mass
RQ3: 3.5 kg, RQ5: 4.3 kg, RQ7: 6.5 kg
Surface Type
ISO 6264-06/08/10 CETOP
Fluid Temperature Range
-20°C to +80°C
Ambient temperature range
-20°C to +60°C
Fluid Viscosity Range
10 ÷ 400 cSt
Recommended viscosity
25 cSt
Contamination Class
ISO 4406:1999 class 20/18/15
