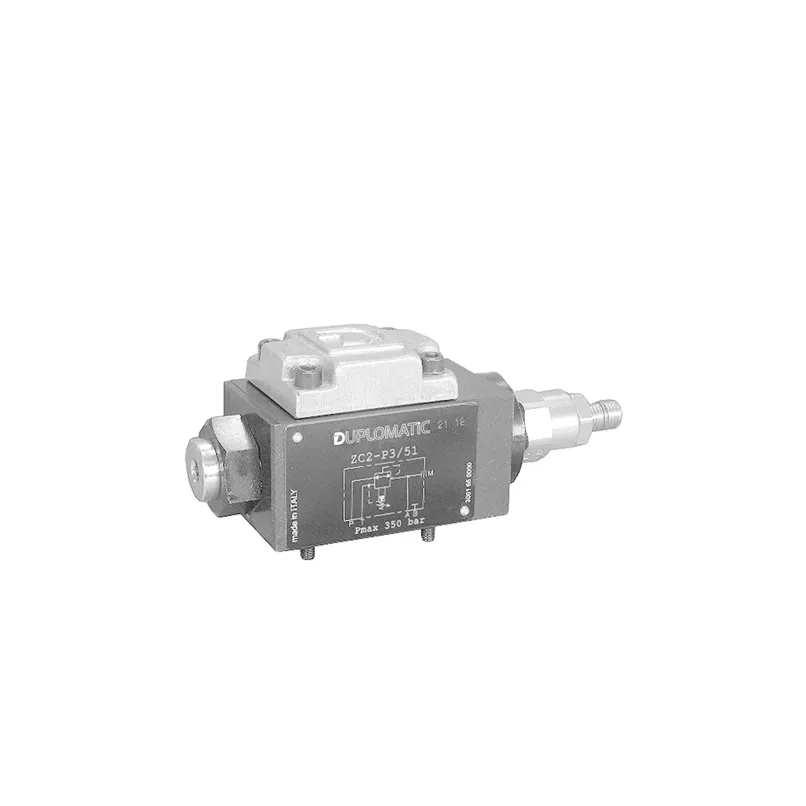

Duplomatic Pressure Reducing Valves, Three-Port, Type ZC2

Brand :
Duplomatic

Duplomatic Pressure Reducing Valves, Three-Port, Type ZC2 - Pressure reducing valves, three-port

View all
Quantity
Description
Specifications
Downloads
Related products

Description

ZC2 are 3-port pressure reducing valves for subplate mounting. They are used to reduce pressure in the working line for (i.e. for a load balancing or for a hydraulic counterweight) and relief the exceeding to the tank line. They are designed with ISO 4401 mounting interface. The B port is not employed. The ZC2 valve is available in three pressure control ranges up to 210 bar. The pressure is adjustable by means of a socket hex adjustment screw or by a knob.

Key Features

• Valve Type is Three-Port Pressure Reducing Valve • Series is ZC2 • Maximum Operating Pressure is 250 bar • Maximum Flow Rate is 40 l/min • Drain Flow is 0.8 l/min (0.4 l/min reduced) • Mounting Type is Subplate Mounting

Downloads

Datasheet_ZC2.pdf

pdf
Download

Specifications

Valve Type
Three-Port Pressure Reducing Valve
Series
ZC2
Maximum operating pressure
250 bar
Maximum Flow Rate
40 l/min
Drain Flow
0.8 l/min (0.4 l/min reduced)
Mounting Type
Subplate Mounting
Ambient temperature range
-20°C to +60°C
Fluid Temperature Range
-20°C to +80°C
Fluid Viscosity Range
10 to 400 cSt
Fluid Contamination
ISO 4406:1999 Class 20/18/15
Adjustment Range
5–210 bar
Weight
Approx. 4 kg
