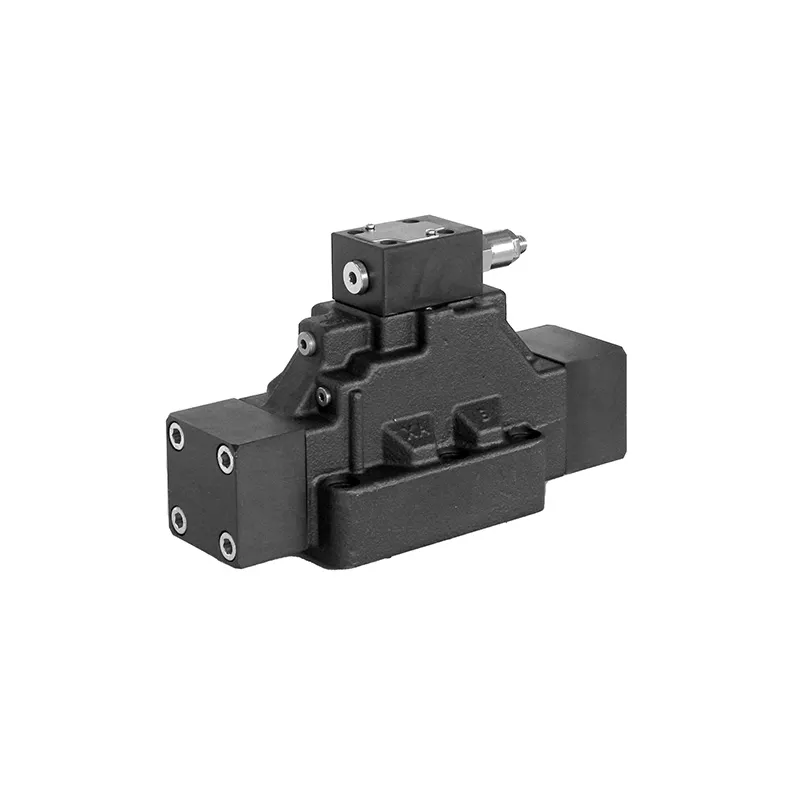

Duplomatic Pressure Reducing Valves, Three-Port, Type DZC*

Brand :
Duplomatic

Duplomatic Pressure Reducing Valves, Three-Port, Type DZC* - Pressure reducing valves, three-port

View all
Quantity
Description
Specifications
Downloads
Related products

Description

DZC5, DZCR5, DZC7 and DZC8 are 3-port pressure reducing valves for subplate mounting. They are used to reduce pressure in the working line for (i.e. for a load balancing or for a hydraulic counterweight) and relief the exceeding to the tank line. They are designed with ISO 4401 mounting interface, but B port is not employed. DZC5, DZCR5, DZC7 and DZC8 are available in four pressure adjustment ranges up to 280 bar. The pressure is adjustable by means of a socket hex adjustment screw or by a knob.

Key Features

• Valve Type is Three-Port Pressure Reducing Valve • Series is DZC • Maximum Operating Pressure is 250 bar • Maximum Flow Rate is 90 l/min • Drain Flow is 0.8 l/min • Adjustment Range is 5–210 bar

Downloads

Datasheet_DZC_.pdf

pdf
Download

Specifications

Valve Type
Three-Port Pressure Reducing Valve
Series
DZC
Maximum operating pressure
250 bar
Maximum Flow Rate
90 l/min
Drain Flow
0.8 l/min
Adjustment Range
5–210 bar
Mounting Type
Subplate Mounting
Temperature Range
-20°C to +80°C
Viscosity Range
10 to 400 cSt
Fluid compatibility
HL or HM mineral oils
Contamination Degree
ISO 4406:1999 Class 20/18/15
Seals
NBR or FPM (optional)
