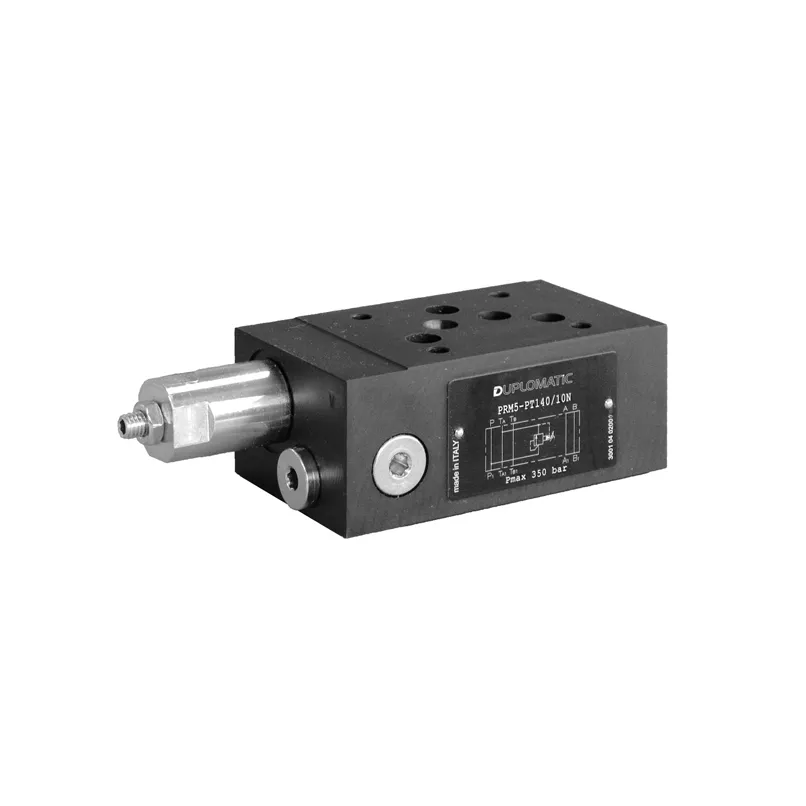

Duplomatic Pilot Operated Pressure Relief Valve, Type PRM5

Brand :
Duplomatic

Duplomatic Pilot Operated Pressure Relief Valve, Type PRM5 - Pilot operated pressure relief valve

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The PRM5 valve is a stackable pilot operated pressure relief valve. It is available with pressure limitation on P, A, B, both A and B, with limitation on A and B and cross discharge, in four pressure regulation ranges. This valve is used as a hydraulic circuit pressure limiting device. It is supplied with a hexagon socket adjusting screw and locking nut. The version with knob is also available.

Key Features

• Valve Type is Pilot Operated Pressure Relief Valve • Mounting Interface is ISO 4401-05 • Max Operating Pressure is 350 bar • Max Flow is 120 l/min • Ambient Temp Range is -20°C to +60°C • Fluid Temp Range is -20°C to +80°C

Downloads

Datasheet_PRM5.pdf

pdf
Download

Specifications

Valve Type
Pilot Operated Pressure Relief Valve
Mounting Interface
ISO 4401-05
Max Operating Pressure
350 bar
Max flow
120 l/min
Ambient Temp Range
-20°C to +60°C
Fluid Temp Range
-20°C to +80°C
Fluid Viscosity
10–400 cSt
Weight
2.8–3 kg
Adjustment Types
Screw / Knob
Adjustment Ranges
70 to 350 bar
Contamination Class
ISO 4406 20/18/15
Seals
NBR / FPM
