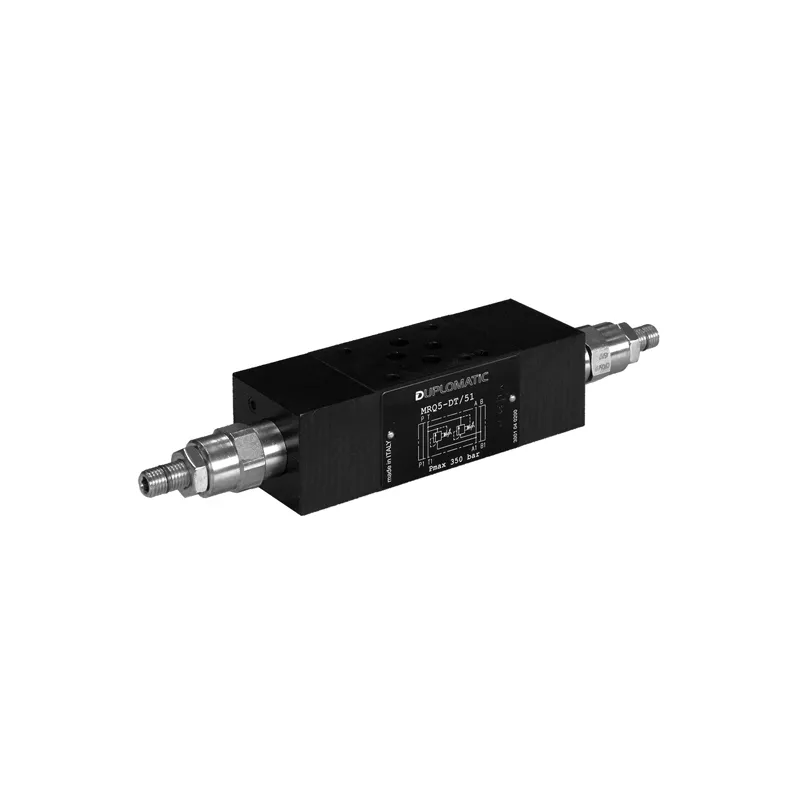

Duplomatic Pilot Operated Pressure Relief Valve, Type MRQ

Brand :
Duplomatic

Duplomatic Pilot Operated Pressure Relief Valve, Type MRQ - Pilot operated pressure relief valve

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The MRQ valve is a pilot operated pressure relief valve, stackable. It is available with pressure limitation in port P, A, B, both A and B, with limitation on A and B and cross discharge, or with limitation in B and discharge in A, in four pressure adjustment ranges. This valve is used as a hydraulic circuit pressure limiting device. It is supplied with a hexagonal socket screw, locking nut and limitation of the maximum adjustment travel or with adjustment knob.

Key Features

• Valve Type is Pilot Operated Pressure Relief Valve • Mounting Type is Modular, ISO 4401 • Operating Pressure is 350 bar • Flow Rate is Up to 300 l/min • Series is 20 • Adjustment Range is 35 to 350 bar

Downloads

Datasheet_MRQ.pdf

pdf
Download

Specifications

Valve Type
Pilot Operated Pressure Relief Valve
Mounting Type
Modular, ISO 4401
Operating pressure
350 bar
Flow Rate
Up to 300 l/min
Series
20
Adjustment Range
35 to 350 bar
Ambient temperature
-20°C to +60°C
Fluid Temp Range
-20°C to +80°C
Fluid Viscosity
10–400 cSt
Mass
5.6 kg
Seals
NBR / FPM
Port Types
Pressure P, Return T
