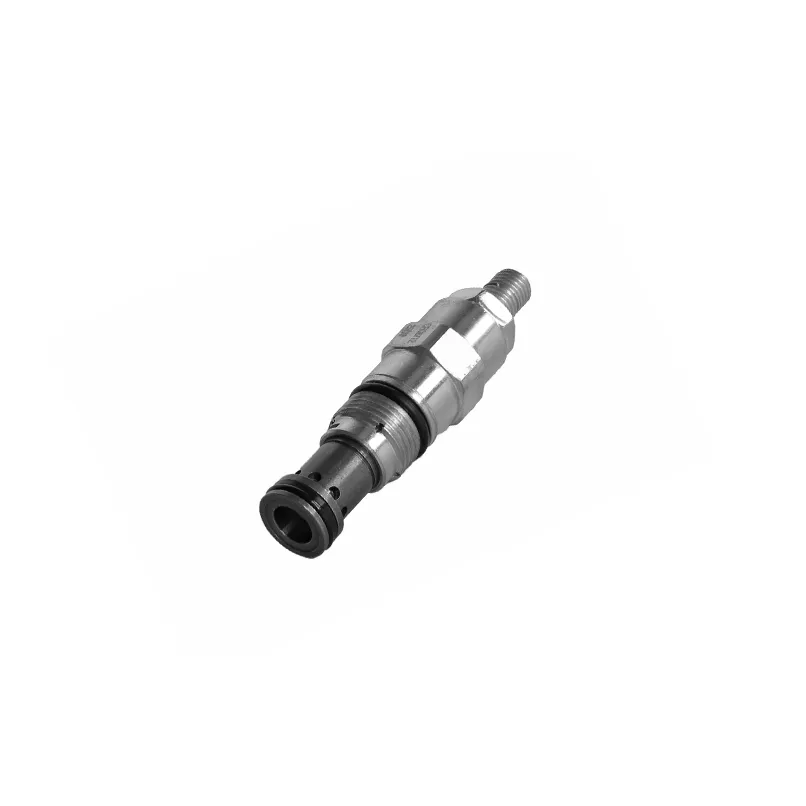

Duplomatic Pilot Operated Pressure Control Valve, Type CRQ

Brand :
Duplomatic

Duplomatic Pilot Operated Pressure Control Valve, Type CRQ - Pilot operated pressure control valve

View all
Quantity
Description
Specifications
Downloads
Related products

Description

CRQ are pilot operated pressure relief valves, cartridge type, for block or manifold application. They control the maximum pressure of the hydraulic circuit. The CRQ valve is available in four pressure control ranges up to 350 bar. The pressure is adjustable by means of a socket hex adjustment screw or by a knob.

Key Features

• Max Working Pressure is 350 bar • Max Flow Rate is 100 l/min • Pressure Adjustment Range is Up to 350 bar • Seat Type is D-10C • Adjustment Type is Countersunk hex screw with locking nut and limiter • Surface Treatment is Electrolytic zinc covering Fe/Zn 8/B ISO 2081

Downloads

Datasheet_CRQ.pdf

pdf
Download

Specifications

Max Working Pressure
350 bar
Max Flow Rate
100 l/min
Pressure Adjustment Range
Up to 350 bar
Seat Type
D-10C
Adjustment Type
Countersunk hex screw with locking nut and limiter
Surface Treatment
Electrolytic zinc covering Fe/Zn 8/B ISO 2081
Fluid Temperature Range
-20°C to +80°C
Ambient temperature range
-20°C to +60°C
Fluid Viscosity Range
10 ÷ 400 cSt
Recommended viscosity
25 cSt
Contamination Class
ISO 4406:1999 class 20/18/15
Mass
0.16 kg
Mounting Type
Cartridge type
Hydraulic Fluid Compatibility
HL or HM mineral oils (ISO 6743-4), NBR seals standard
Tightening Torque
45 ÷ 50 Nm (Spanner 22)
Seal Types
OR type 2056 (14.00x1.78), OR type 3062 (15.54x2.62)
