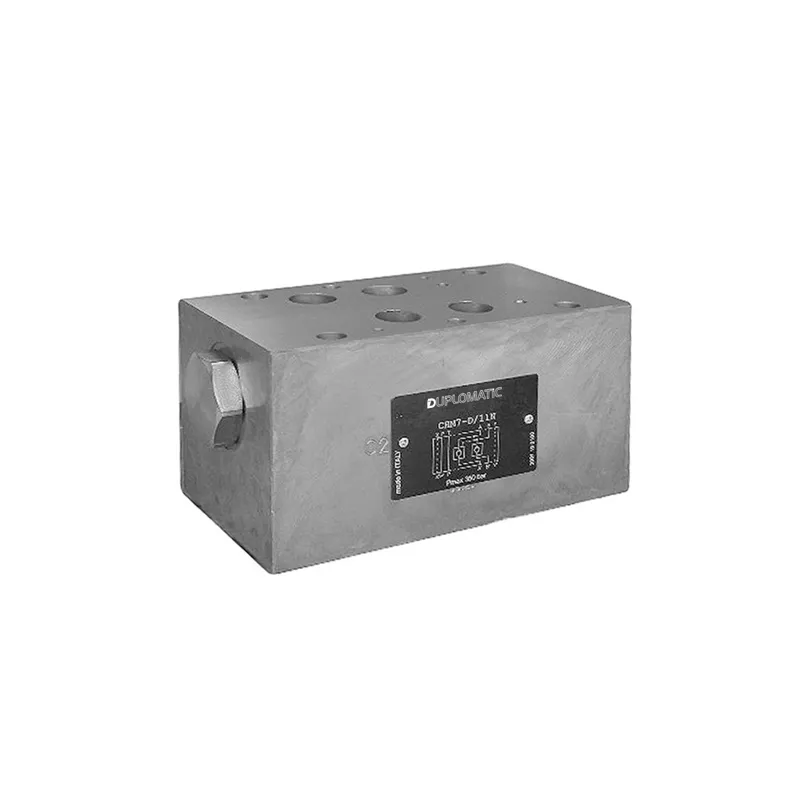

Duplomatic Pilot Operated Check Valve, Max flow 300 l/min, Mounting style stackable, Type CHM7
Brand :
![Duplomatic]()
Pilot operated check valve. The CHM7 valve is a pilot-operated non-return valve with spring closing with cone on edge seals, in which pilot pressure allows free flow in both directions.
View all
Description
The CHM7 valve is a pilot-operated non-return valve with spring closing with cone on edge seals, in which pilot pressure allows free flow in both directions. Stackable design.
Key Features
• Valve type is Double Pilot Operated Check Valve • Series is DFP • Mounting is ISO 4401-03 Subplate Mounting • Flow direction is Flow in one direction, blocks reverse • Pressure release is External pilot pressure opens the valve • Max operating pressure is 320 barDownloads
Specifications
