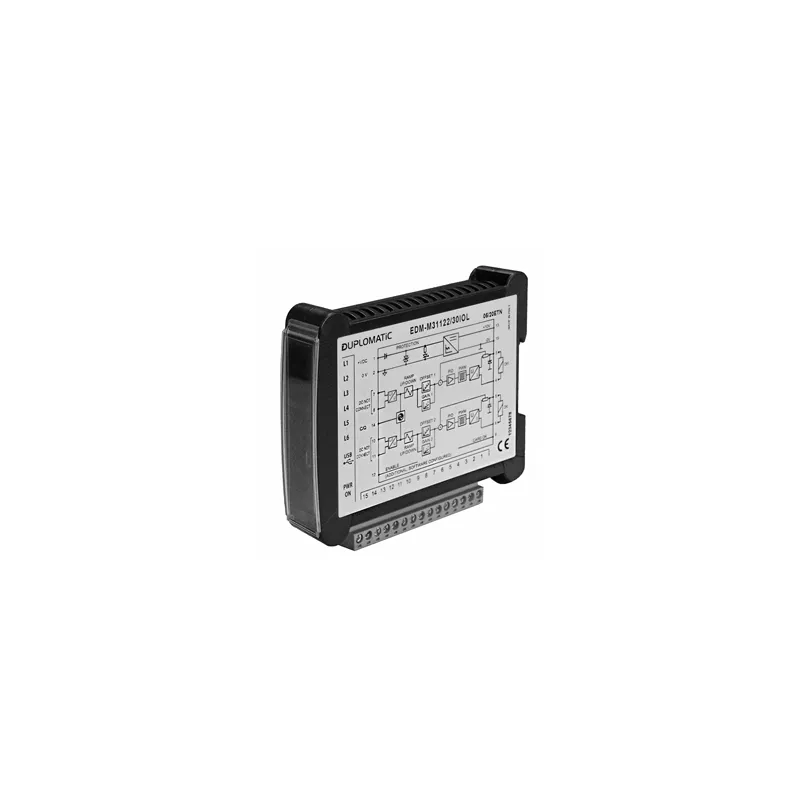

Duplomatic Io-Link Digital Amplifier For Open Loop Proportional Valves, Type EDM-M*IOL

Brand :
Duplomatic

IO-link digital amplifier for open loop proportional valves - The Edm-M1, Edm-M2 And Edm-M3 Cards Are Digital Amplifier For Open Loop Proportional Valves Control In Io-Link Networks

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Edm-M1, Edm-M2 And Edm-M3 Cards Are Digital Amplifier For Open Loop Proportional Valves Control In Io-Link Networks. Rail Mounting Din En 50022. The Card Supplies The Current To The Solenoid According To The Reference Signal And Independently Of Temperature Variations Or Load Impedance. The Card Is Available In Versions For The Control Of A Single Solenoid Valve (M1), A Double Solenoid Valve (M2) Or Two Single Solenoid Valves (M3) By Two Independent Channels. Each Version Is Available With Different Maximum Current Settings And Switching Frequencies (Pwm), Optimized According To The Relevant Valve. The Reference Signal Is Digital Via Io-Link. Temperature And Working Hours Are Monitored Via Io-Link. The Front Panel Houses The Leds For Diagnostics And Card Operation And A Micro-Usb Port For Connection To The Ebc Software For Diagnostics. Configuration From The Io-Link Master.

Downloads

Datasheet_EDM-M_IOL.pdf

pdf
Download

Specifications

Product Type
Digital Amplifier for Proportional Valves
Model Series
EDM-M*IOL
Control Type
Open Loop with PWM Stage
Power Supply
19 to 30 V DC
Max Input Current
4.5 A
Output Current
Max 4.5 A
Digital Interface
IO-Link
Protection degree
IP20
Operating Temperature
-20°C to +70°C
Housing material
ABS
Mounting Type
DIN Rail EN 50022
Mass
0.15 kg
