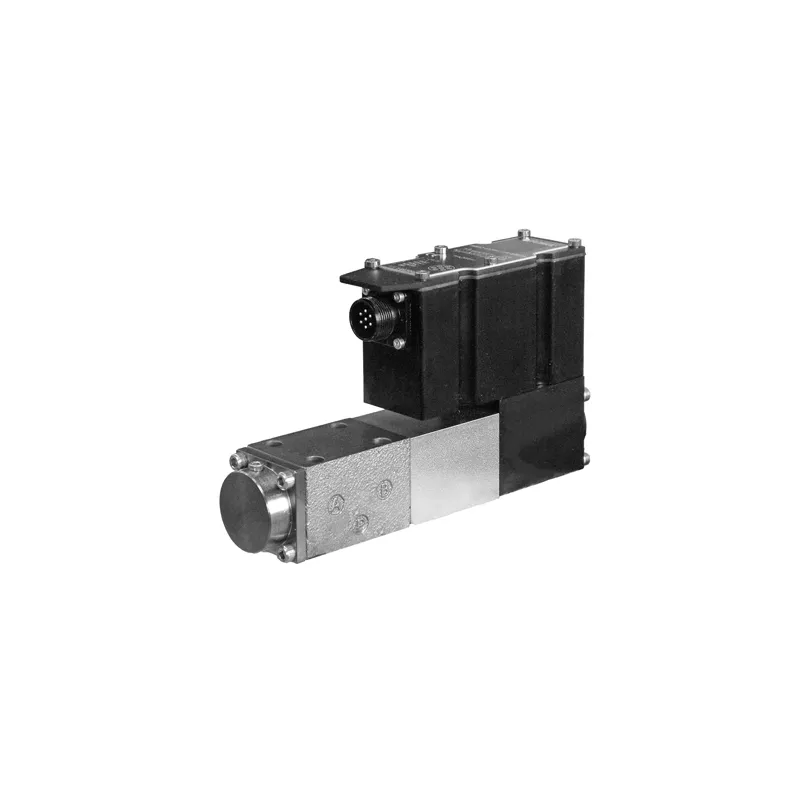

Duplomatic High Response Directional Servoproportional Valve, Type DXE3J

Brand :
Duplomatic

High response directional servoproportional valves

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The DXE3J and DXE3JH valve are a 4-ports / 4 positions (3 + fail-safe position) servo-proportional valves whose the spool moves inside a sleeve. they are operated by a high response solenoid, that do not require pilot pressure. The spool position is controlled by a LVDT linear transducer in closed loop, which guarantee high precision and repeatability. They are suitable for applications in closed loop control systems of position, speed and pressure. Without power supply or enabling command, the spool is kept into the safety position by springs. Two types of on-board electronics for closed loop are avaiable: The J version is our standard electronics with analogue interface with current or voltage reference signal with connection 6 pin + PE. The JH version has interface for fieldbus communication type EtherCAT, Ethernet/IP, Profinet with 11 pin M12 connection. The DXE3JK3 version for use in potentially explosive atmospheres, compliant with the ATEX Directive 2014/34/EU, classification II 3GD, is also available.

Downloads

Datasheet_DXE3J.pdf

pdf
Download

Specifications

Type
High response directional servoproportional valve, closed loop
Series
DXE3J
Mounting
Subplate, 4 ports / 4 positions
Spool Position Sensing
LVDT linear transducer, closed loop
Fail-Safe
Spring return to safety position without power
On-Board Electronics
J: analog interface; JH: fieldbus (EtherCAT, Ethernet/IP, Profinet)
Response Time
High dynamic, for position, speed, and pressure control
Application
Closed loop control for position, speed, pressure
Classification
II 3GD, ATEX Directive 2014/34/EU (DXE3JK3 variant)
Certification
ATEX (for DXE3JK3)
Power Supply
See datasheet for voltage requirements
Temperature Range
See data sheet 02 500
Protection
IP65 (typical for industrial valves)
