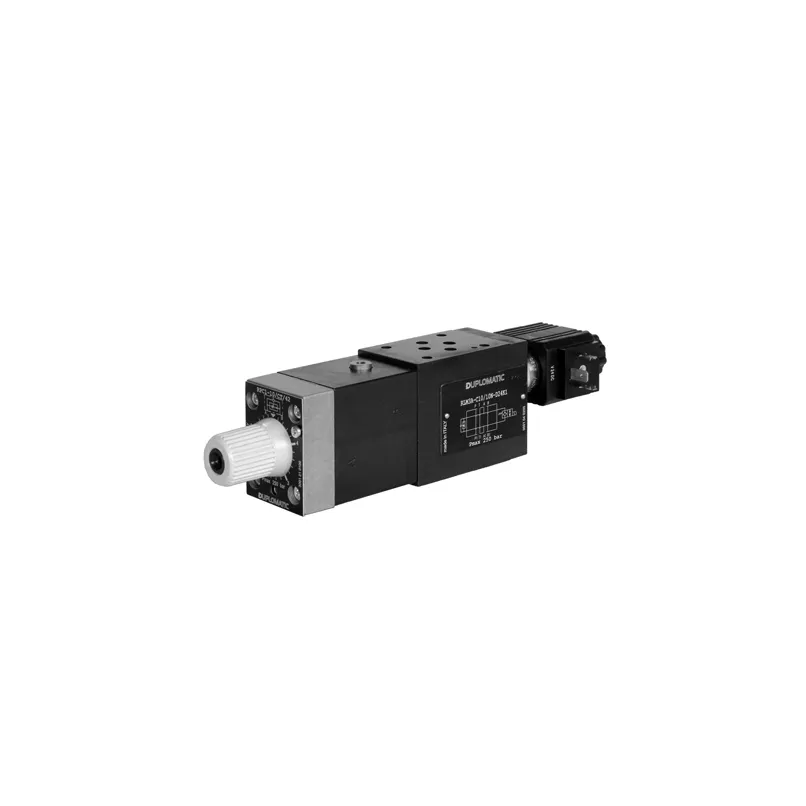

Duplomatic Electric Fast/Slow Speed Selection Valve, Type RLM3

Brand :
Duplomatic

Electric fast/slow speed selection valve. Designed for precise flow regulation in hydraulic and industrial systems. Key features include durable construction, reliable operation, and easy integration.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The RLM3 valve is a compact group in stackable version for fast-slow flow control. It is actuated by a solenoid valve KT08 type (catalog 43105); flow regulation is carried out with a compensated flow control valve RPC1 (see catalog 32200) with six regulation ranges.

Key Features

• Valve Type Pressure Compensated Flow Regulator with Check Valve • Mounting Type Line Mounting • Max Operating Pressure 250 bar • Controlled Flow Range 10–80 l/min • Check Valve Cracking Pressure 0.5 bar • Port Threads 1” BSP

Downloads

Datasheet_RLM3.pdf

pdf
Download

Specifications

Valve Type
Pressure Compensated Flow Regulator with Check Valve
Mounting Type
Line Mounting
Max Operating Pressure
250 bar
Controlled Flow Range
10–80 l/min
Check Valve Cracking Pressure
0.5 bar
Port Threads
1” BSP
Viscosity Range
10 to 400 cSt
Temperature Range
-20°C to +80°C
Ambient temperature
-20°C to +60°C
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel body, hardened internals
Mass
3.2 kg
Seals
NBR (standard), FKM (optional)
