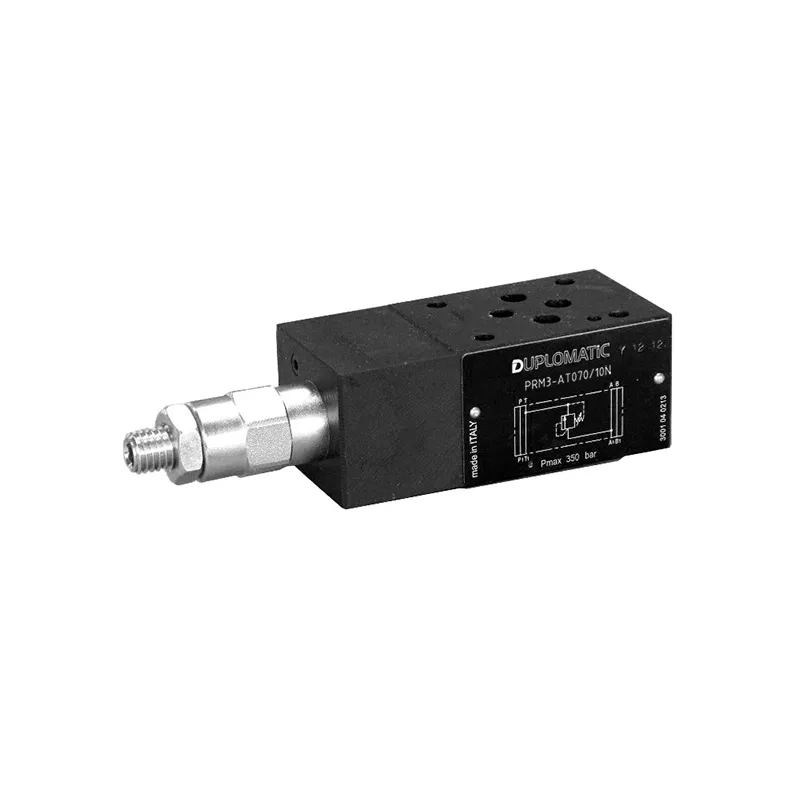

Duplomatic Direct Operated Pressure Relief Valve, Type PRM3

Brand :
Duplomatic

Duplomatic Direct Operated Pressure Relief Valve, Type PRM3 - Direct operated pressure relief valve

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The PRM3 valve is a direct operated pressure relief valve, stackable. It is available with pressure limitation on P, A, B, both A and B, with limitation on A and B and cross discharge, or with limitation on B and discharge in A, in four pressure regulation ranges. This valve is used as a hydraulic circuit pressure limiting device or as a limiting device of the pressure peaks generated during the movement of hydraulic actuators. It is supplied with a hexagonal head adjustment screw, locking nut and limitation of the maximum adjustment travel.

Key Features

• Valve Type is Direct Operated Pressure Relief Valve • Mounting Interface is ISO 4401-03 • Adjustment Types is Hex screw / Knob • Max Operating Pressure is 350 bar • Flow Rate is Controlled: 50 l/min, Free: 75 l/min • Temperature Range is -20°C to +80°C

Downloads

Datasheet_PRM3.pdf

pdf
Download

Specifications

Valve Type
Direct Operated Pressure Relief Valve
Mounting Interface
ISO 4401-03
Adjustment Types
Hex screw / Knob
Max Operating Pressure
350 bar
Flow Rate
Controlled: 50 l/min, Free: 75 l/min
Temperature Range
-20°C to +80°C
Viscosity Range
10 to 400 cSt
Contamination Class
ISO 4406:1999 20/18/15
Weight
1.3–1.8 kg
Seals
NBR / FPM
Adjustment Ranges
25 to 350 bar
Series
10
