Duplomatic Direct Operated Pressure Relief Valve, Type PRM2

Brand :
Duplomatic

Duplomatic Direct Operated Pressure Relief Valve, Type PRM2 - Direct operated pressure relief valve

View all
Quantity
Description
Specifications
Downloads
Related products

Description

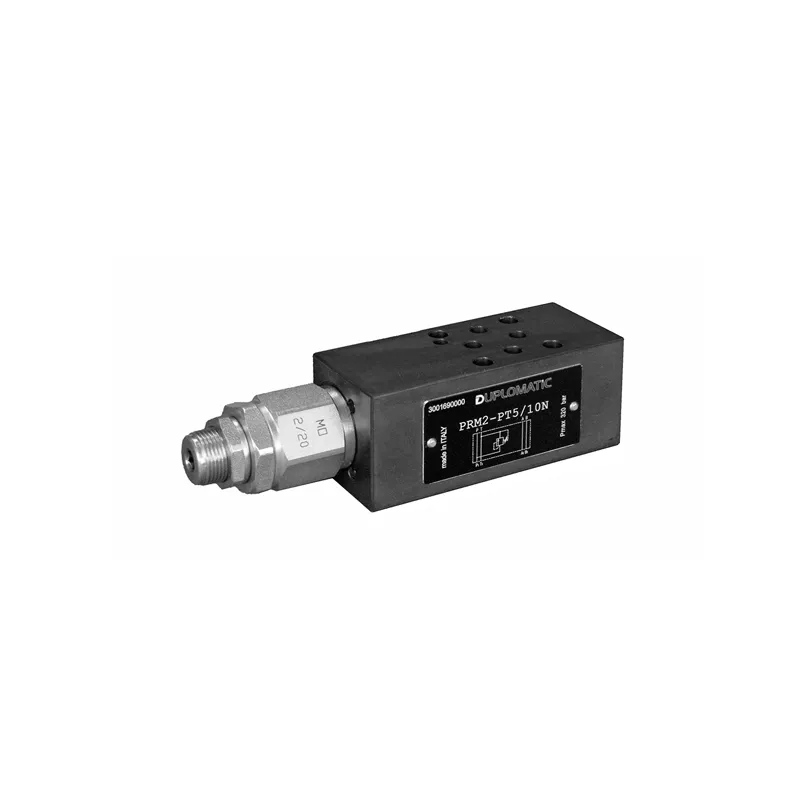

The PRM2 valve is a direct operated pressure relief valve, stackable. It is available with pressure relief on port P or B or on both the working ports, with discharge in T, all with three different pressure adjustment ranges. This valve is used as a pressure limiter of the hydraulic circuit device or as a limiting device of the pressure peaks generated during the movement of hydraulic actuators. It is supplied with screw adjustment with hexagon socket and locking nut.

Key Features

• Valve Type is Direct Operated Pressure Relief Valve • Mounting Type is Subplate Mounting • Standard is ISO 4401-02 (CETOP 3) • Max Operating Pressure is 350 bar • Flow Rate is 20 l/min • Adjustment Ranges is 25, 70, 140, 210, 350 bar

Downloads

Datasheet_PRM2.pdf

pdf
Download

Specifications

Valve Type
Direct Operated Pressure Relief Valve
Mounting Type
Subplate Mounting
Standard
Meet the requirements of an ISO or DIN Standard
ISO 4401-02 (CETOP 3)
Max Operating Pressure
350 bar
Flow Rate
20 l/min
Adjustment Ranges
25, 70, 140, 210, 350 bar
Temperature Range
-20°C to +80°C
Fluid Viscosity Range
10–400 cSt
Seals
NBR / FPM
Surface Treatment
Phosphated black / optional zinc-nickel
Mass
0.7 kg
Recommended viscosity
25 cSt
