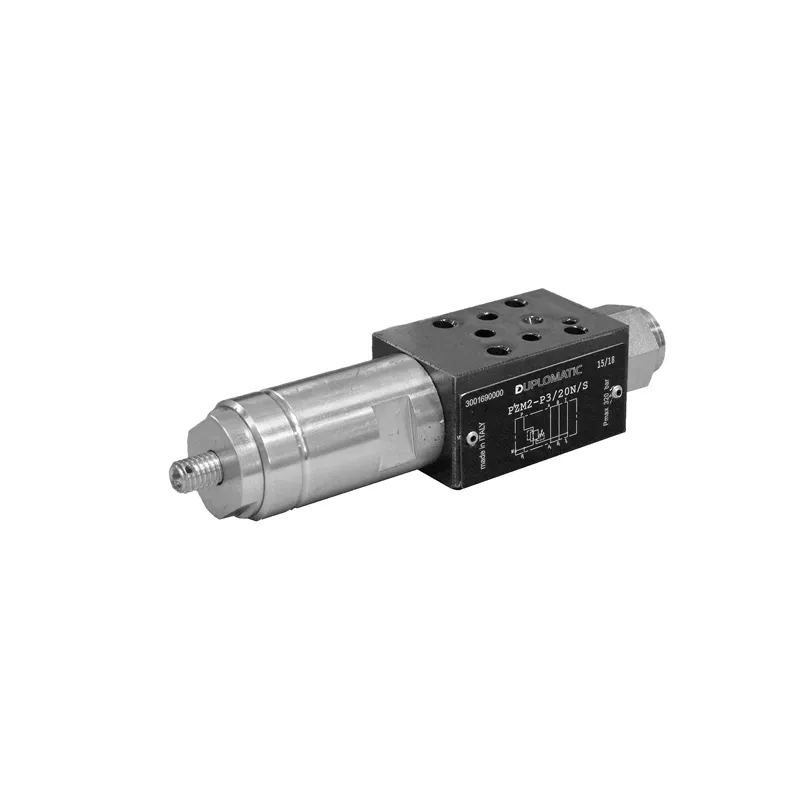

Duplomatic Direct Operated Pressure Reducing Valves, Type PZM2

Brand :
Duplomatic

Duplomatic Direct Operated Pressure Reducing Valves, Type PZM2 - Direct operated pressure reducing valves

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The PZM2 is a stackable three-port pressure reducing valve, direct operated. PZM2 is a normally open valve. Hydraulic fluid flows freely inside the pressure conduit. When the inlet pressure exceeds the value set with the adjustment screw, the valve discharges just the excess. It is used to reduce the pressure on secondary circuit branches ensuring the stability of the regulated pressure even when the flow rate passing through the valve varies. The three-way design provides protection of the secondary circuit from pressure surges since it allows a reverse flow from the actuator to the T discharge line.

Key Features

• Valve Type is Pilot Operated Pressure Reducing Valve • Mounting Type is Subplate Mounting • Standard is ISO 4401-02 (CETOP 3) • Max Operating Pressure is 250 bar • Flow Rate is 20 l/min • Adjustment Range is 25 to 210 bar

Downloads

Datasheet_PZM2.pdf

pdf
Download

Specifications

Valve Type
Pilot Operated Pressure Reducing Valve
Mounting Type
Subplate Mounting
Standard
Meet the requirements of an ISO or DIN Standard
ISO 4401-02 (CETOP 3)
Max Operating Pressure
250 bar
Flow Rate
20 l/min
Adjustment Range
25 to 210 bar
Temperature Range
-20°C to +80°C
Viscosity Range
10 to 400 cSt
Contamination Level
ISO 4406:1999 class 20/18/15
Seals
NBR / FPM
Recommended viscosity
25 cSt
Mass
1.5 kg
