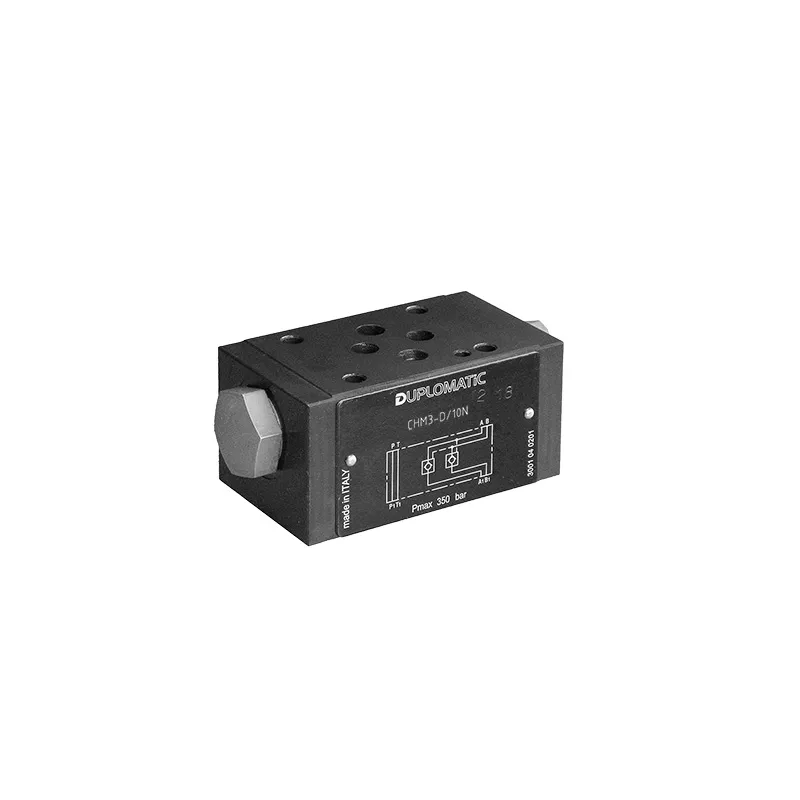

Duplomatic Check Valve, Pilot Operated, Mounting surface is according to the iso, Max flow 50 l/min, Mounting style stackable, Type CHM3
Brand :
![Duplomatic]()
Check valve, pilot operated. This CHM3 is a check valve (spring closing and cone on edge seals) with hydraulic pilot supply.
View all
Description
This CHM3 is a check valve (spring closing and cone on edge seals) with hydraulic pilot supply. The mounting surface is according to the ISO 4401 standards, for stackable mounting. It allows: - to stop the flow in a direction - the free flow in the same direction, when opened by a pilot pressure - to stop the flow in the opposite direction Perfect for industrial applications, this CHM3 valve is the ideal choice to provide flow control, preventing fluid backflow and protecting the system from unwanted backflow.
Key Features
• Valve type is Double Pilot Operated Check Valve • Series is DFP • Mounting is ISO 4401-03 Subplate Mounting • Flow direction is Flow in one direction, blocks reverse • Pressure release is External pilot pressure opens the valve • Max operating pressure is 320 barDownloads
Specifications
