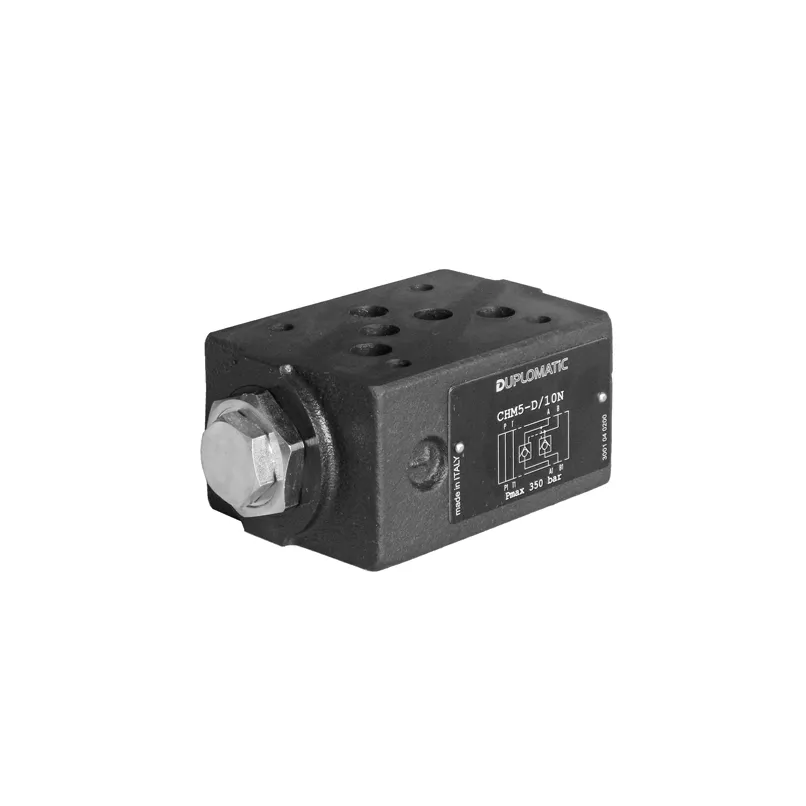

Duplomatic Check Valve, Pilot Operated, Max flow 120 l/min, Mounting style stackable, Type CHM5
Brand :
![Duplomatic]()
Check valve, pilot operated. The CHM5 valve is a pilot-operated non-return valve with spring closing with cone on edge seals, in which pilot pressure allows free flow in both directions.
View all
Description
The CHM5 valve is a pilot-operated non-return valve with spring closing with cone on edge seals, in which pilot pressure allows free flow in both directions. Stackable design.
Key Features
• Valve type is Double Pilot Operated Check Valve • Series is DFP • Mounting is ISO 4401-03 Subplate Mounting • Flow direction is Flow in one direction, blocks reverse • Pressure release is External pilot pressure opens the valve • Max operating pressure is 320 barDownloads
Specifications
