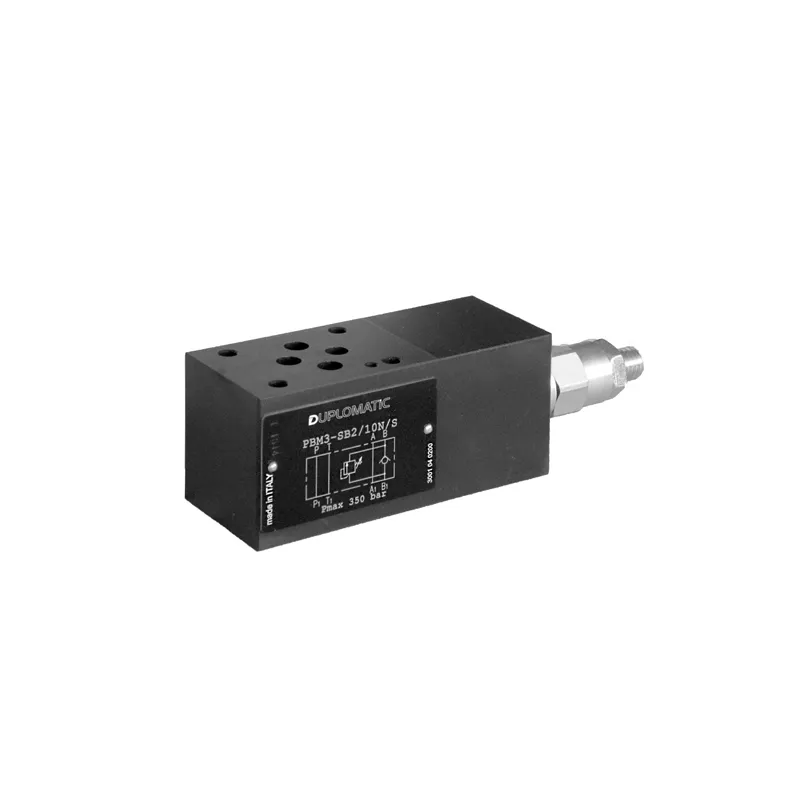

Duplomatic Backpressure Valve, Type PBM3

Brand :
Duplomatic

Duplomatic Backpressure Valve, Type PBM3 - Backpressure valve

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The PBM3 is a direct operated three-way pressure valve, stackable. It adjusts the backpressure coming from the actuator (B line), allowing the reverse free flow. It is used on upright mounted cylinders where the counterbalance of a load weighting on the cylinder rod is needed.

Key Features

• Valve Type is Backpressure Valve • Mounting Type is Subplate • Operating Pressure is 350 bar • Flow Rate is 80 l/min • Ambient Temp is -20°C to +60°C • Fluid Temp is -20°C to +80°C

Downloads

Datasheet_PBM3.pdf

pdf
Download

Specifications

Valve Type
Backpressure Valve
Mounting Type
Subplate
Operating pressure
350 bar
Flow Rate
80 l/min
Ambient Temp
-20°C to +60°C
Fluid Temp
-20°C to +80°C
Fluid Viscosity
10–400 cSt
Adjustment Type
Knob / Hex Screw
Weight
Approx. 2.2 kg
Contamination Class
ISO 4406 20/18/15
Mounting surface
ISO 5781
Recommended viscosity
25 cSt
